[GreenKeys] Model 32 Keyboard/Distributor Linkage question

[Jon Penner]

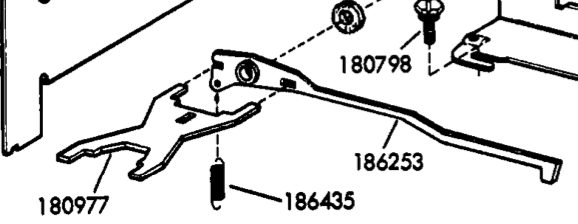

I finally got the M32 from Ft Worth I bought a couple months ago transported home yesterday.I've been learning a lot about it since I don't have any previous experience with this model.It appears I'm missing a piece as the print head was not secured to the base and tipped out during some previous transport.The parts manual refers to it as the H-Plate part 180977.
Is there anything else that supports this part other than the arm coming from the distributor and the keyboard end, 186253?I see a slot on one end, but don't see anything else associated with the slot.Also, if anyone has one of these laying around, I'd be interested in it.
I was able to get it to print the WRU wheel contents, punch some tape and get characters from the keyboard to print if I manually held down the Distributor release down where the keyboard would have.
Happy New Year!JonN5MHI



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20140101/26e62e21/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screen Shot 2014-01-01 at 12.43.57 PM.png
Type: image/png
Size: 49899 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20140101/26e62e21/attachment.png>
