Dismantling question...

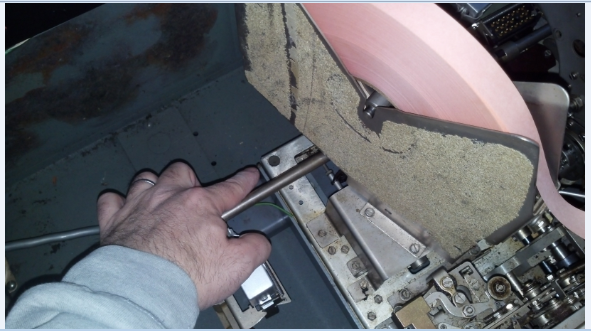

So it seems I will remove the four long, hex-type bolts and remove the entire base plate containing the page printer, keyboard and perforator.  Pointing to one of the places I removed these long hex-type bolts. Am I approaching this dismantlement correctly?

[cid:image002.png at 01CF2729.80FBED10]

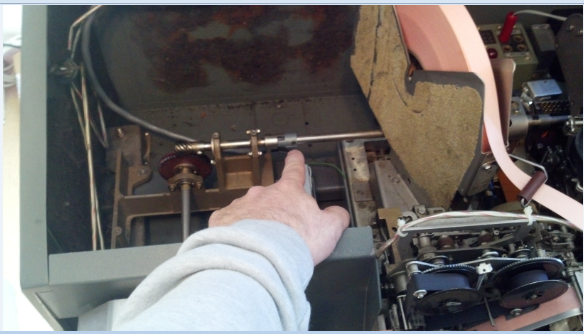

I need to disconnect a shaft (main shaft?) going to the TD. I began to loosen a set screw in the location I am pointing to in the picture.

[cid:image003.png at 01CF2729.80FBED10]

But then I got worried that the relative orientation of this shaft and the TD shaft might be important to keep things sync'd.  Am I worried about nothing? Do I simple disconnect at this flex joint and put it back together later? Or do I need to make sure I know the orientation of this?

Thanks


From: greenkeys-bounces at mailman.qth.net [mailto:greenkeys-bounces at mailman.qth.net] On Behalf Of W2HX
Sent: Monday, February 10, 2014 10:23 PM
To: COURYHOUSE at aol.com; greenkeys at mailman.qth.net
Subject: Re: [GreenKeys] moving a 28 ASR...

Here are the stairs I need to get around.  Too tight for the ASR to stay horizontal. Will have to go vertical..
