Jim,

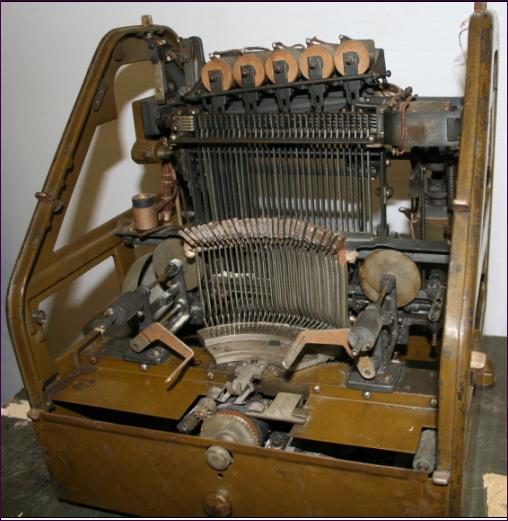

Enclosed is a picture of  our Kleinschmidt Electric 20A.  The tape is
stored in a drawer on the bottom.  As part of the same donation that the
M12s came from, there is at least one unit marked "21-A" I took a quick
look at it (still in its packing box). It looks similar to the KEC 20A,
but there were no side frames and the tape reel was mounted on the
side.  I'll have to take a closer look at these and see about latches on
the selector magnets.

Were the "20-A" and "21-A" WU numbers??

Duncan


On 08-Dec-14 16:04, Jim Haynes wrote:
> I've never seen a Model 20 close up, but the 21A printer does have
> a latching mechanism, so that the electromagnets are operated one at
> a time as the receiving distributor sweeps over its brushes.  The
> magnets themselves don't latch, but they release mechanical latches
> that activate the code bars when the machine is about to print.
>
>
> jhhaynes at earthlink dot net
>



---
