Someone asked on the AWA list why they hadn't heard about the Teletype
Corp Museum donation to the AWA Museum and why it wasn't written up in
the AWA quarterly publication.  This was what I posted on the AWA list
and since it concerns teletypewriters, I thought I would post it here,
too. Also included is a little more information on the M31.

-------- Original Message --------
Subject: 	The Teletype Museum & the AWA Museum (was Model 31 Teletype )
Date: 	Fri, 15 Nov 2013 11:28:16 -0500
From: 	Duncan Brown <duncanancy at earthlink.net>
To: 	antiquewirelessassociation at yahoogroups.com


The Teletype Corp. once had a large (~700 pieces) collection of
prototypes, early models and competitor's products in their R&D
building.  But as often happens in industry, floor space is valuable and
most of the collection had to be boxed up and put into storage. In the
late 1970's, what was left of their museum was also boxed up and put
into storage. By the mid 1980's, the storage area was also needed and it
was decided to get rid of the main collection. (A few of Teletype's
"winners": Models 15, 28, 33, & 40 were saved.)

Teletype Corp. contacted the Smithsonian Museum, thinking that they
would like the collection.  Smithsonian said that they had most of what
they needed, but gave Teletype Corp. the names of other "major" museums,
including the AWA Museum, that might be interested in the collection
artifacts.

Before the Teletype Museum collection had been boxed up, the curator of
the Museum, Ran Slayton, had cataloged the complete collection with a
photograph and description of each item. These were bound into twelve  9
x17" books and are known as the Teletype Museum Books.  When the
collection was to be dispersed in the mid 1980s, copies of these books
were sent out to all the Museums that had expressed interest in taking
parts of the collection, for them to choose what they wanted.

When we unpacked the old AWA Annex library and were setting up the new
AWA library in the AWA Media Building, the AWA's copies of the Teletype
Corp. Museum Books showed up!! (This may be the only set still in
existence.)

I have had our Museum books scanned (thanks, K4OZY), but many of the
photos came out poorly (too dark).  If the image is lightened, then you
cannot read the text.  One of my spare-time projects is to go through
and selectively lighten just the pictures.  Once that is done, the books

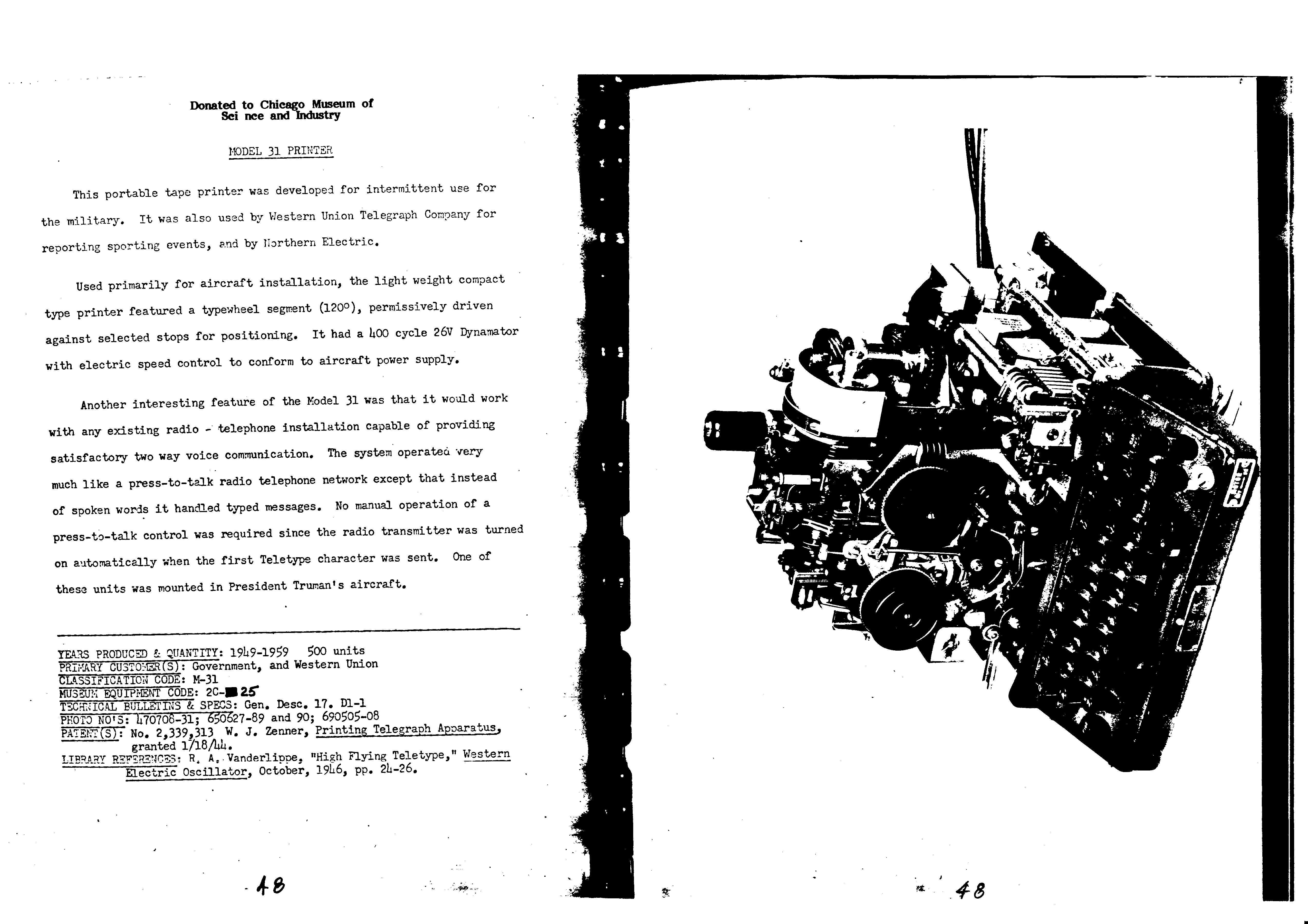

will be put on line. (Hope I can get to it this winter!)  Enclosed is a
scan of a page of the M31 tape printer that we have been discussing
(that photo is pretty good). Although it says it went to the "Chicago
Museum of Science and Industry", this looks like the M31 that we have in
the AWA Museum (with 26L6GT & dynamotor).

The donation to AWA of this equipment happened long before I was a
member of AWA, but I came across some of the artifacts while digging
around in the old Annex when I first started working at the Museum in
2000. I don't know of any literature that was donated (other than the
Museum Books). Items that I have identified as coming from the Teletype
Corp. Museum that are now in the AWA collection:
  Teletype Corp.
     M31 (aka TT-30/AGA-1) tape printer; c 1947
     GPE (aka "iron horse") perforator; c 1930
     M36 (aka "monopulse") keyboard & tape printer; c 1940
     T-61 encryption unit (similar to SIGCUM but with a tape reader);  c
WWII
     various Morse (aka Wheatstone, Kline) tape readers & possibly tape
punches

Kleinschmidt Electric Co.
     Model 20A tape printer; c 1920
     (this printer uses the now standard 5-bit code, but in _parallel_.
There is no motor. Instead, there are five solenoids that read and store
the data, and then another solenoid that initiates the print function.
The early 1900s teleprinters all operated in parallel with individual
address lines. This is why the M14 tape readers had a big "distributor"
and were know as "transmitter-distributors" or "TDs". The tape holes
(bits) were read in parallel and the distributor did the parallel to
serial conversion.  Today's computer architecture still uses this system
of a parallel data bus and a "chip select" line to tell which device
should read the data on the bus at that time.)

The Teletype Corp. M31 & GPE and the KEC M20A are now on display in the
new AWA Museum.

I can't tell you why there was not an AWA OTB/Journal article about the
donation from Teletype Corp. back in the 1980s, but this email will have
to suffice!

Have fun,
Duncan Brown, K2OEQ
USASA  31J

Antique Wireless Association Museum Asst. Curator, Commercial Equipment
(also Chief TTY operator & repairman)
