[GreenKeys] M31 / AN/AGA-1 (was Newly-discovered resource)

[Duncan Brown]

Ed,

I have been looking for information on the AN/AGA-1 control/TU box for
5-10 years.  Have never seen one and rarely seen any mention of it.  The
military nomenclature for it was TT-31/AGA-1.  I will send you a one
page military AN/AGA-1 description I found on the Internet (and to
anyone else interested).  This description is dated 1958 and is a little
different from the Tele-Tech article in that it uses octal tubes and the
tones are 2275/2475 cps.

The Feb 1947 Tele-Tech article was probably written about an early
version, as the M31 manual (Bulletin 200) is dated Sep. 1947 and the
military cover sheet is dated Oct 1952.

Duncan

On 13-Nov-13 22:44, COURYHOUSE at aol.com wrote:
> ok... Duncan, Jim and  others ....this is  exact match to out  TTY..
> same  case... .no lights on the  front. as  in the   other  airborne
> one  with the   24 volt motor/dynamotor as the unit  at the AWA
> collection
> there seems to be  three versions of these...  31s
> 1- the mil  one with mil plates and lights on the   front of the
> cabinet, 24 volt motor/dynamotor  and 25L6 regulator/rect.  tube to
> make  loop current. ( AWA version)
> 2-  Black one like this  ac motor and  no lights in front ( This is
> SMECC version as in photo))
> 3-  Green  fold up western union case  for portable and press use
> (SMECC has  one of these)

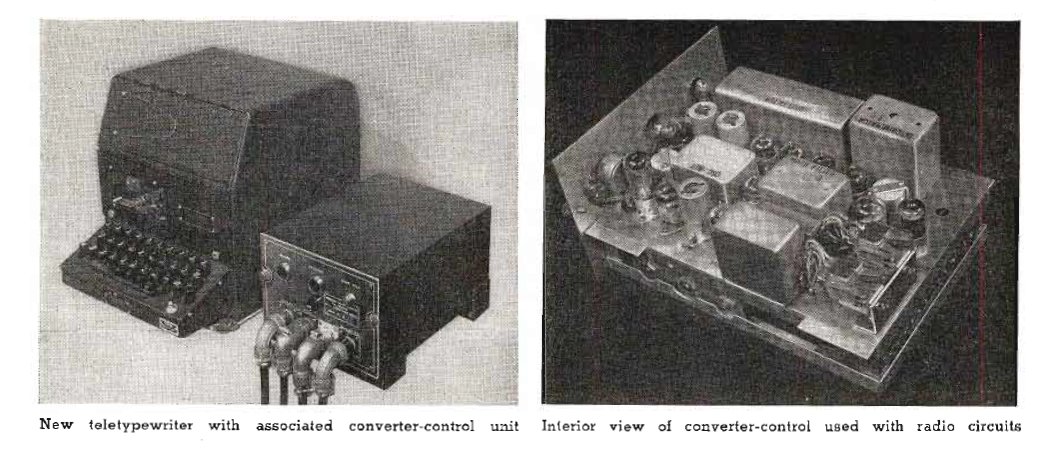

> ok here is the   new  found photo... this is   cool ( thanks  Jim)
> We would love to find this control box  to pair up  with our  unit.....
> little tty  is almost like a toy tom thumb cash resister....
> WE NOW NEED THE CONTROL BOX!!!!!!!! has anyone seen one?
> Drop me a note  Ed Sharpe Archivist For SMECC www.smecc.org
> <http://www.smecc.org>
> In a message dated 11/13/2013 7:34:06 P.M. US Mountain Standard Time,
> COURYHOUSE at aol.com writes:
>
>     I have may issues of this  magazine ..   flipped though many  of
>     them  not sure if  I have this    but I am going to see   if I
>     have this  one  and scan it at  hi  res.
>     this is  really  cool!!!!!!!!!Ed#
>     In a message dated 11/13/2013 7:04:26 P.M. US Mountain Standard
>     Time, duncanancy at earthlink.net writes:
>
>         Thanks, Jim!
>
>         Looks interesting, especially the M31 article.
>
>         The site has a lot of other magazines scanned in, mostly those
>         covering
>         radio & TV broadcast.  Lots of history there!!
>
>         Duncan
>
>         On 13-Nov-13 20:11, Jim Haynes wrote:
>         > New to me, anyway
>         >
>         >
>         http://www.americanradiohistory.com/Tele_Tech_Master_Page_Guide.htm
>         >
>         > has a bunch of issues of Tele-Tech magazine scanned, and
>         they are
>         > searchable.  For instance, searching on teletype, you gt
>         among other
>         > things a reference to the February 1947 issue with an
>         article about
>         > the Model 31 printer and an FSK modem used with it.
>         >
>         > jhhaynes at earthlink dot net
