[GreenKeys] ASR33 punch reader control line

[COURYHOUSE at aol.com]

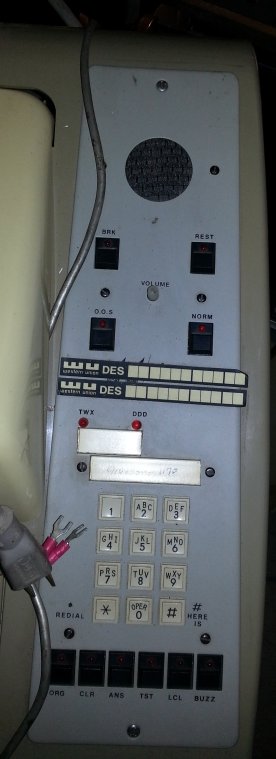

folks  it says  twx on modem... but  also says   ddd    so I assume it is!?
 not a telex? even though it has   western union   stuff on it!?  runs...
keyboard a little   sluggish   but  will not  carriage return  but   does
line    feed.  (  go I guess I need a  service  hint for the no return)  I
have not  even popped  the  case  yet.

what is the interface between the modem and  the   tty?   current  loop or!?

I need to  find the  metal trim strip and a knob  for  the     front of the
beast.

all the years of  working  with these  in the old   times   i never had any
twx. or telex ones... they  all  came  off computers...

we have  3  rooms  of  new  displays...  so   the   maint.on machine  stuff
is  stacking  up!   have this one  the 28 stuck keyboard and the   other
28  that  linefeeds all the time!  argh!


thanks  for any and all  elp  guys


ed#

In a message dated 5/12/2013 12:54:00 P.M. Mountain Standard Time,
teletypeparts at aol.com writes:

Later model TWX would be converted to ASCII 33 with a UCC-6, some  cover
parts and a tape reader solonoid in the printer change.  TWX soloid  is 48
VAC.  Needs 120 VAC or you will get smoke.

Wayne



-----Original  Message-----
From: Lester Veenstra <lester at veenstras.com>
To: 'Jim  Haynes' <jhhaynes at earthlink.net>; 'Teletypeparts'
<teletypeparts at aol.com>
Cc: greenkeys  <greenkeys at mailman.qth.net>
Sent: Sun, May 12, 2013 12:36  pm
Subject: RE: [GreenKeys] ASR33 punch reader control line


Well you can convert a TWX to Baudot so they are not that worthless HI

 Lester B Veenstra  MØYCM K1YCM W8YCM
 _lester at veenstras.com_ (mailto:lester at veenstras.com)

 US Postal Address:
 5 Shrine Club Drive
 HC84 Box 89C
 Keyser WV 26726
 GPS: 39.33675 N  78.9823527 W (Google)
 GPS: 39.33682 N  78.9023741 W (GPSDO)


 Telephones:
 Home:                     +1-304-289-6057
 US cell                    +1-304-790-9192
 UK cell                    +44-(0)7849-248-749
 Guam Cell:              +1-671-929-8141
 Jamaica:                 +1-876-456-8898

 This e-mail and any documents attached hereto contain confidential or
 privileged information. The information is intended to be for use only by
the
 individual or entity to whom they are addressed. If you are not the
intended
 recipient or the person responsible for delivering the e-mail to the
intended
 recipient, be aware that any disclosure, copying, distribution or use of
the
 contents of this e-mail or any documents attached hereto is prohibited.


 -----Original Message-----
 From: Jim Haynes [_mailto:jhhaynes at earthlink.net_
(mailto:jhhaynes at earthlink.net?) ]
 Sent: Thursday, May 09, 2013 12:16 AM
 To: Teletypeparts
 Cc: _lester at veenstras.com_ (mailto:lester at veenstras.com) ;
_greenkeys at mailman.qth.net_ (mailto:greenkeys at mailman.qth.net)
 Subject: Re: [GreenKeys] ASR33 punch reader control line

 On Wed, 8 May 2013, Teletypeparts wrote:

 > Lester,
 >
 > You are correct.  Normally the 33 ASR tape reader works in Line mode
 > the same as Local mode.    I have been removing the DEC reader control
 > card for most all of my restored 33's until recently when quite a few
 > people were asking for that option.
 Yeah, when you find a 33 ASR on ebay, if it has the DEC computer mod
installed,
 those go for big bucks to people who are trying to restore old DEC
computers.
 The TWX models, on the other hand, are almost worthless in terms of $.
