[GreenKeys] Measured snubber effect.

[Jeffrey D Angus]

Ok, having fixed the other problem with the Lorenz, I ran a 60'
pair from the Lorenz back to the bench in the back of the shop
where the PC and the level converter are hiding.

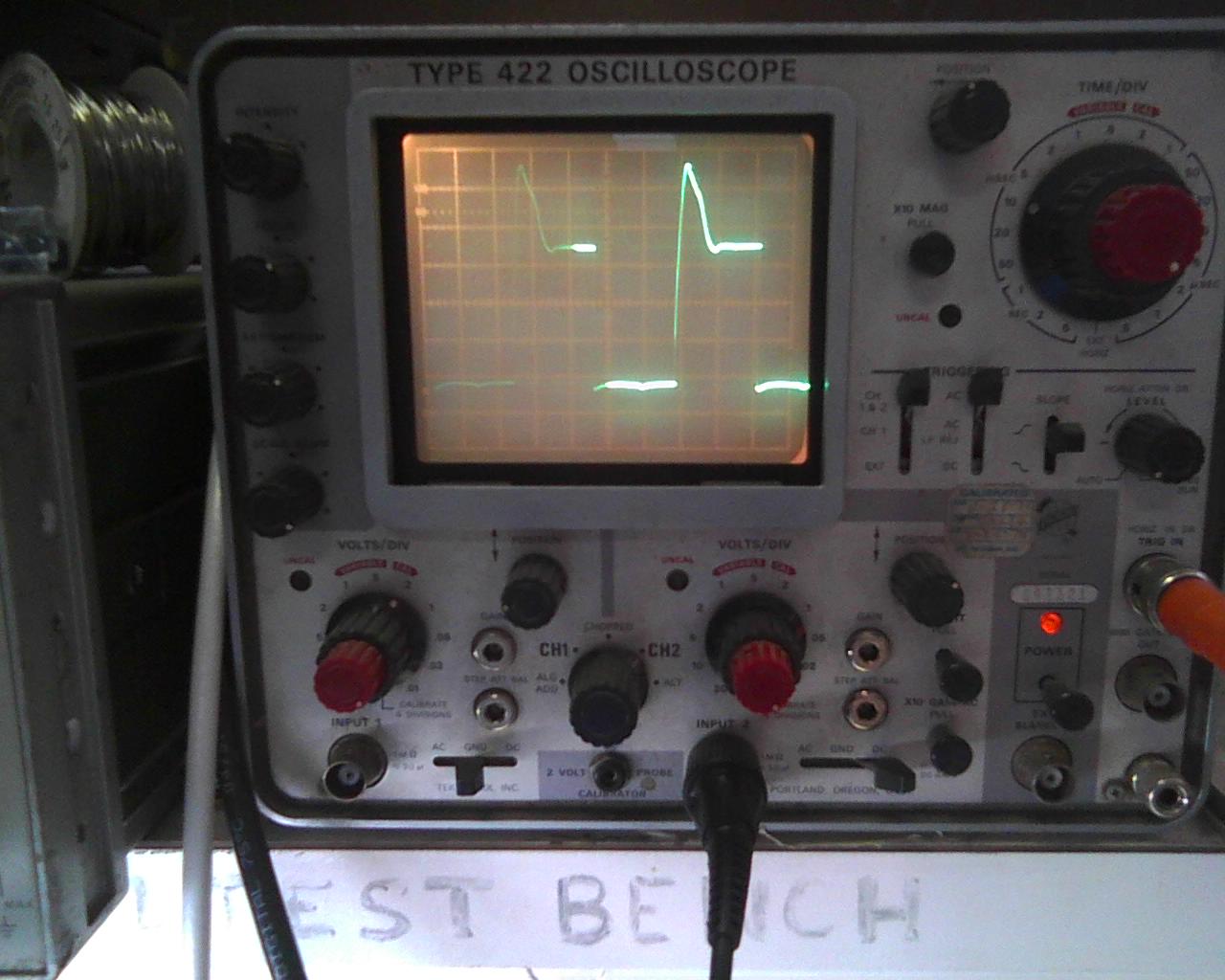

I put the Tek Scope across the MOS-Fet keyer and took a (bad)
picture of the scope display.

50 v/div vertical and 10 mS/div horizontal.

Looks like 110 volt over shoot with a duration of 10 mS.

Time to fiddle with the values a bit, but overall, I'm pleased
with the results. Although not necessarily impressed with the
quality of the pictures taken with the cell phone.

Jeff-1.0
wa6fwi

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Lorenz Snubber.3gp
Type: video/3gpp
Size: 577460 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20130726/a9380f89/attachment-0001.3gp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Lorenz Snubber.jpg
Type: image/jpeg
Size: 135063 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20130726/a9380f89/attachment-0001.jpg>
