[GreenKeys] M19 (was RPE28 Reperforator)

[Duncan Brown]

There should be mechanical linkages from the keyboard to the punch.

Duncan

On 15-Dec-13 13:28, COURYHOUSE at aol.com wrote:
> ok  our  puncher thing is  sort of dangling...   the attached casting
> has  been repaired once and I can see how I can  reattach it.. but
> what  selects  the  punch codes?  there is  just  some  wires  going
> to the puncher thing so assume the solenoid  but  others have said
> something about  rods?! what am I missing ?
> In a message dated 12/15/2013 11:25:05 A.M. Mountain Standard Time,
> duncanancy at earthlink.net writes:
>
>
>
>     I don't know if the character counter was an option, or just that
>     the early models (like the one below) didn't have a counter.  You
>     see some M19s with the counter on the right side.  But generally
>     the counter is on the left side, in front of the perforator
>     punch.  The punch solenoid needs about 1 amp at 120VDC.
>
>     The M19 that we have at the AWA Museum is a military version,
>     TT-7/TG and it has the dial on the left. There is also a 5-10 Watt
>     lamp behind the counter that comes on to let you know you have
>     reached the end of the line.  The M19 could be set to allow the
>     receiving a of message on the printer while at the same time, the
>     operator was punching a tape.
>
>     Duncan
>     K2OEQ
>
>     On 15-Dec-13 12:49, COURYHOUSE at aol.com wrote:
>>     ok! now  I see what  you are  getting  at..
>>     There is one other thing   I need on model 19s
>>     the one we have has  the puncher thing on the left    of the
>>     model 15   part of   the unit  this seems  to have  some coils
>>     that  drive it...  but there is no clock  face indicator  that
>>     shows   # of  characters....
>>     In a message dated 12/15/2013 10:26:31 A.M. Mountain Standard
>>     Time, duncanancy at earthlink.net writes:
>>
>>
>>

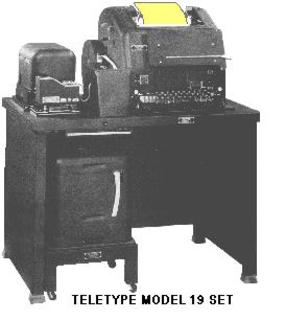

>>         The M19 was available with a (non-typing) reperforator that
>>         sat on a small dolly under the TD:
>>
>>
>
>
>
>     ------------------------------------------------------------------------
