[GreenKeys] RPE28 Reperforator

[Duncan Brown]

"Real teletypewriter operators don't need the message printed on the
tape, they can read the hole patterns!"

Roy,

I assume you are talking about the "Single Magnet" reperforator
(Bulletin 147).


It only perforates the tape, there is no typing.  The typing function
was probably not considered necessary for the designed application
(message relay/storage) and it simplified the design considerably.  This
was probably the first serial reperforator that Teletype Corp made.  The
"Single Magnet" name was to differentiate between the earlier, multiple
magnet units, that were multiplexed using parallel transmissions.

I have also seen a picture of the more "Standard" M14 type basket typing
reperforator mounted in the same domed cover  for use with the M19.
Later the M14 was mounted on a shelf above the TD.

I have never seen or heard of anything that would read a tape and then
type on it.  If you needed a typed copy of a tape, you just put it into
the TD and had it type out on a printer.  Otherwise, you just read the
hole patterns.  In the Army, all the TTY operators learned how to read
the tapes. (As a TTY repairman, I only learned a few of the patterns,
such as RY, LTRS, Figs, CR, LF, etc.)

Have fun,

Duncan
K2OEQ

On 14-Dec-13 22:58, Roy Morgan wrote:
> Greenkeyers,
>

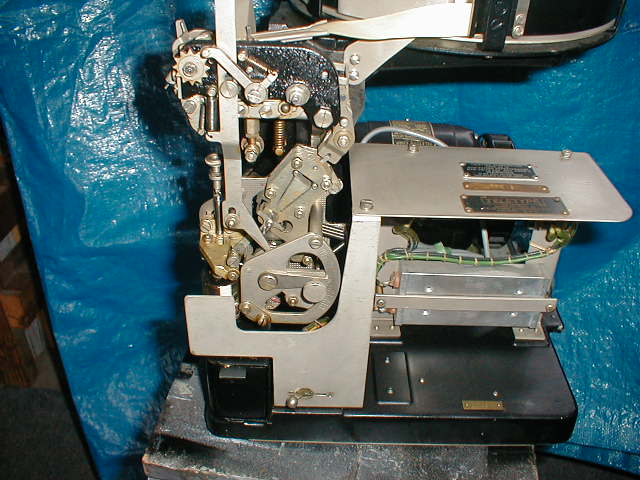

> While unearthing my storage unit, I have found an RPE28 reperforator.  This is the one that lived in a tall square case on a little caster roll-around dolly under the Model 19 table.
>
> I have not found the case - does anyone have one?
>
> My first look showed that it does not type the letters onto the tape as the Model 14 typing reperforator does.  Is this right?
>
> Just wondering - is/was there a machine that reads a perforated tape and types the letters onto it?
>
> Roy
>
> Roy Morgan
> RoyMorgan at alum.mit.edu
> K1LKY Since 1958
>
