[GreenKeys] Fwd: GPLX MK2 amtor interface - looking for molex pin designations

[Olaf DL8OBH]

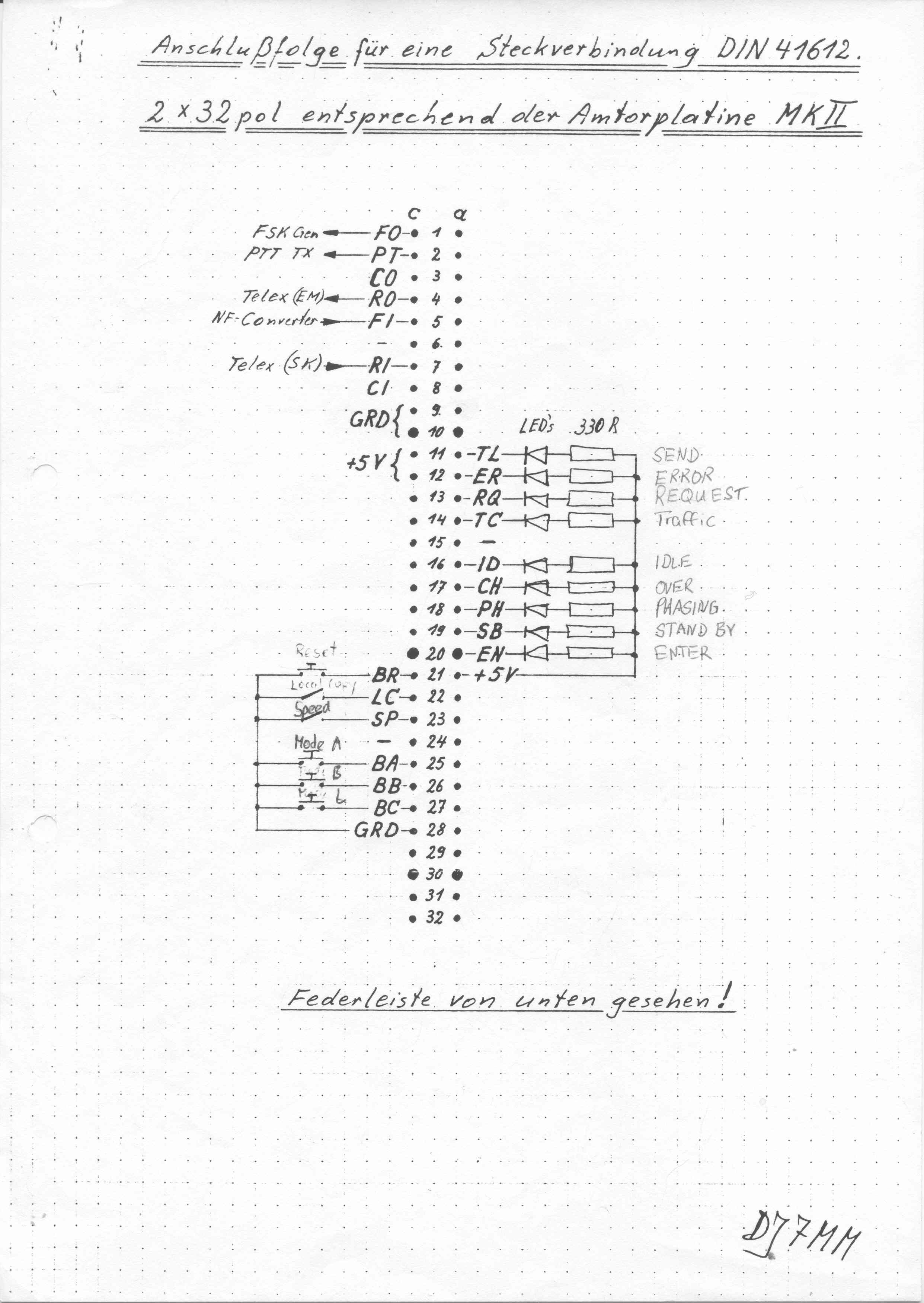

Hello Jan, maybe this helps:




Have fun !!!
Olaf  DL8OBH / AF0A


Am 08.12.2013 14:34, schrieb pa3abk:
>
>
>
>
>
> Hello,
>
> Maybe some of the groupmembers ever experimented with interfacing a
> common teleprinter with the G3PLX Amtor MK2 board.
>
> I still have this PCB at hand, and intend to restore it's initial use,
> interfacing with a baudot terminal.
>
> However over the years I lost the manual which comes with it.
>
> I'm missing the most critical data: the Molex plugs connections.
>
> Anyone have these still filed somewhere?
>
> Thanks in advance/Kind regards,
>
> Jan -  pa3abk
>
