hi all,

we made 2 tone measurements of my KX3 and compared it with my FT-817.
There was one unexpected result with the KX3, and I would like to ask the group if this is
already known or looks like a problem with my KX3.

The IM3 peak is lower than the IM5 peak and it is asymmetric.

The first picture shows the KX3 alone with no PA:
http//oe9fwv.dyndns.org/oe9fwv/KX3/kx3_alone.gif

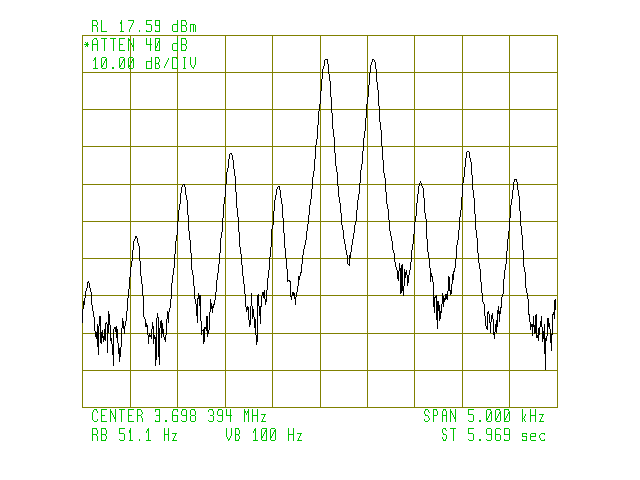

The second picture shows the KX3 connected to the Hardrock50 PA:
http://oe9fwv.dyndns.org/oe9fwv/KX3/kx3_HR50.gif

any comments on this phenomenon would be appreciated.

73! de Werner OE9FWV


--
