[Elecraft] KX3 PSK

[John Griswold]

Peter, VK4JD, wrote to suggest it was the stereo effects control, which
was set to delay. I changed it to Off and voila!

Although I plan to get parts for an audio isolator anyway.

Thanks Peter!
Thanks Don!


On 3/1/2013 7:34 PM, Don Wilhelm wrote:
> John,
>
> Are you using isolation transformers (galvanic isolators) between the
> KX3 and the sound card?
> That may help.  The alternative to galvanic isolators is to tie the
> grounds of both the KX3 and the computer together with heavy wire (or
> copper braid)  Be certain that the power supply to the KX3 is included
> in this bonding - the bonding should be from each device to a single
> point ground.
>
> Yes, I know that laptops with plastic cases are difficult to find a
> good place to connect the bonding strap - in that case, the galvanic
> isolation is the easiest solution.
>
> 73,
> Don W3FPR
>
> On 3/1/2013 7:17 PM, John Griswold wrote:

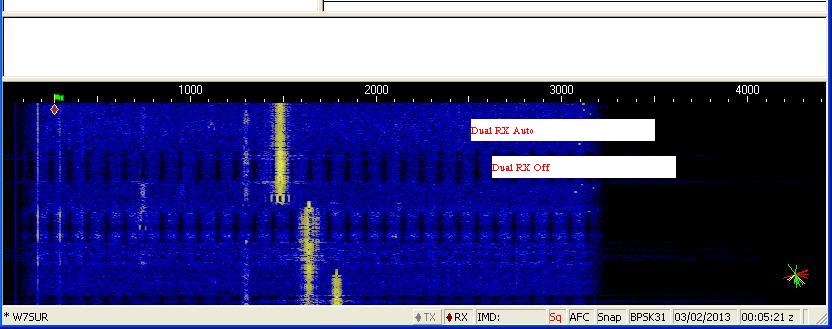

>> I am using DigiPan to play PSK31 with my KX3. In the DigiPan
>> waterfall, it looks as though someone has dragged a comb through it,
>> with trace alternating with dark space showing no signal. I went
>> through the menu changes I had made, and when I toggle between Dual
>> RX Off and Auto, the PSK display changes. I have posted a picture
>> http://www.kk1x.net/photos/psk.jpg for those interested.
>>
>> I'm curious to know why this is - now that I know why it happens, I'm
>> pleased, but I wonder if anybody on the list could explain it to me.
>>
>> Thanks & 72,
>> John KK1X
>>
>
>

--
+---------------------+
