[CW] Fiber Spacer for old 1925 Vibroplex Original

[D.J.J. Ring, Jr.]

Thanks Bob,

Wonders, at least a part is available.

Thanks,
David N1EA

On Sat, Oct 14, 2023, 7:46 PM Bob L. <bobhome at pacbell.net> wrote:

> Steve… McMaster… The source of all good things mechanical!
>
>
>
> This McMaster part looks like an exact fit…  McMaster part number:
> 91145A151    Details below… but first… Vibroplex part numbers…
>
>
>

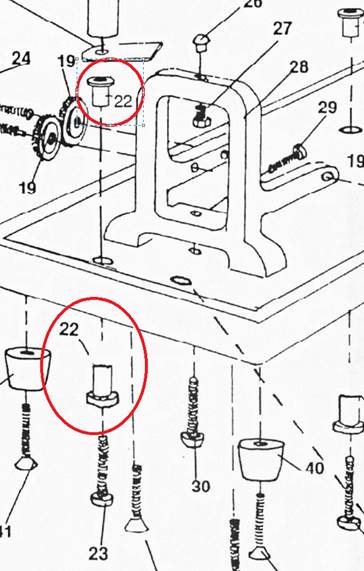

> Vibroplex lists the shoulder washer on their site… Nylon insulator part
> 8035. Machine drawing shows two shoulder washers with one on the top and
> one on the bottom? Each 0.25” or less?
>
>
>
> Worth asking Steve at Vibroplex? Won’t be the first time a part is listed,
> but no longer available.
>
>
>
>
>
>
>
>
>
>
>
>
>
> *Now the McMaster part number:  91145A151*
>
>
>
> $13.39/100 plus tax and shipping. Ouch! What to do with 99 extra parts?
>
>
>
> I took measurements off a friend’s 1966 Original and compared the McMaster
> part against the measurements:
>
>
>
>
>
>
>
>
>
>
> https://www.mcmaster.com/mvZ/Library/M3/20221202/E56472BA/91145A151_Electrical-Insulating%20Nylon%206-6%20Sleeve%20Washer.PDF
>
>
>
>
>
> I hope some of this helps!
>
>
>
> 73
>
> Bob WO6W
>
>
>
> *From:* D.J.J. Ring, Jr. [mailto:n1ea at arrl.net]
> *Sent:* Saturday, October 14, 2023 8:40 AM
> *To:* sbjohnston at aol.com; CW Reflector <cw at mailman.qth.net>
> *Subject:* Re: [CW] Fiber Spacer for old 1925 Vibroplex Original
>
>
>
> That's it.
>
>
>
> Give WWVH man a steak of his choice on me with one of those fancy
> pineapple drinks with a paper umbrella for the tropical midday deluge.
>
>
>
> 73
>
> DR
>
> N1EA
>
>
>
> On Fri, Oct 13, 2023, 9:38 AM sbjohnston--- via CW <cw at mailman.qth.net>
> wrote:
>
> Those are known as "shoulder washers" or "insulating sleeve washers" and I
> see McMaster-Carr has a variety.  Maybe something will fit...
>
>
>
> https://www.mcmaster.com/products/shoulder-washers/
>
>
>
> I notice that Amazon has some too in nylon and fiber...
>
>
>
> https://www.amazon.com/s?k=shoulder+washer+nylon
>
>
>
>
>
> Steve WD8DAS
>
>
>
> sbjohnston at aol.com
>
> http://www.wd8das.net/
>
> http://af4k-crystals.com/
>
> --------------------------------------------------------------------
>
> Radio is your best entertainment value.
>
> --------------------------------------------------------------------
>
>
>
>
>
> ______________________________________________________________
> CW mailing list
> Home: http://mailman.qth.net/mailman/listinfo/cw
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:CW at mailman.qth.net
> CW List ARCHIVES: http://mailman.qth.net/pipermail/cw/
> Unsubcribe send email to
> cw-unsubscribe at mailman.qth.net
> Subscribe send email to cw-subscribe at mailman.qth.net
> Support this email list: http://www.qsl.net/donate.html
>
> =30=
>
>
