[CW] Excellent sideswiper sending from F8GNV

[Rick Dettinger]

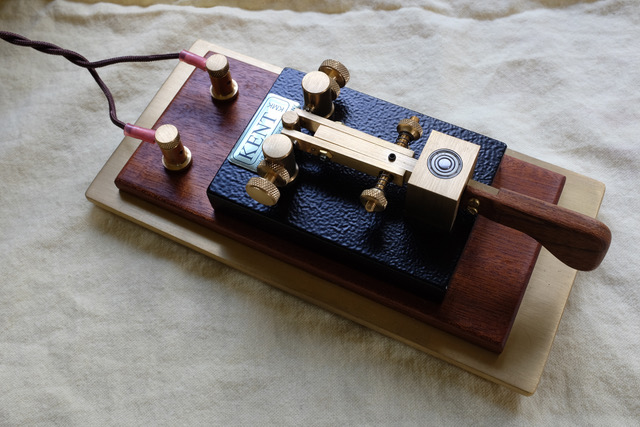

I mounted my Kent single lever paddle on a 6mm brass plate with a wood spacer cut away for the wiring between.  I prefer terminal posts rather than a captive cable, so I purchased them from Kent  Keys.  Finger piece is Teak.  I prefer this key to a leaf spring (saw blade) type key, although I learned with a home-brew saw blade key.
Dot and dash contacts are shorted underneath the key in the spacer.
If I wanted a little spring action, I would put the leaf spring between the lever and the finger piece.
I find it works well as is.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCF4535.jpeg
Type: image/jpeg
Size: 102721 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/cw/attachments/20230714/94373d3e/attachment-0001.jpeg>
-------------- next part --------------



> On Jul 14, 2023, at 8:31 AM, D.J.J. Ring, Jr. <n1ea at arrl.net> wrote:
>
> On Fri, Jul 14, 2023 at 10:42?AM Radio KH6O <radio.kh6o at gmail.com> wrote:
> Is there any reason, other than asthetic, for not using a single-paddle keyer as a sideswiper?
>
> http://vibroplex.com/contents/en-us/d10_VIBROKEYER_single_lever_paddles.html
>
> 73,
> Jeff KH6O
>  Hello Jeff, Aloha!
>
> I use a modified Vibroplex single lever keyer. I found the width of the combination of the button knob and the paddle knob to be too great for comfortable sending in cootie mode, so I had someone make me a single knob with a inset fastener with a special U shaped two prong spanner to tighten it.  Much better, someone on the Internet was selling such a modification but I could not find it right now.  Maybe it's gone.  Maybe Vibroplex will make one.
> http://www.sideswipernet.org/pix/n1ea_vibrokeyer_ssk_1.jpg
>
>
> It's mentioned in my "How to send with a Sideswiper" article on the web.
> https://www.qsl.net/n1ea/sideswiper
>
> There's also a link in that article to a recording from circa 1910 of fast hand key sending which is very interesting.
>
> 73
>
> DR
