[CW] McElroy Chart of Codes and Signals.

[David J. J. Ring, Jr.]

I have on my Internet Archive files a McElroy Chart of Codes and Signals.

JPG file is here:
https://ia803006.us.archive.org/7/items/McElroyChartOfCodesAndSignals/Mc%20Elroy%20chart%20of%20codes%20and%20signals.jpg

Huge High Resolution PDF is here:
https://archive.org/download/McElroyChartOfCodesAndSignals/Mc%20Elroy%20chart%20of%20codes%20and%20signals.pdf

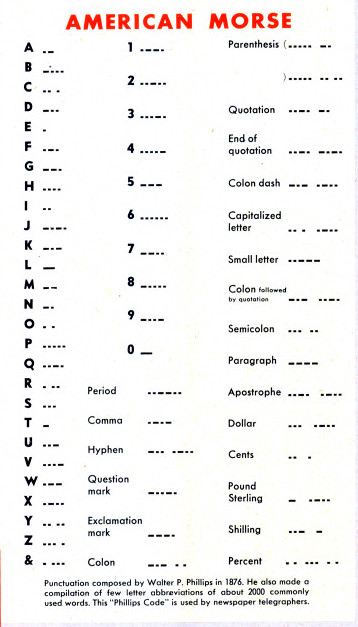

Highlight of the American Morse section:


You will notice $ is SX sent as two letters in American Morse, it sounds
like "SL" in International Morse.

So the sound of the dollar sign was never SX, but SX was what was sent
in American Morse.  That being said, I received a telegram from
Netherlands coast station ScheveningenRadio / PCH and RCA San Francisco
with the operator sending very slowly "SX" for dollar sign - which isn't
even admitted in telegrams in International service.

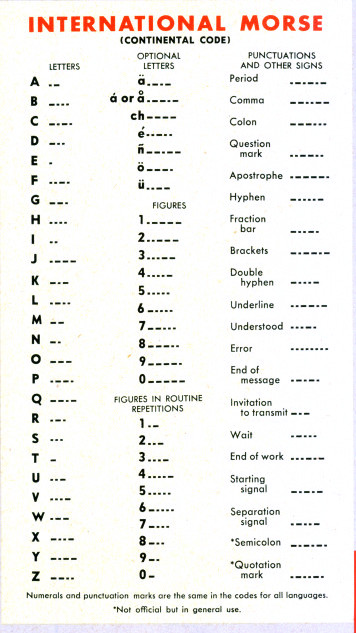

International Punctuation from the same chart - the only thing that has
changed Post WWII is that left parenthesis became KN and right (ending)
stayed the same as KK.


73


DR

N1EA
--

Anyone can join the CW email list or send a email to
cwsubscribe at mailman.qth.net
--  Historic Morse Recordings
-- YouTube channel with Morse recordings.

Life Member ARRL, VWOA  SOWP #3709-M  OOTC #4439 LICW #1212 FISTS #9227
SKCC #587 RadioClubofAmerica
=30=
