[CW] Nice sounding Morse Oscillators

[sbjohnston at aol.com]

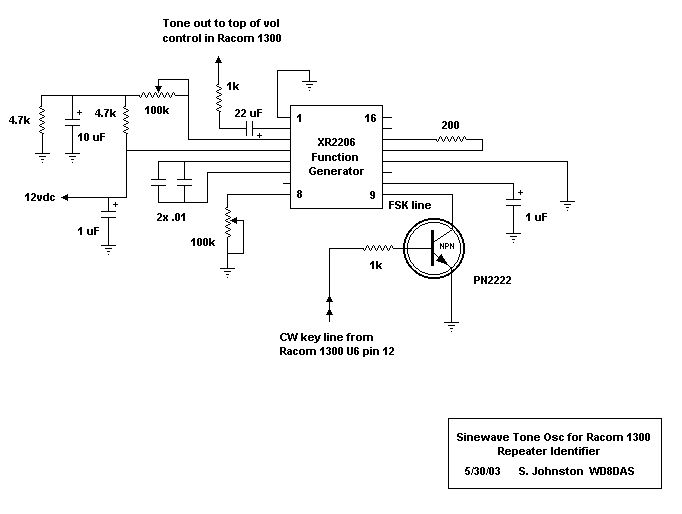

 If someone would like to build a good sounding practice oscillator, have a look at my design for a repeater identifier tone generator.  Schematic here:
http://www.wd8das.net/IDerOsc.jpg
 I've used this circuit to replace the edgy and raw sounding repeater identifier oscillators in my VHF/UHF repeaters.  It could make a very pleasant-sounding practice oscillator if fed to headphones or a amplified (computer) speaker.



Steve WD8DAS

sbjohnston at aol.com
http://www.wd8das.net/http://af4k-crystals.com
--------------------------------------------------------------------
Radio is your best entertainment value.
--------------------------------------------------------------------
