KPH - and K6KPH - transmitters are located at 451 Mesa Rd. in Bolinas,
CA (RCA called this location "BL") a distance of 17.45 miles away from
the KPH / K6KPH receiving site at 17400 Sir Francis Drake Blvd,
Inverness, CA 94937. (RCA called this location "RS") KPH keys multiple
vintage and modern (Henry) transmitters in Bolinas from the receiving
location (RS) by using a telephone line with multiple tones for Morse,
data channels (for SITOR) and two frequencies for the "teletype order
circuit" between RS and BL.

Various photos taken from Google Maps.

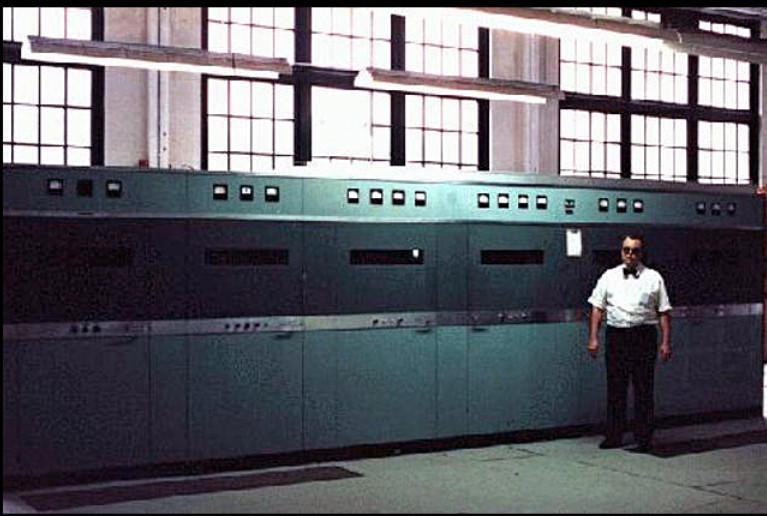

Tracy Reese, WB6TMY / K6CG (Silent Key) with the KPH 10 kW 426/500 kHz
transmitter in Bolinas, CA.  TR was at first an operator at RS (Pt.
Reyes), but transferred to operations at BL (Bolinas).

*TR with RCA BL-10 MF 10 kW TX Building 1, BL.*

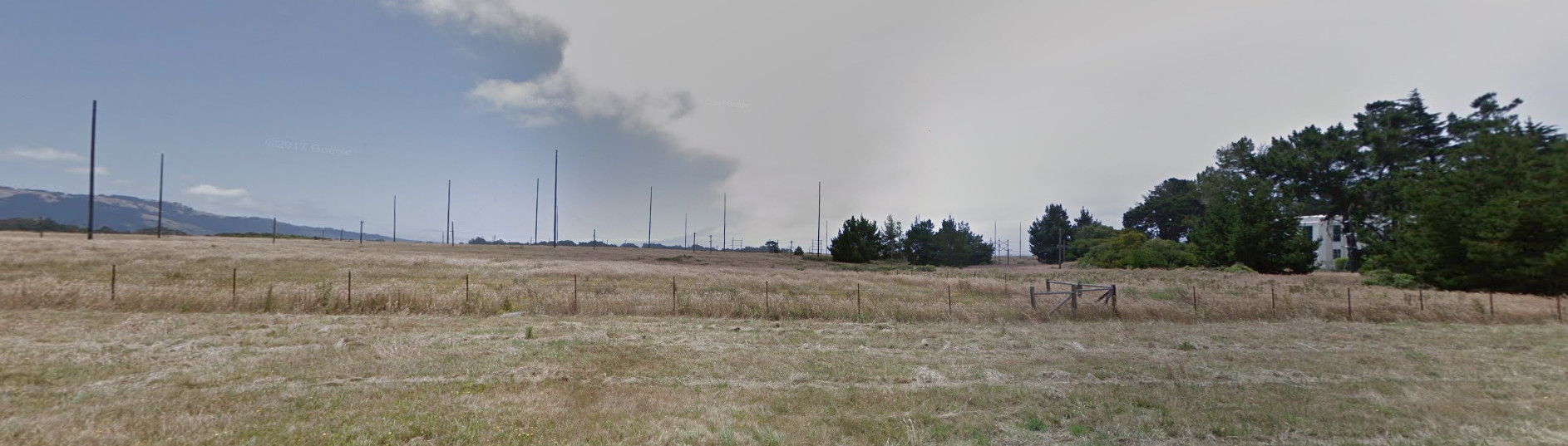

*Panorama of KPH BL antenna field. Bolinas, California.*

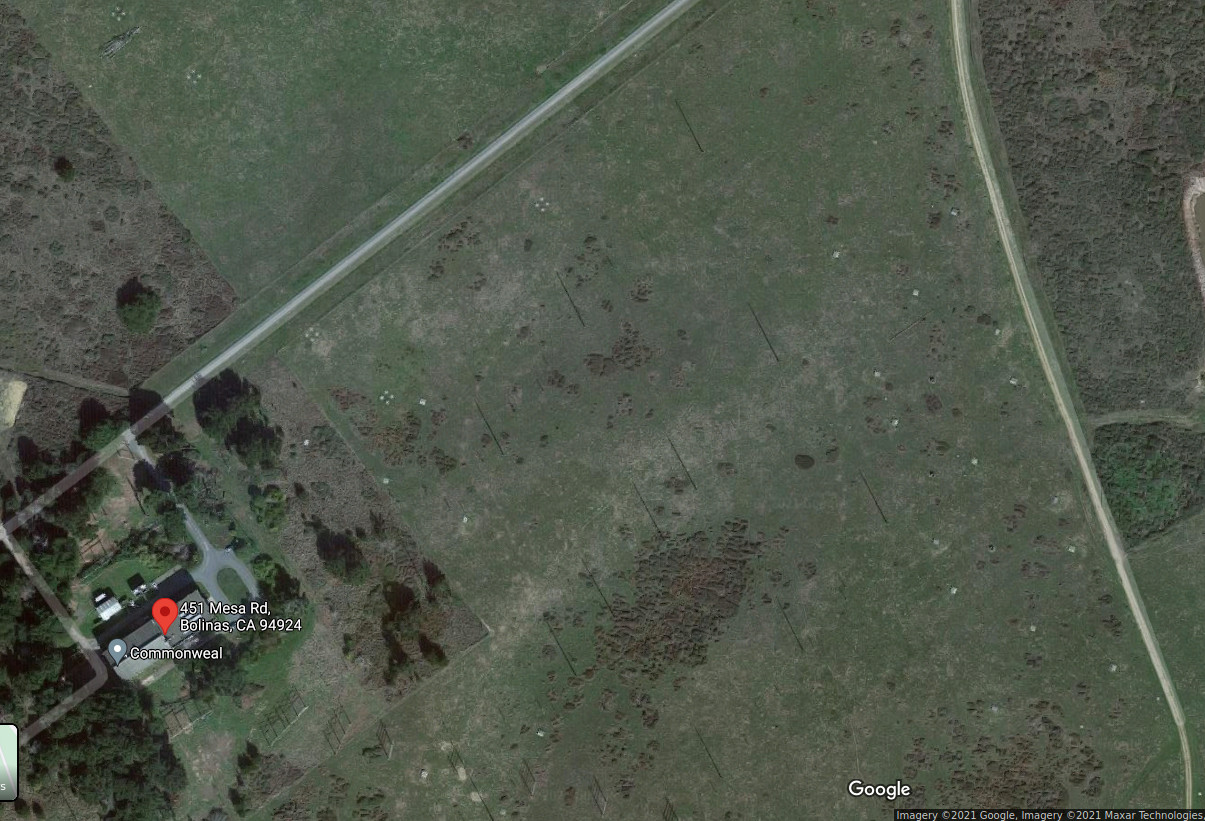

*Aerial View of KPH Bolinas (BL), 451 Mesa Rd, Bolinas, CA and antenna
field from Google Maps*


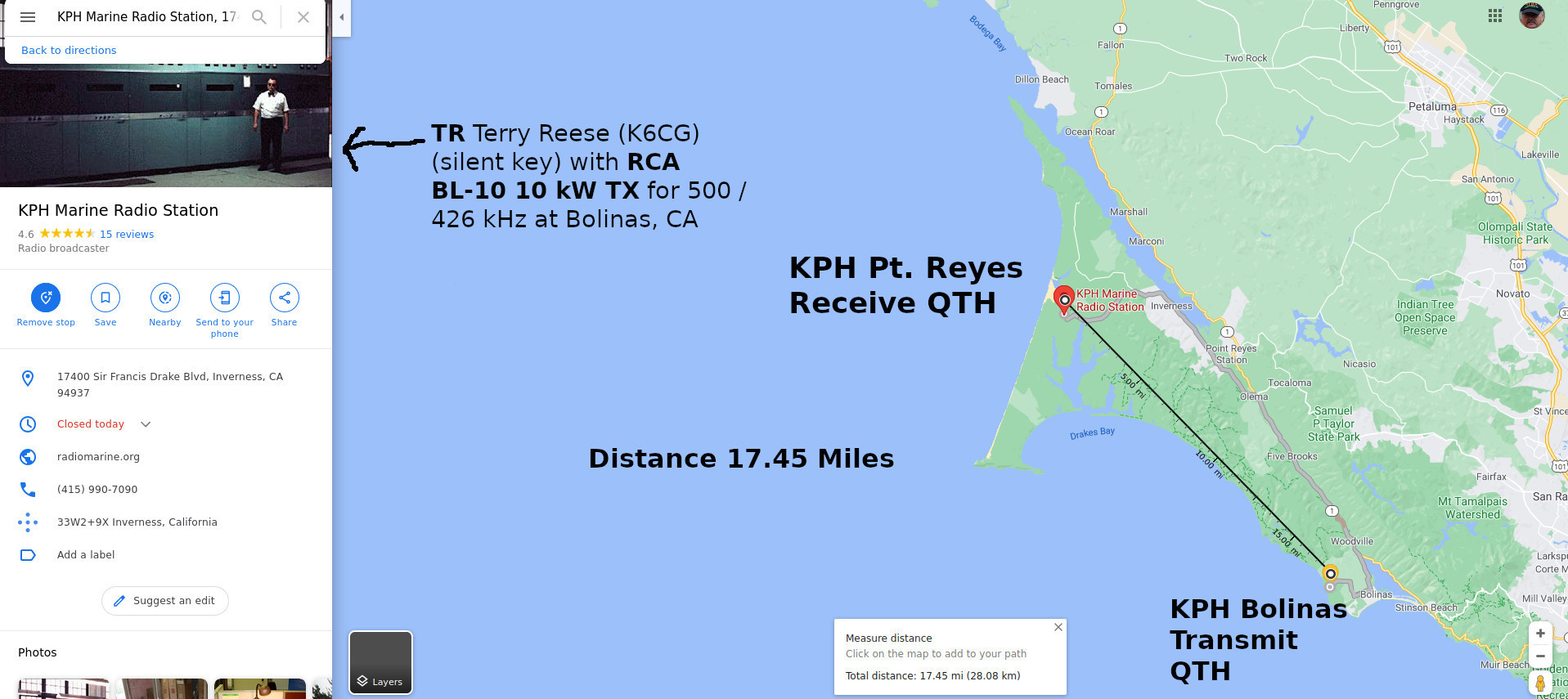

*Aerial Distance from KPH transmitter to Receiver sites (BL to RS),
17.45 miles from google maps.*

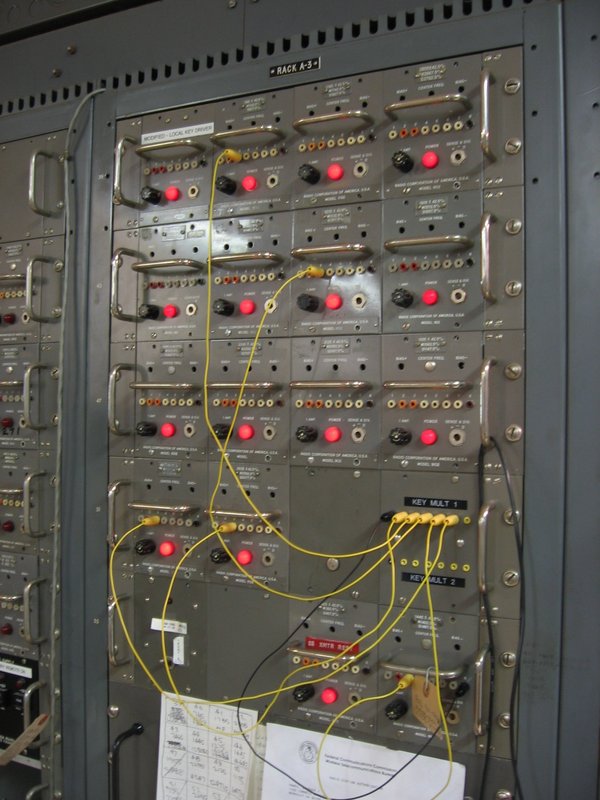

BL Tone sets from telephone wire from RS receive site, These 902 tone
sets are located in the control room at the Bolinas transmitter site.
There is one tone set for each transmitter. There are transmitter toggle
switches at each operating position to turn on or off each of the
transmitters on 500/426 kHz, 4, 6, 8, 12, 16 and 22 MHz (some bands have
more than one transmitter frequency being keyed.  Capability exists for
RS Control Position 1 to key a certain group of frequencies, and RS
Control Position 2 to key other groups of transmitters, all individually
selected at each  K6KPH likewise can select 3.5, 7, 14, and 21 MHz
transmitters which generally all all keyed at the same time.

*KPH Point Reyes, Inverness, CA*
*
*
**Entrance sign at 17400 Sir Francis Drake Blvd, Inverness, CA 94937 at
the beginning of the KPH Cyprus Tunnel that leads to KPH RS Receive
Location (RS - Point Reyes) and Antenna Field.**
*
*
**Further down the Cyprus Tunnel at KPH RS receive site, Point Reyes, CA.*
*

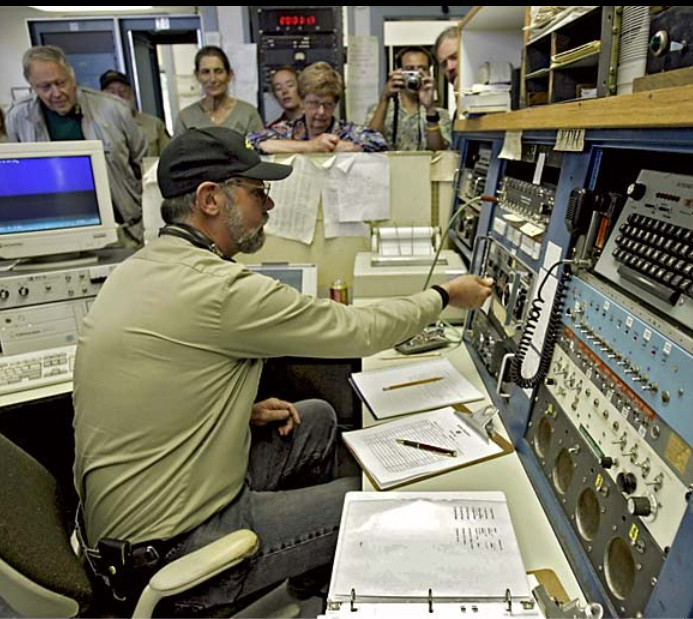

KPH CHIEF OPERATOR, Richard Dillman, (RD), W6AWO at KPH main operating
console at RS (Point Reyes, CA)which controls the transmitters at BL
Bolinas, CA by tones transmitted over telephone lines.


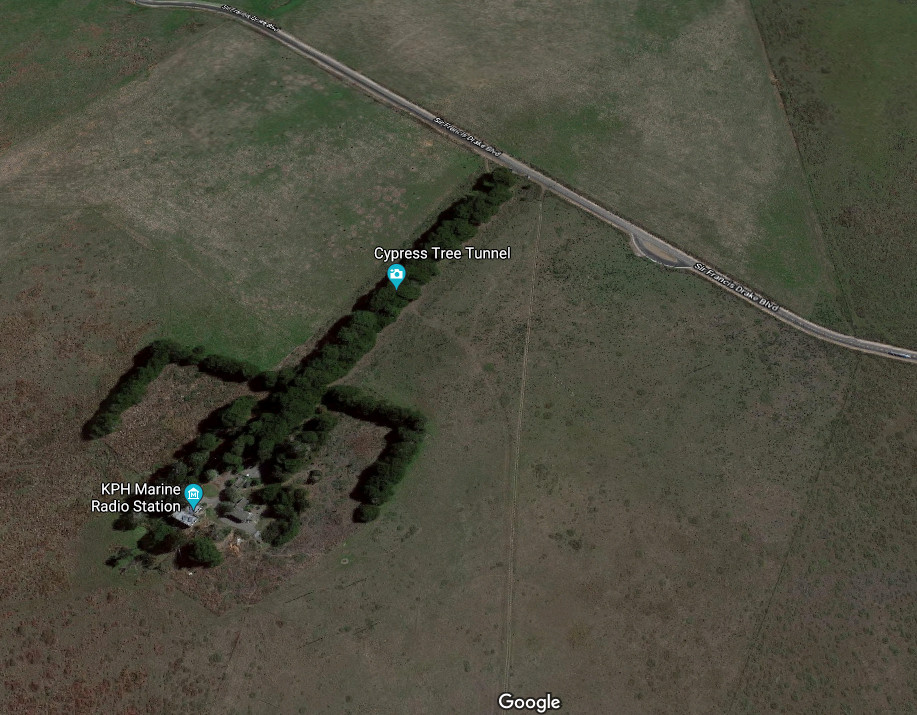

Aerial view of KPH RS Cyprus Tunnel and Receiving Station House, Point
Reyes, Inverness, CA


KPH RS - Receiver Station House, Inverness, CA at end of Cyprus Tunnel
at dusk.

Chief Operator (CHOP) RD demonstrating teletype machine to guest.


RD and other KPH crew photo taken at RS.
RD (Richard Dillman), DA (Denice Stoops), and other crew photo taken at RS.

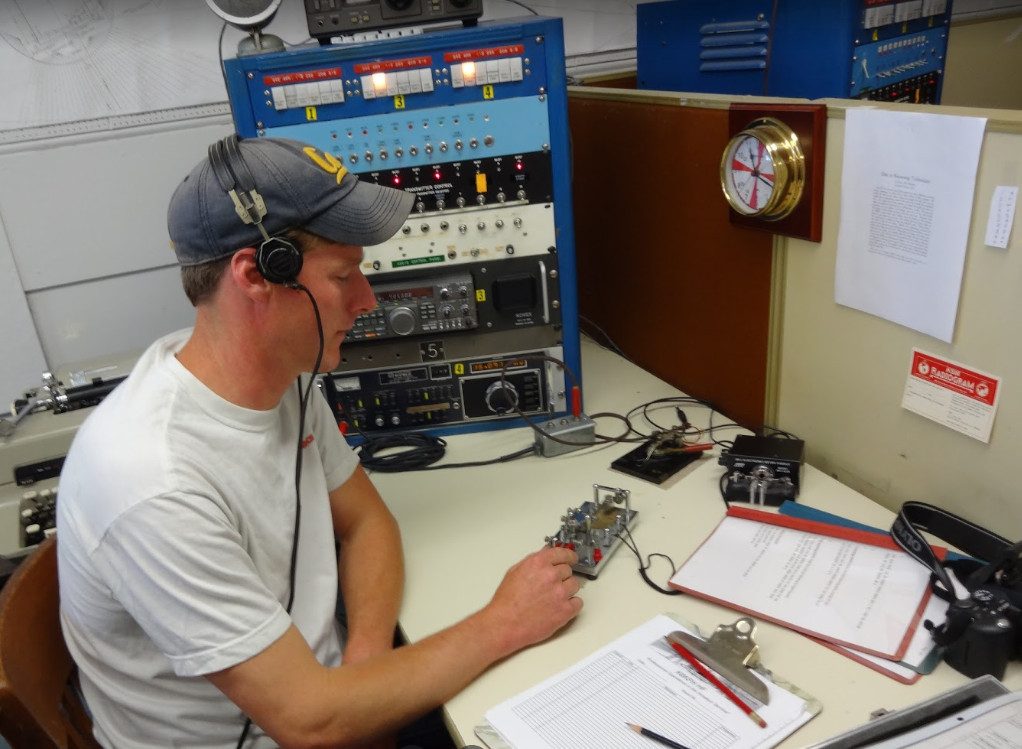

AMATEUR RADIO STATION K6KPH - Transmitters at Bolinas, Receivers and
operator at Point Reyes, CA

Just like KPH, K6KPH, the amateurradio position ar RS (Point Reyes),
similarly using tone lines remotely keys transmitters 17.45 miles away
at BL (Bolinas) on 80, 40, 20, 15 meters at 1.5 kW simultaneously.
Modern Henry 5 kW transmitters are used, throttled down to amateur power
limit of 1.5 kW output on each frequency, usually three such
transmitters are keyed at one time, 15 meters (21 MHz) was dropped at
night, and 80 meters (3.5 MHz) was added at night for a power
consumption of 4.5 kW each time the key was pressed.

73

DR
