[CW] Morse Key Contact Problems with modern radios.

[D.J.J. Ring, Jr.]

Modern radios are very fussy about contacts, the old days of 200 volts with
60 MA going through the key were very different and less critical.

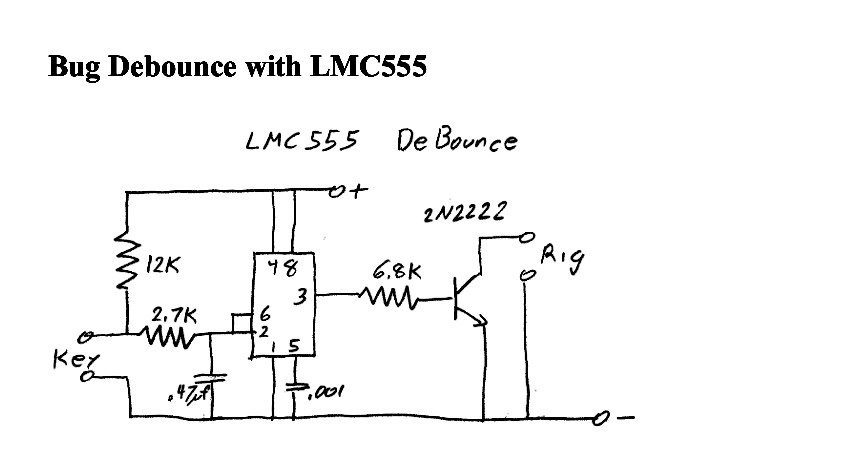

Here is a typical debounce circuit that makes a solid contact for your keys
using contacts like straight keys, sideswipers and bugs.

73
DR
[image: Bug Debouncer Descratcher.jpg]
