[CW] roseclips for open wire feeders

[Troy, W6HV]

Similar to what I used for my open wire feeders:
http://www.dtsohio.com/73cnc/laddersnap.html

Mine has been up for about two years.

73,
Troy, W6HV

From: D.J.J. Ring, Jr.
Sent: Tuesday, August 04, 2015 6:54 AM
To: CW Reflector
Subject: [CW] roseclips for open wire feeders

Too good not to relay onward.

From: Jozef Warnier <on6wj at skynet.be>

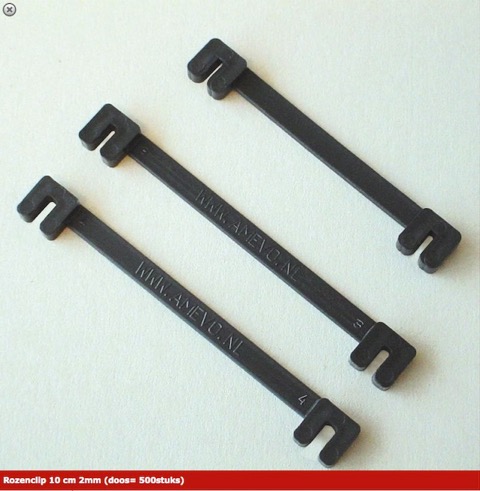

these "clips”  are used by professionals :rose growers
called “rozenclip” to tie the plants on horizontal wires
http://www.wildeboer-groep.nl/rozenclip-10-cm-2mm-doos-500stuks.html
(partnumber 402320)

the upper clip in the picture =2 mm gaps
seccond=3mm
below=4 mm gaps


technical data: ahum hahahahaha
I used 5 clips per meter (each 20 cm)
weight of 10 clips =27 g
for a box of 500 clips ,including post&packing to Belgium had to pay +/- 32 Euro
if You need more info ?
pse contact me off-line
on6wj at skynet.be

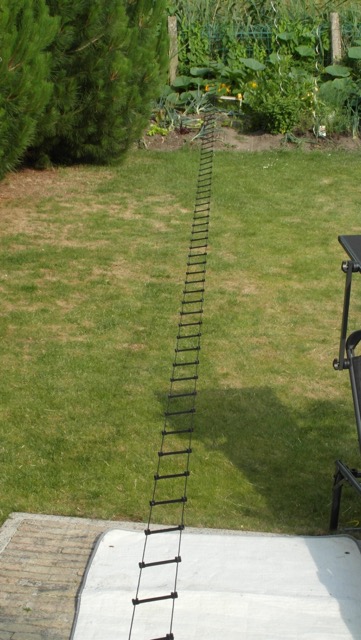

my feeder in “progress”
wire used is 0,75 mm multistrand (litze Cu-wire)

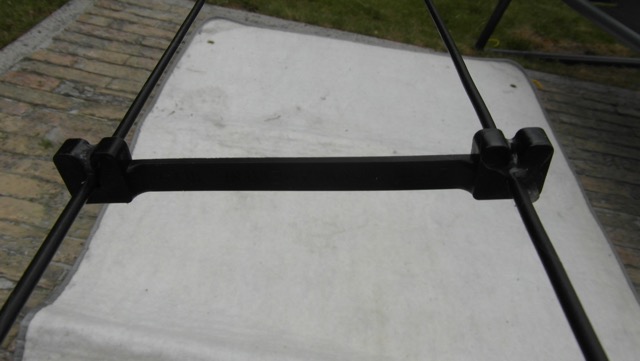

after a bit of pressure:
ie this wire is gently “pushed” with  flat screwdriver
into the 2 mm gaps of the black UV resistent “clip”
afterwards a drop of home made “glue” ( stiropur & solvent = like Q dope) to keep everything steady

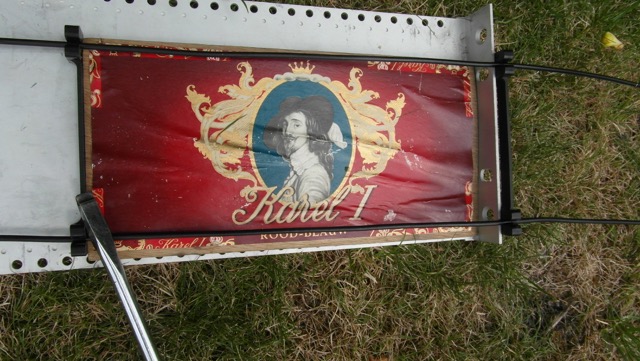

a simple “jigg” made L-bended Alu plate  plus of upperlid (piece) of sigar box
for keeping equal distances between the Roseclips  and making a “nice looking” parallel feeder hi







sri for the used bandwith
cheers
a la prochaine ami Med
Jos
on6wj



--------------------------------------------------------------------------------
