[ARC5] SCR-522 Connectors

[Mark K3MSB]

Yup… I see it now…. page 20 and 21.    Also in the Table of Contents…..
Duh…..

I have two of them apart.    I tried using pliers but the grip wasn’t good
enough.  I thought about using a vice but that leads to obvious dangers…..

Thanks Mike.

On Fri, May 15, 2026 at 12:12 PM Michael Hanz <aaf-radio-1 at aafradio.org>
wrote:

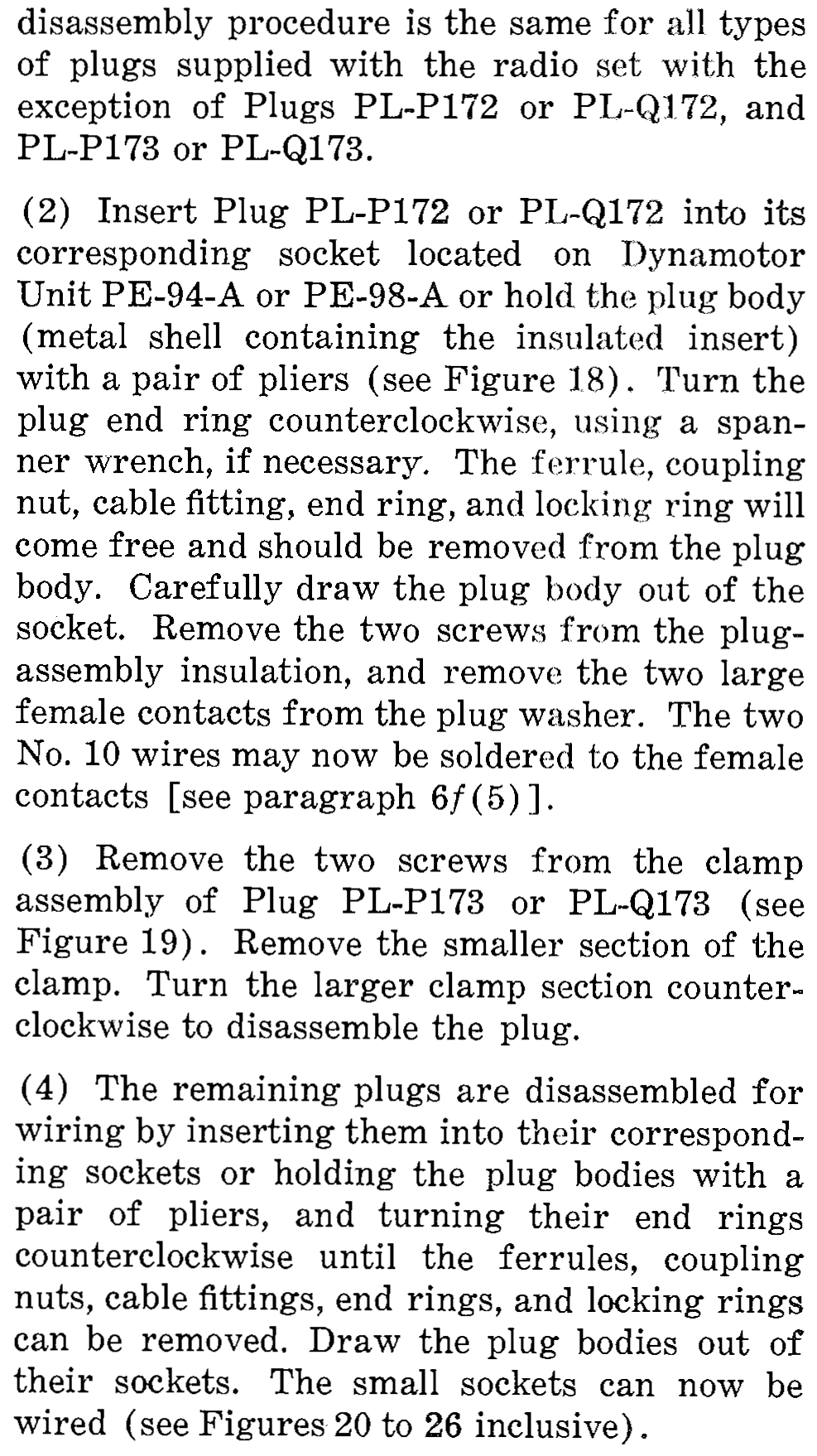

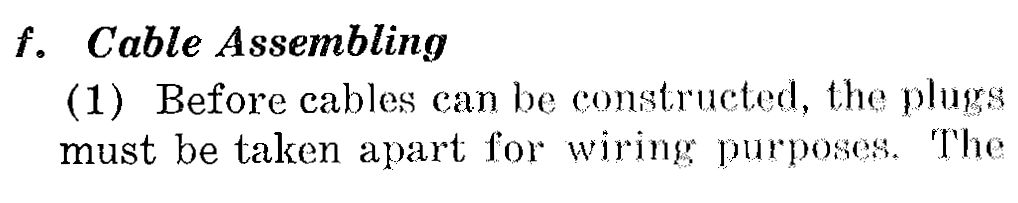

> Wuz just about to answer your earlier query about that!  You use a mating
> socket in the Tx or junction box to provide the locking power.  The manual
> has the directions.
>
> 73,
>
> Mike
>
> On 5/15/2026 11:30 AM, Mark K3MSB via ARC5 wrote:
>
> How in blazes do you get there critters apart?
>
> I figure there’s a screw under the rotating collar,  but I’ve not been
> successful in getting the collar off.   I didn’t find anything in the

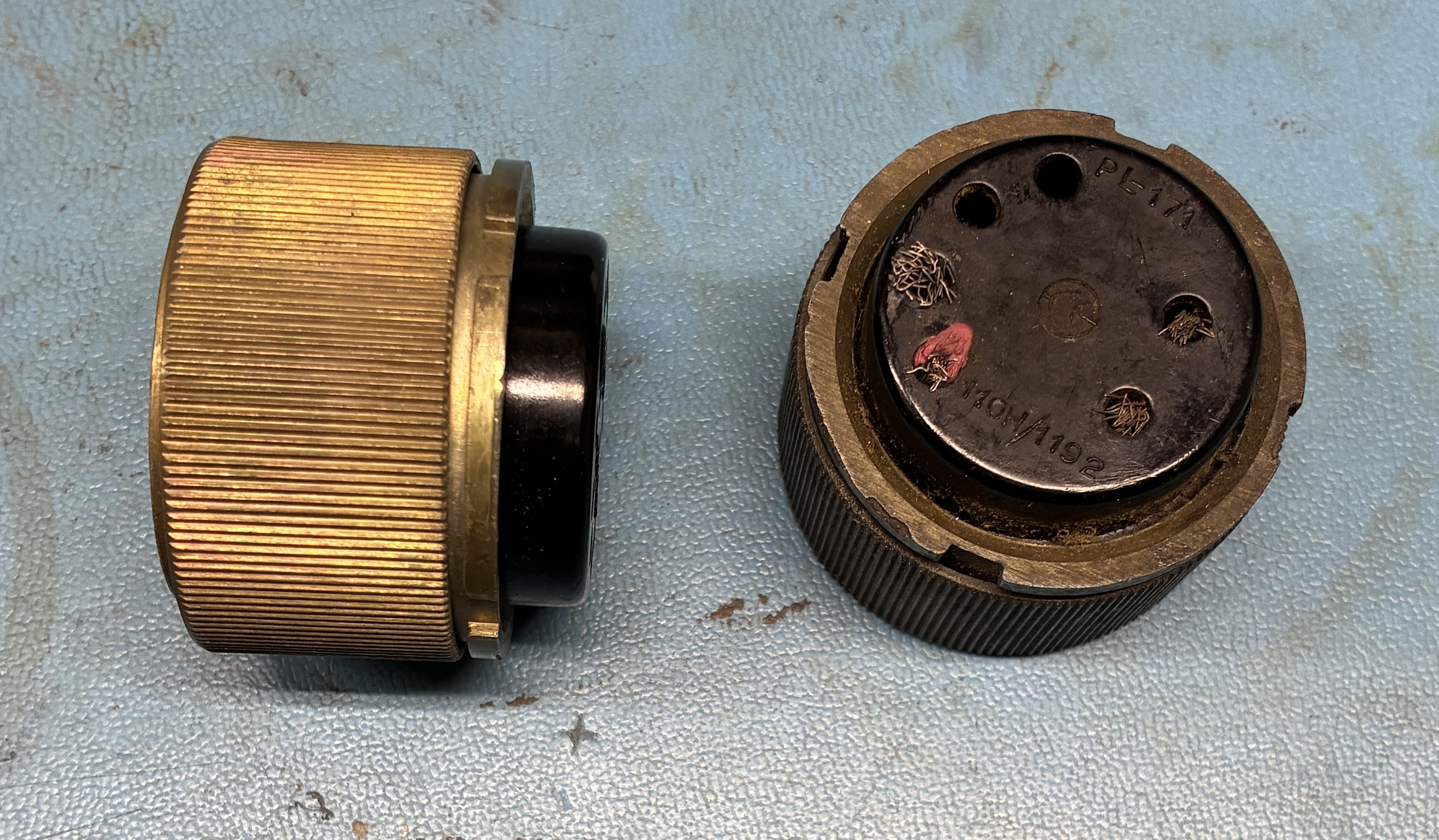

> manual…. Here’s a photo of two of the connectors….
>
>
>
> Thanks.
>
> Mark K3MSB
>
>
