Hi Brooke,

Thank you for your reply.

The AGM-45 cross-needle ADI is a novelty to me.

While I thought that there must have been some sort of DF indicator eg.
on the F-105 SEAD variants in Nam, I did not suspect it could have been
integrated with an ADI.

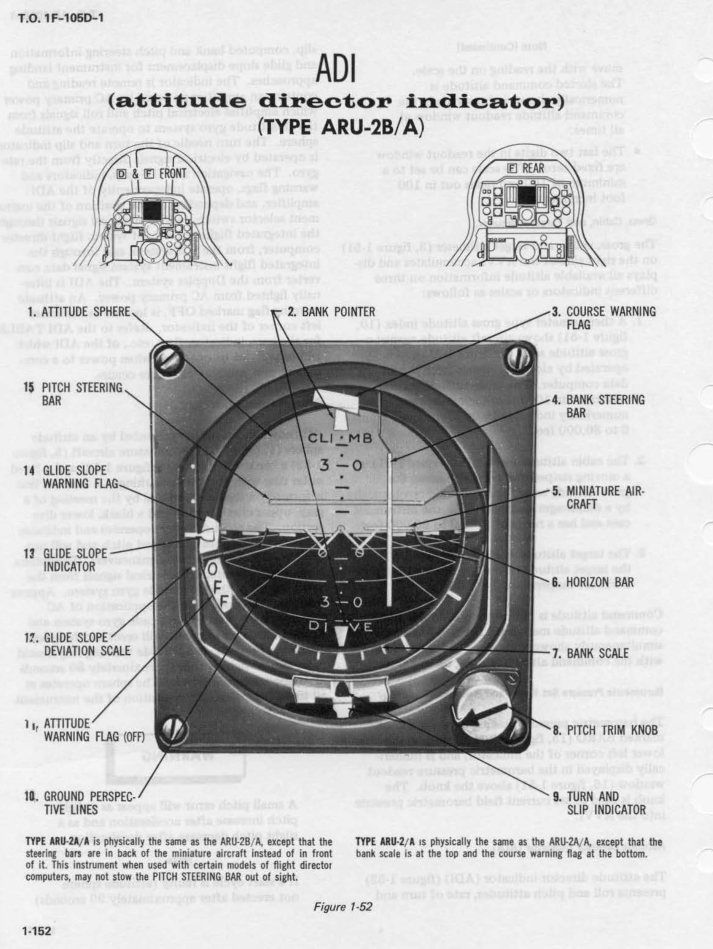

Enclosed please find the pages from the F-105D flight manual, which
depict the ARU-2B/A ADI with the said needles. The manual is from ca.
1969/1970, and it was silent on the details on Shrike aiming and
launching. However, it can be safely assumed that the Shrike targeting
mode using the ADI was simply added later.

73,

Jan SP5XZG


W dniu 10.04.2026 o 19:11, Brooke pisze:
> Hi Jan:
>
> Don't have an answer but related info.
>
> 1.  Do  you know which attitude indicator has independent needles that
> were used for aiming the AGM-45 Shrike missile?
> https://prc68.com/I/RWR.shtml#AGM45
> https://prc68.com/I/ChinaLakePatents.html#Ref_14
>
> 2. There's a pallet of APR-9 related boxes on eBay:
> https://www.ebay.com/itm/188114300490?
>
-------------- next part --------------
A non-text attachment was scrubbed...

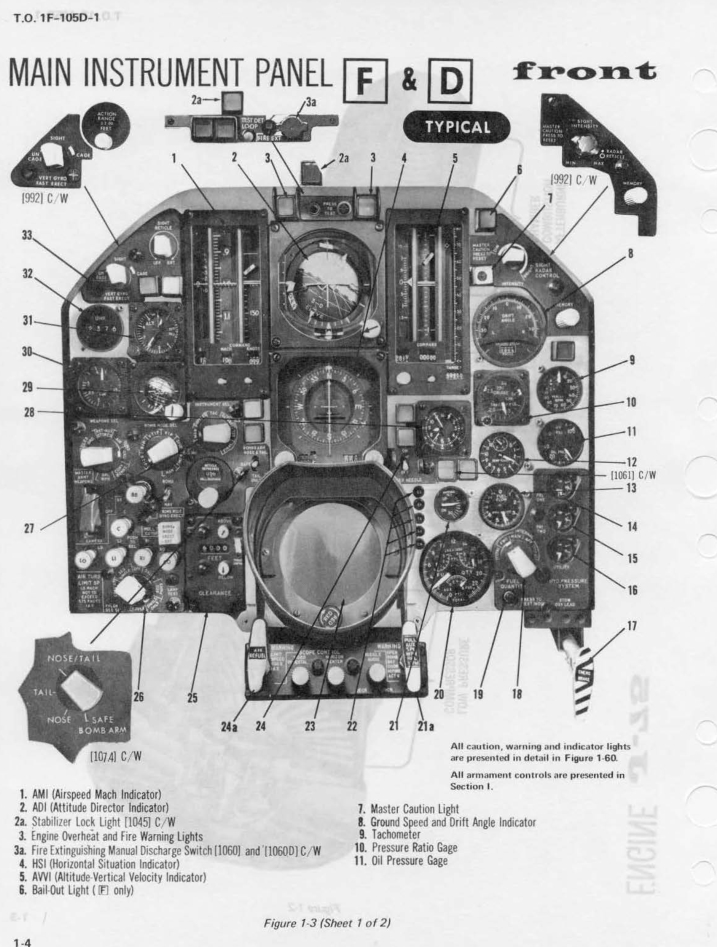

Name: F-105D man 1.jpg
Type: image/jpeg
Size: 391472 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20260410/1f5392d4/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

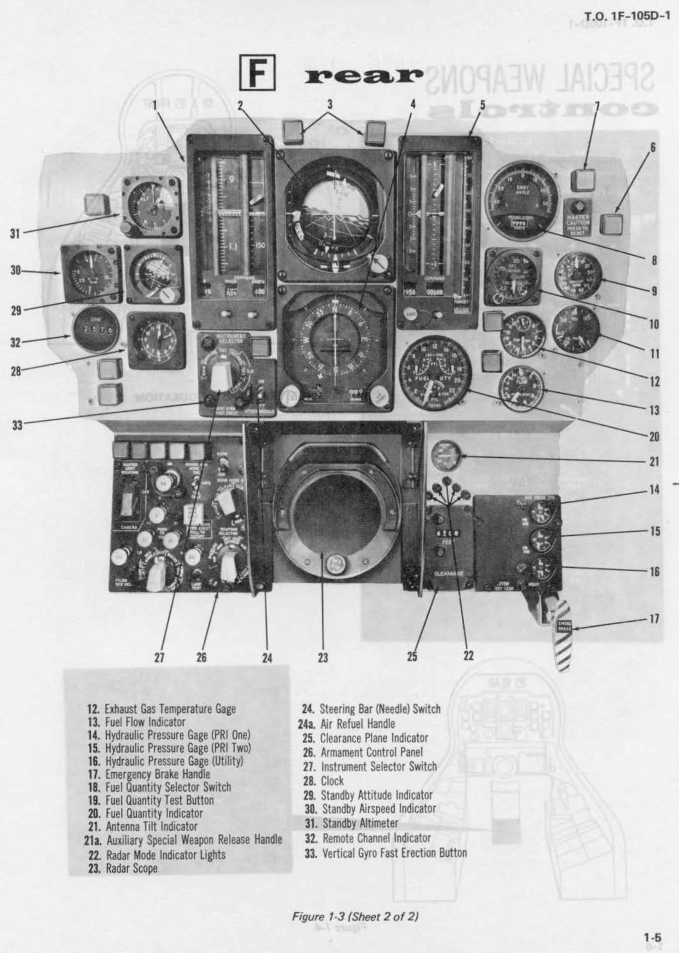

Name: F-105D man 2.jpg
Type: image/jpeg
Size: 352818 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20260410/1f5392d4/attachment-0005.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: F-105D man ARU-2BA jpg.jpg
Type: image/jpeg
Size: 372336 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20260410/1f5392d4/attachment-0006.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

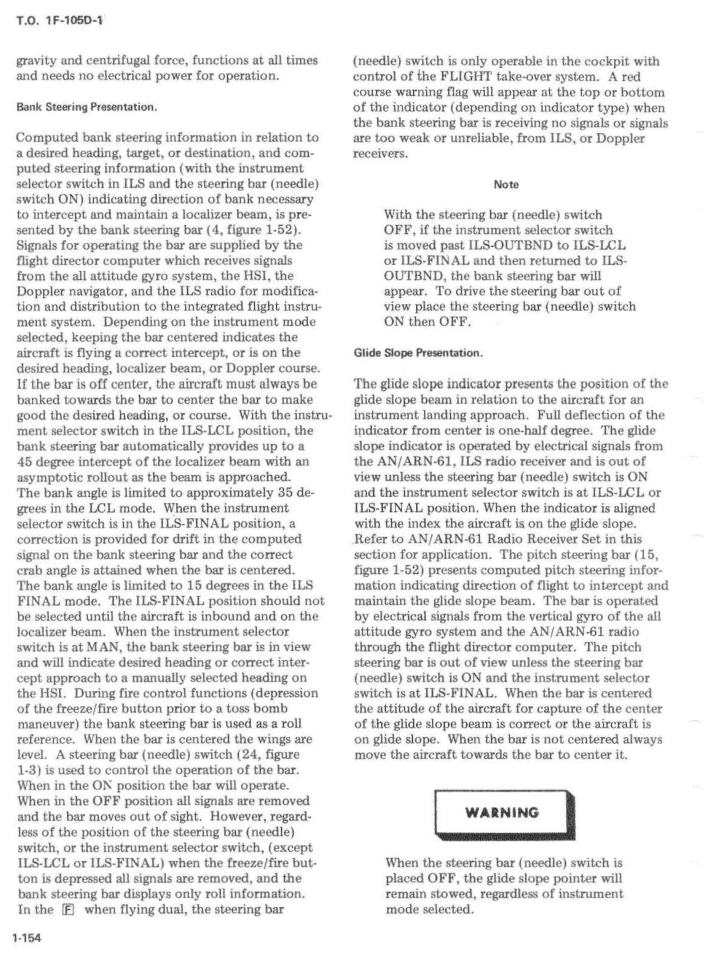

Name: F-105D man bank steering.jpg
