[ARC5] Seeking Extinct Wire

[Mike Feher]

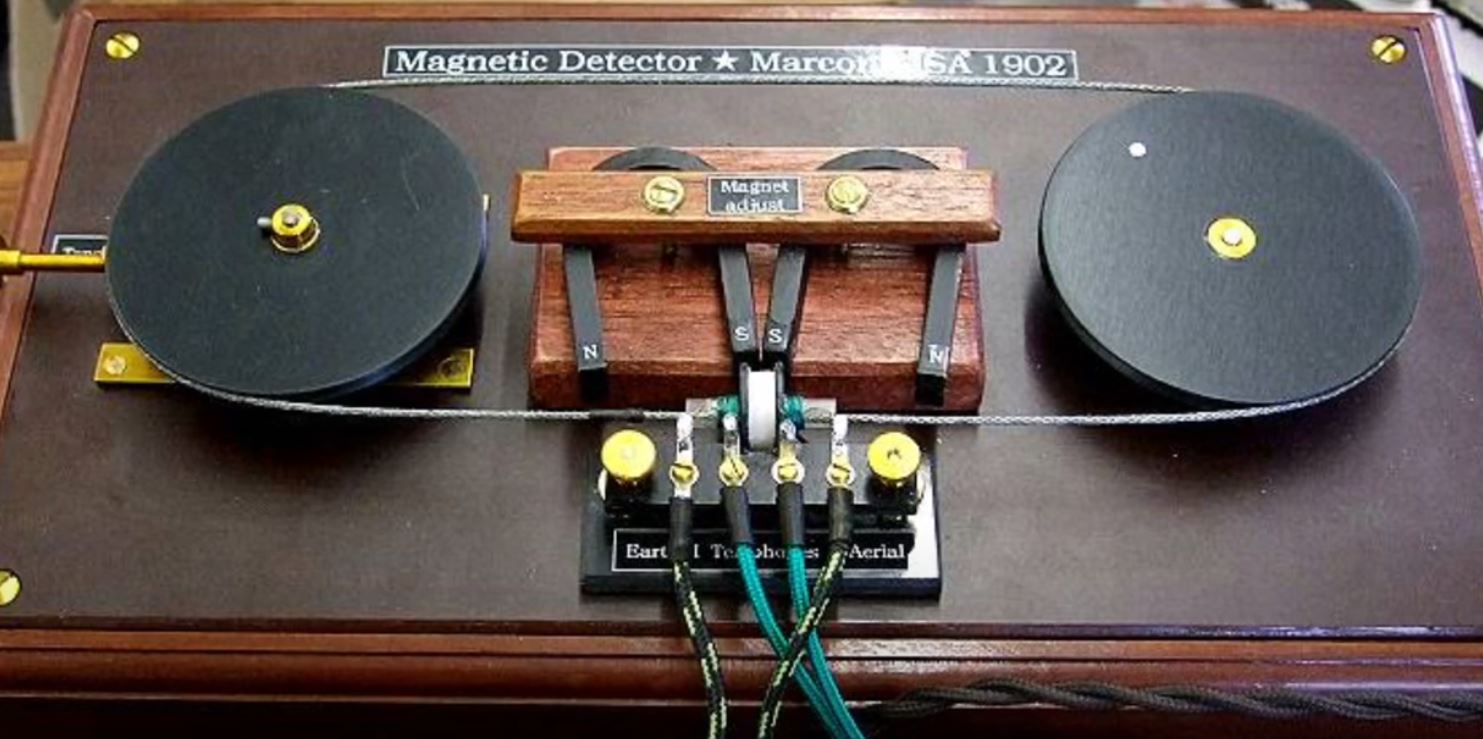

Dave – I believe the originals were spot welded. The band on my Marconi one was broken when I got it. Otherwise it looks like it came out of the factory. I just butt connected them with a piece of heat shrink tubing. Worked great as far as keeping the loop together even when the wheels were turning. I doubt if it would be noticeable in operation as there is only a microscopic gap where the ends were connected. Attached is a photo from a You Tube video that shows a similar connection style. Whatever you use, it has to be able to bend a small amount so it will go around the wheels. Nice project. Good luck with it. Remember, the pickup coils can be copper. The earphones have to have a low resistance between 100 to 200 ohms. 73 – Mike



Mike B. Feher, N4FS

89 Arnold Blvd.

Howell NJ 07731

908-902-3831



From: arc5-bounces at mailman.qth.net <arc5-bounces at mailman.qth.net> On Behalf Of arc5 at ix.netcom.com
Sent: Thursday, May 29, 2025 11:45 PM
To: Mike Feher <n4fs at eozinc.com>; 'David Stinson' <arc5 at ix.netcom.com>; 'ARC-5 List' <arc5 at mailman.qth.net>
Subject: Re: [ARC5] Seeking Extinct Wire



Thank you for sending this, Mike.

Glad to hear that 40-gauge is not nessesary.

Please-  how are the ends of the individual wires joined

to form one of the loops?

TNX DE Dave AB5S



--
