[ARC5] Fwd: Fwd: [Milsurplus] Is-116 meter help

[Michael Hanz]

-------- Forwarded Message --------
Subject: 	Re: [Milsurplus] Is-116 meter help
Date: 	Sat, 23 Aug 2025 08:59:25 -0400
From: 	Michael Hanz <aaf-radio-1 at aafradio.org>
To: 	Paul Thekan <pfthekan at gmail.com>

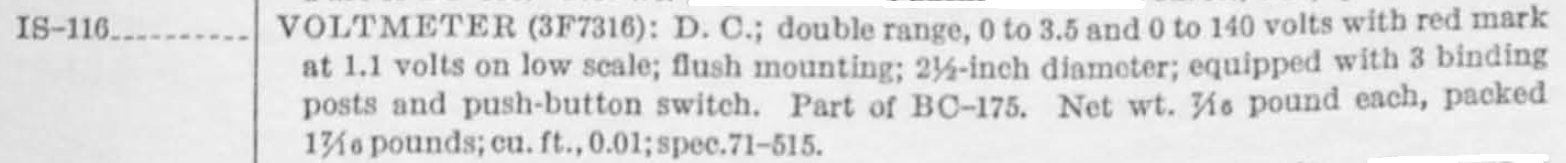

My copy of the Signal Corps General Catalog dated 1940 has this, Paul,
FWIW.  Maybe BC-175 would provide a bit more data.

73,
Mike



On 8/23/2025 1:22 AM, Paul Thekan wrote:
> I'm trying to identify this voltmeter I need.
> The manual just gives it as is-116.
> I think it has two scales maybe 0-100 and
> 0 - 5....I'm just making an educated guess by what I can read in the
> manual description in operating the radio.
> The schematic shows 3 connections on the meter..guessing a common and
> one for HV and the other LV
> This is for the BC-227 receiver.
> Any help much appreciated..
>
> Paul
> N6FEG
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20250823/c269fbab/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: zhtMLDty7UZja01l.png
Type: image/png
Size: 188684 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20250823/c269fbab/attachment-0001.png>
