Francesco,

Thank you very much indeed for the valuable contribution.

If there is a group dedicated to vintage mil avionics, I would happily
join it so that we could focus right here on the Aircraft Radio
Corporation's products.

My understanding is that when a UHF radio was set to the DF mode by the
pilot so that it could pick up signals via the ARA-25 or ARA-50, then
the UHF radio could not be used for regular comms. A solution was the
addition of the dedicated ARR-40 or ARR-69 receivers for DF purposes to
the inventory, when installing two UHF COM radios would be too lavish
and wasteful (in terms of taxpayers' money). Yet in the 1980s the
presence of eg. two ARC-159s for redundancy on a fighter jet was not
unusual.

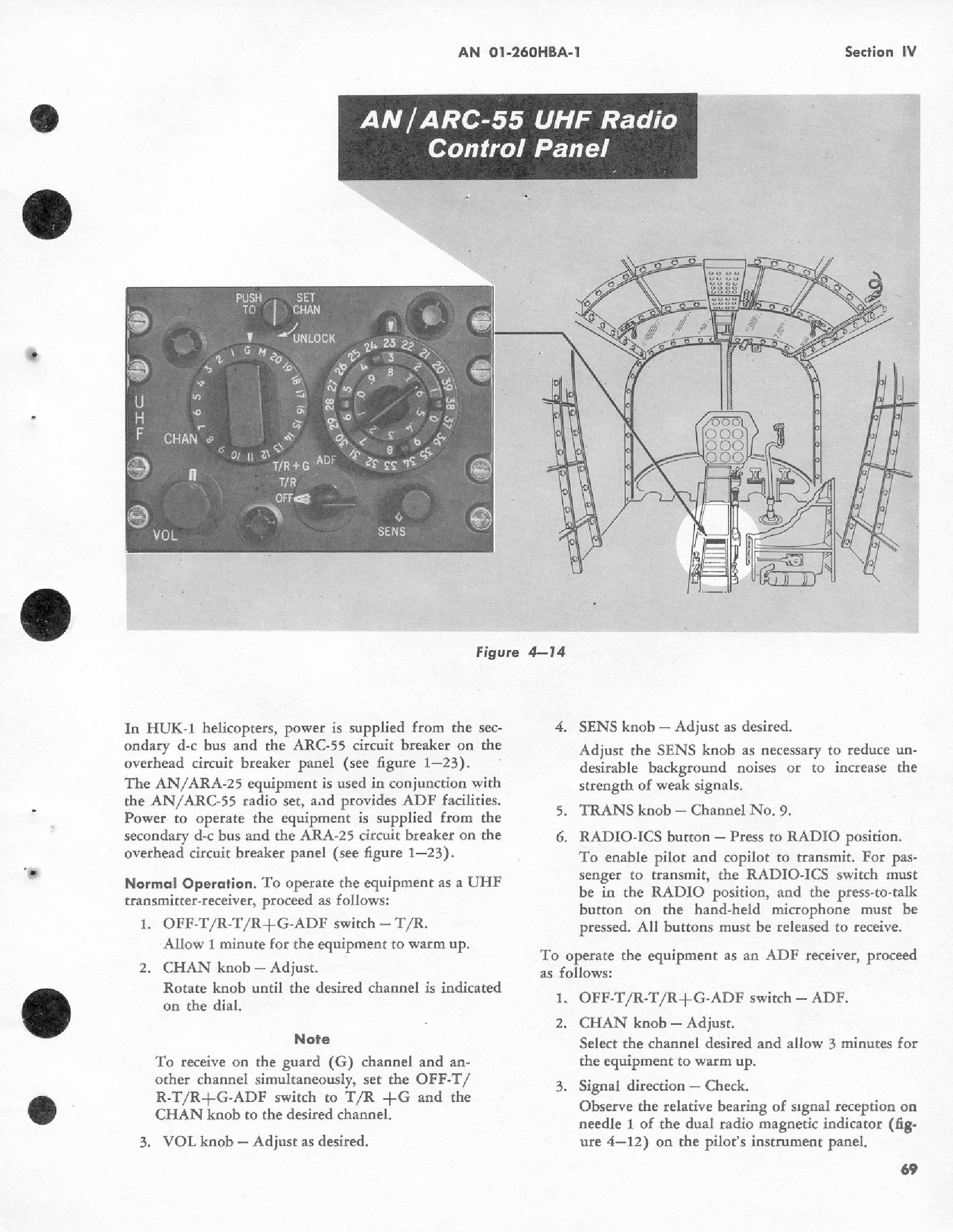

The ARC-55 was used eg. on the Kaman HUK-1 Huskie (aka Pedro) along with
the ARA-25 as evidenced by the attachment originating from that aircraft
manual, making it an interesting but relatively small SAR/CSAR helicopter.

73

Jan SP5XZG

W dniu 25.03.2024 o 00:40, frledda at att.net pisze:
> Scott,
>
> I am sure that you are right. How old is your -1?
>
> But, I think Jan was referring to the comm snapshot from the -1 he owns
> (dated 1956). His 01 may be not accurate for the whole fleet.
>
> Originally the KC-97E/L DID NOT have the ARC-27/ARA-25 combination, until
> the ships were rotated to the depot for overhaul/IRAN. Rotating the whole
> fleet to the depot could take years, as you know, as these complex comm
> upgrades could not be done in the field.
>
> By the way, the ARC-27 was in full production for the Navy in June 1951.
> Collins and other subcontractors were producing about one thousand units a
> month.  Being a Navy program and the Air Force being married to the ARC-34,
> at that time, it may have taken few years for the Air Force to get hold of
> lots ARC-27s to do retrofits.  The F-86D had the ARC-27, but the F-84F had
> that ARC-33.
>
> The Navy had both the ARC-27 (pressurized) and the ARC-55 unpressurized.  I
> am not sure how they selected the target aircrafts, as the S-2 Tracker had
> the ARC-27, but spent most of its time a 500ft and its other avionics was
> unpressurized.
>
> I know that you are not a fan of the ARC-27, but it was a good and reliable
> radio, and easy to fix.  There was very little need to do a bench alignment,
> once a module was swapped.  Can't say much about the ARC-34 and ARC-33, as I
> never played with them.  The fact is that from the ARC-27 until the ARC-164,
> Collins had the monopoly of the military UHF comm market. They got it back
> with the ARC-210.
>
> A derivative of the ARC-27 was the GRC-27. Collins made a bunch of those and
> were virtually on all control towers (worldwide) and Navy ships.
>
> May be, we should move this discussion to a more appropriate user group, as
> this is not an ARC-5 discussion and don't want to bother other users.
>
> Best, Francesco K5URG
>
>
>
>
>
