[ARC5] Nomenclature identification request: AN/ARC-1 Dzus-mounted control unit

[zakariya.abu at yandex.com]

Mark,

Thank you for the reply. The photo was a crop from a scan of an old
helicopter manual (as in the attachment). I do not have the device.

In the mean time I found an old ebay photo which shows a C-865/ARC-1 as
only the upper part of the control unit that I had posted a picture of:

https://picclick.ca/1960s-VHF-Aircraft-Cockpit-Radio-Control-Head-C-865-ARC-1-115380491690.html


I still do not know if the lower part with the VOL/ON/OFF controls used
a different nomenclature. Do you have a late AN/ARC-1 manual that
describes this?

73

Jan
SP5XZG

W dniu 23.03.2024 o 20:19, MARK DORNEY pisze:
> What you have is a C-865/ARC-1 transceiver control box from the 1960s. It replaced the WW2 vintage C-45/ARC-1 control box used in ww2. Small Nomenclature plate is located on the back of the control box, near where the sole power/control cable plugs into the control box.  I suspect the Dzus mount is what it is sitting in/on top of
>
> 73
> Mark D.
> WW2RDO
>
> “In matters of style, float with the current. In matters of Principle, stand like a rock. “.   -   Thomas Jefferson
>
> Sent from my iPhone
>
> On Mar 23, 2024, at 8:46 AM, zakariya.abu at yandex.com wrote:
>

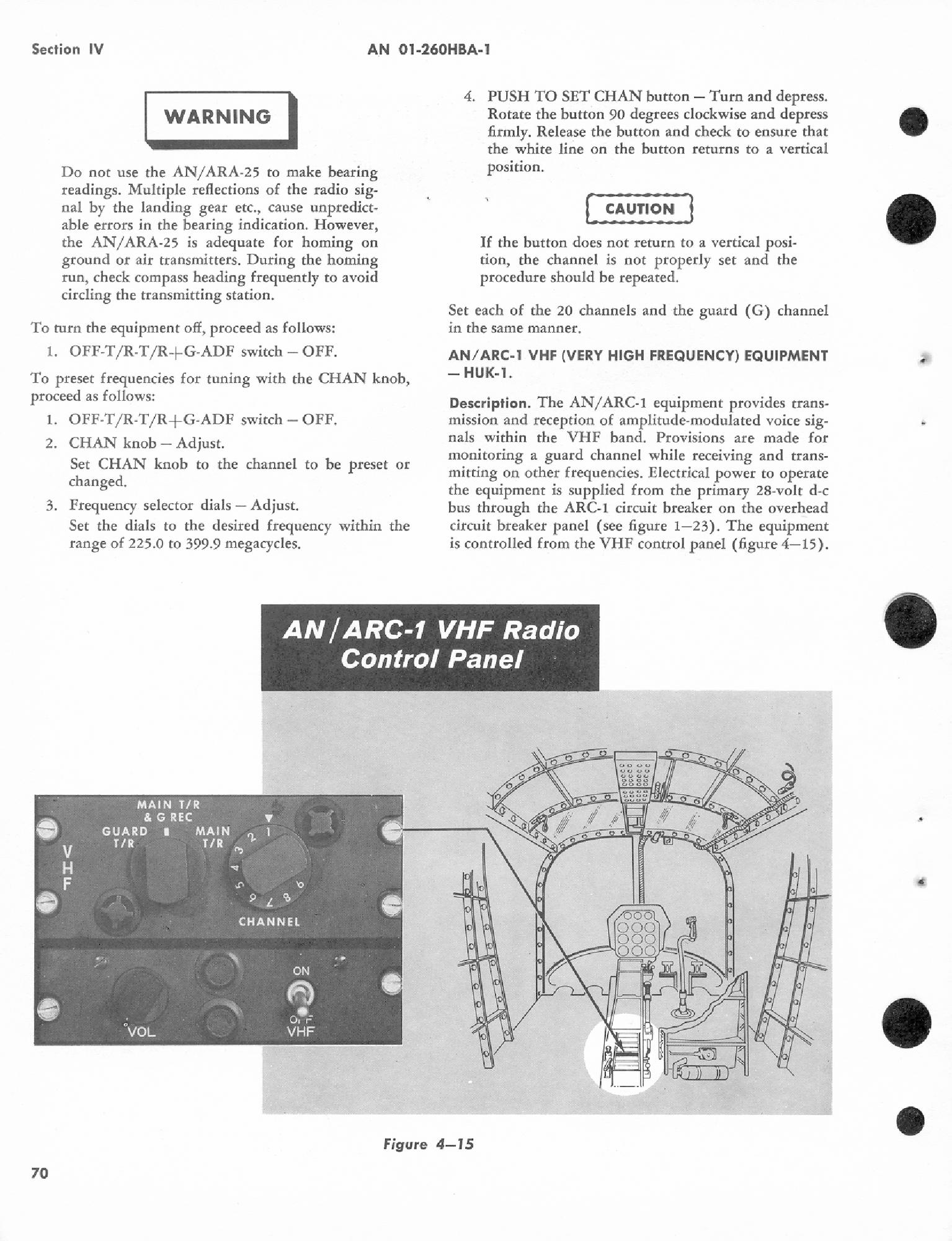

> I'd like to ask the experts to identify the nomenclature of an unusual AN/ARC-1 Dzus-mounted control unit from the attachment. It was used in the late 1950s/early 1960s on the Kaman HUK-1 Huskie naval helicopter (later became known as UH-43C). Note the 9 presets + 1 guard.
>
> The same a/c also used the AN/ARC-39 AM HF set, the AN/ARC-55 UHF with AN/ARA-25 UHF DF, and the AN/ARN-59 ADF.
>
> 73
>
> Jan
> SP5XZG
> <ARC-1 Dzus.jpg>
