[ARC5] Aircraft Radio Corporation airband oddities

[Doran Platt]

Jan,

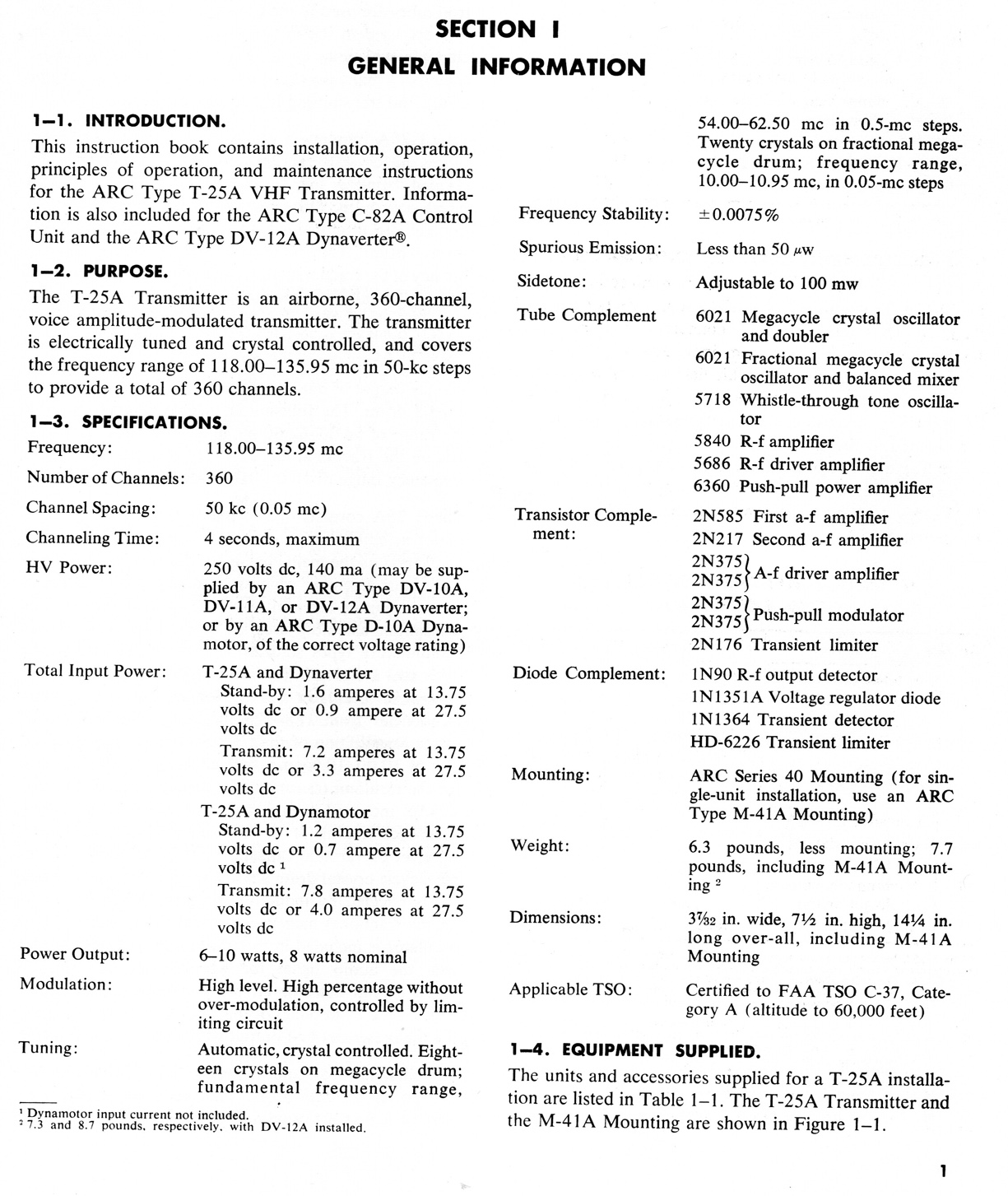

The T-25( ) is a 360 channel transmitter. Its rated at 6 watts out. The size is not ATR but an ARC-specific mount. The Tx ix about 12" deep, 3" wide, and about 7" high. Attached is the spec page from the ARC manual I have.  Both my tx are "C" modls.
Regards   Jeep K3GVG
> On 03/19/2024 1:04 PM EDT zakariya.abu at yandex.com wrote:
>
>
> Hi Doran,
>
> Could you please elaborate the specs of the T-25 and if the set is
> similar in dimensions to the T-11 or T-13? Do you have any manual or
> even an ad of the T-25? It seems that the T-25 did not belong to the
> Aircraft Radio Corp Type 12 series, but was introduced somehow later.
>
> 73
>
> Jan SP5XZG
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ARC T-25C Spec.jpg
Type: image/jpeg
Size: 534239 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20240320/d77a7e72/attachment-0001.jpg>
