Hello ,
the old question of dealing with old equipment is : where can I get
connectors?

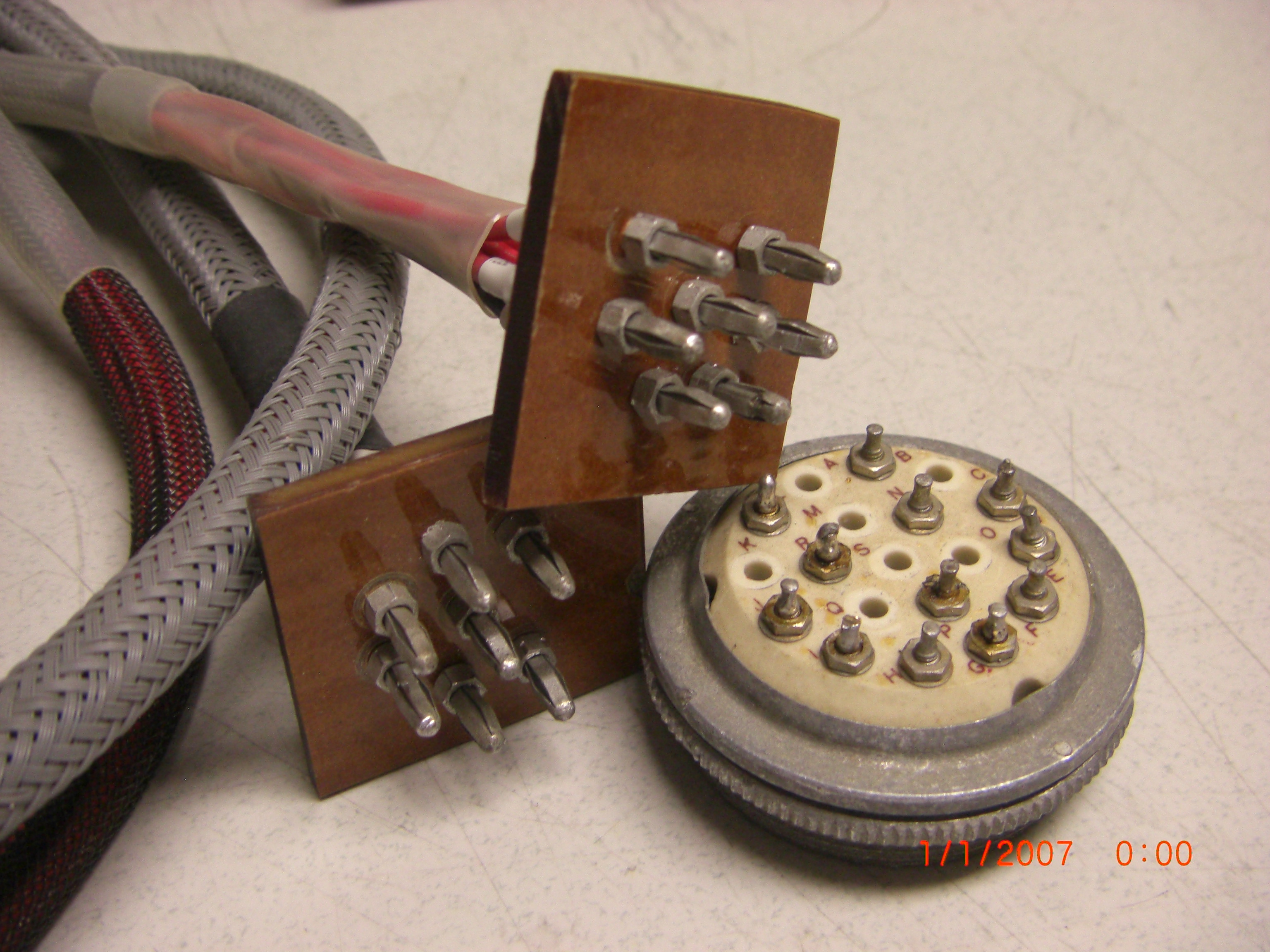

My solution is in the attached picture.
First I make a copy of the pin arrangement by pushing a piece of paper
onto the connector and use that to drill the holes into a piece of phenolic.
The pins come from a variety of sources. As seen for the command set I
use pins from the type 12 system which are held by a nut in place.
For others I have used Waldon pins and sockets or what ever will fit.

I hope this will help.

Peter
KC0DGM
