[ARC5] Small parts quest...

[Michael Hanz]

There are no letters on the top of the A-61-A terminal posts.  Craig
will need two of the command transmitter complete antenna terminal
assemblies with insulators, and one of the similar ground terminals
_without_ an insulator.  This ground terminal could easily be made from

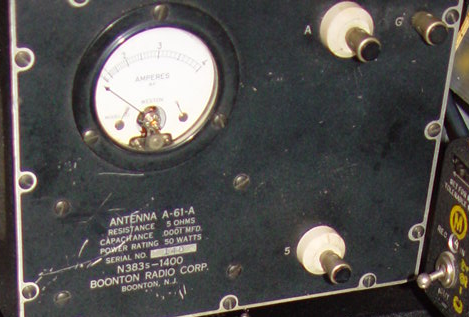

a receiver antenna terminal.  The "A" markings can be filled with some
black paint, since the replacement panel could be marked with A, 5, and
G as shown below.

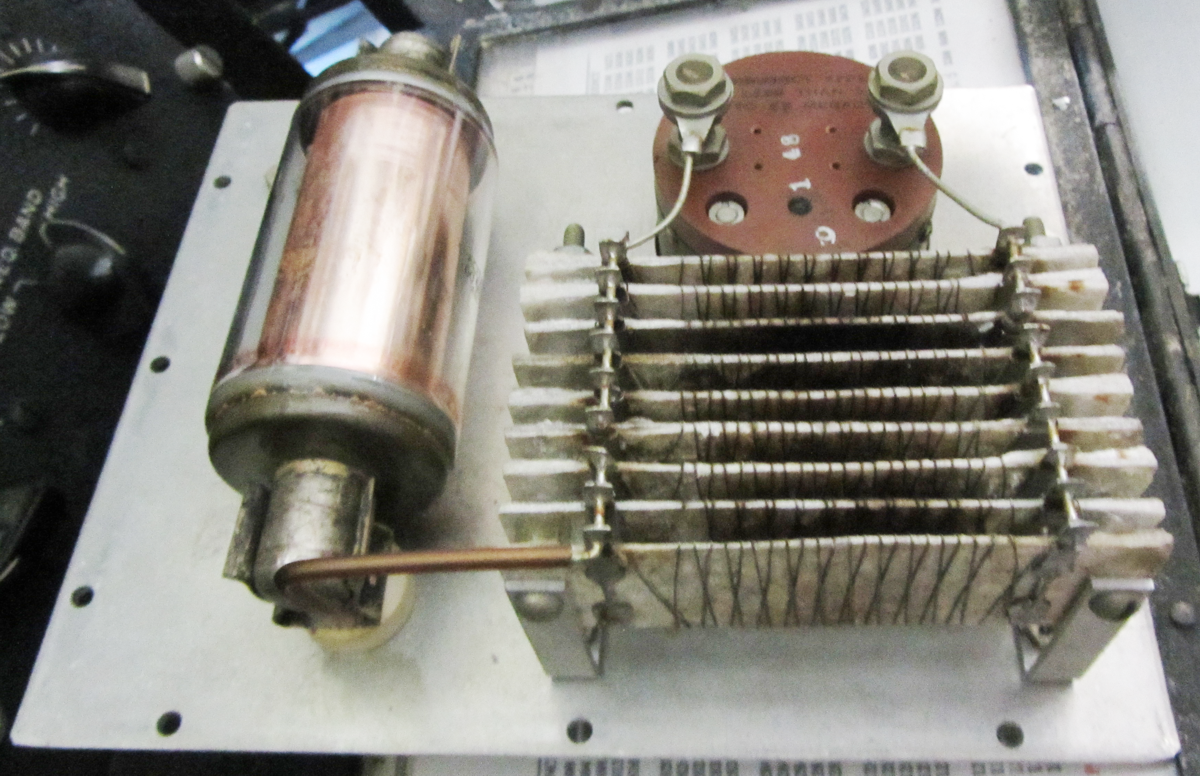

Also don't forget you will need two large fuse clips shown below that
mount on the back of the two insulated antenna terminals to hold the
100pF vacuum capacitor.



         73,
- Mike  KC4TOS

On 12/8/2024 9:04 AM, MARK DORNEY via ARC5 wrote:
> What letters on the tops of each post?
>
> Mark D
>
> On Dec 8, 2024, at 6:47 AM, Craig Cantwell via ARC5
> <arc5 at mailman.qth.net> wrote:
> Brian: I accidentally deleted your email as I was reading it. I'm
> looking for a total of 4 of the posts for this build.
>
> Craig
> KF5JOT
