[ARC5] AN/ARN-6 ADF S-meter Dzus panel question

[zakariya.abu at yandex.com]

Scott,

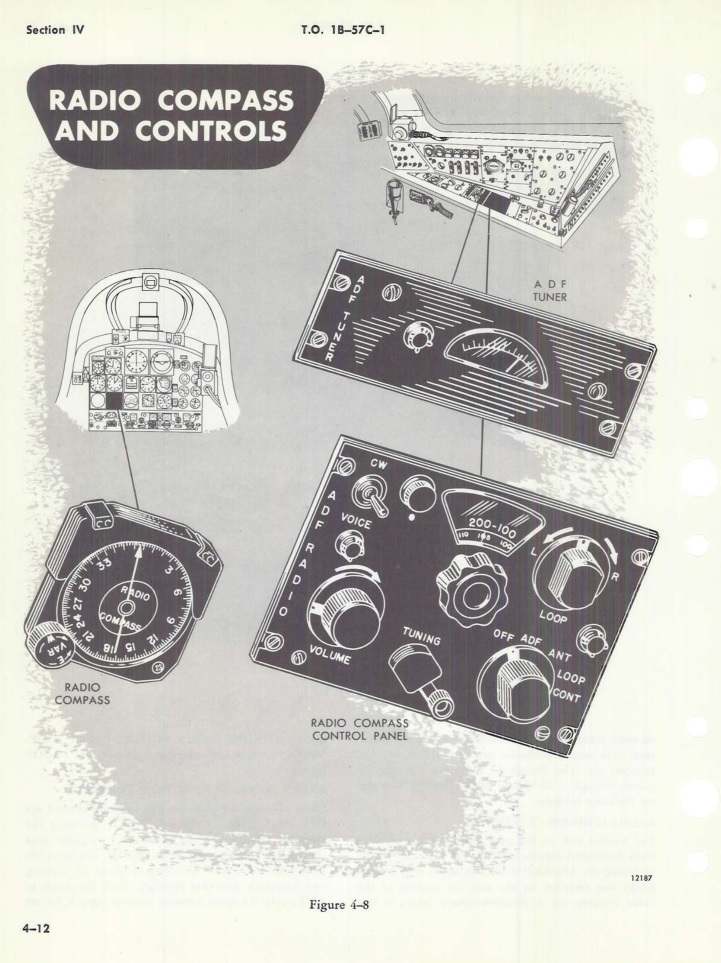

Perhaps Martin, the maker of the B-57, was responsible for the S-meter
Dzus panel as it was also used on the B-57C (see the attachment). I
thought that the S-meter panel could have belonged to the AN/ARA-19
remote tuning group for the AN/ARN-6. I have the ARA-19 manual, but it's
silent on the matter. So, the puzzle is still unsolved.

73,

Jan SP5XZG

W dniu 06.04.2024 o 23:22, scottjohnson1 at cox.net pisze:
> The earlier control panels had S meters, latter boxes tended not.  Bendix was the original Designer/ contractee, but it was made by several companies, last version from the late fifties/early sixties was the R-101C.  The S meter box may have been an airframe manufacturer addition, so it could have been Martin, who knows.  Just a Dzus panel with a meter.
>
> Scott W7SVJ
>
> -----Original Message-----
> From: arc5-bounces at mailman.qth.net <arc5-bounces at mailman.qth.net> On Behalf Of zakariya.abu at yandex.com
> Sent: Saturday, April 6, 2024 14:01
> To: ARC-5 <arc5 at mailman.qth.net>
> Subject: [ARC5] AN/ARN-6 ADF S-meter Dzus panel question
>
> Colleagues,
>
> Could you please identify the nomenclature and maker of the ARN-6 ADF Dzus panel with an S-meter as indicated on the attached scan from the Martin B-57B bomber manual?
>
> The C-1415/ARN panel seen in the bottom of the picture was the usual complement of the set, but what about the one with an S-meter?
>
> 73,
>
> Jan SP5XZG
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ARN-6 on B-57C.jpg
Type: image/jpeg
Size: 204194 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20240407/899f6953/attachment-0001.jpg>
