[ARC5] [Milsurplus] 26003A Navy aviation key

[Christopher Bowne]

And there’s the Wireless Set No. 19 leg strapped key that’s “sort of” insulated and series keys LV B plus - hot on both terminals!  Found out that on initial light off of my 19 set while strapping the key to my leg and wearing shorts!  Quickly installed a relay and was only keying 12V DC afterward!

Chris B.  AJ1G
Stonington CT

Sent from my iPhone

> On Jun 11, 2023, at 10:27, Rich Post <kb8tad at gmail.com> wrote:
>
>
> Yes, flameproof in fuel vapor situations.  But also good for avoiding some of the 'potential' bites on cathode keyed older rigs!
>
>
>
>> On Sun, Jun 11, 2023 at 8:08 AM Michael Hanz <aaf-radio-1 at aafradio.org> wrote:
>> Once more with the picture...
>>
>> On 6/11/2023 8:07 AM, Michael Hanz wrote:

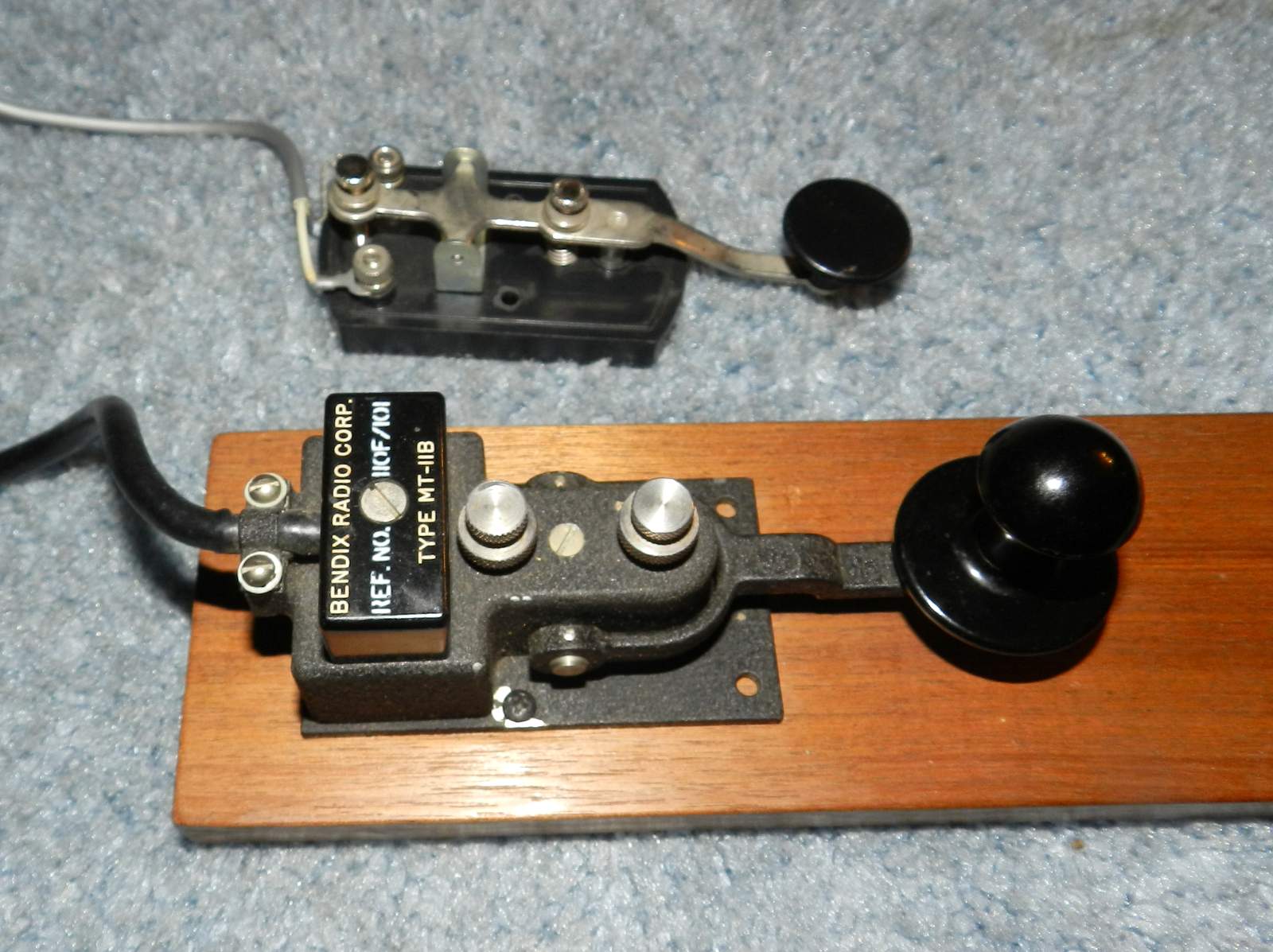

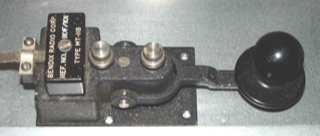

>>> Along with KK5F's excellent coverage of this key, perhaps a photo of an original Bendix MT-11B might be useful.  Sure looks like the 26003 family.
>>>
>>> Bendix was into the radio scene as soon as aircraft became more than a curiosity.  The early aircraft apparently reeked of gasoline fumes on a *good* day, and an open telegraph key that could potentially initiate a spark upon key make or release wasn't a good idea.  Even later, a bullet or shell through a wing could provide a dousing or at least gasoline vapor throughout the cockpit.  The term 'flameproof' seems a bit odd,  except in the context of not lighting a flame in a fuel rich environment.  This in aircraft that had cigarette ashtrays in every plane... 😁
>>>
>>> - Mike  KC4TOS
>>>
>>>
>>>
>>>
>>>> On 6/10/2023 1:43 PM, Mike Morrow wrote:
>>>>
>>>> From the NAVSHIPS 900,109 Navy Type Number book of September 1945, the following information is provided on the four nt-26003* keys:
>>>>
>>>> CN-26003     GM     CN-G-115
>>>> KEY-TELEGRAPH
>>>> FLAME-PROOF
>>>> INSULATED FRAME.
>>>> 05/03/33
>>>>
>>>>      -26003A     GO     RE 26F 111
>>>> HAND TELEGRAPH KEY:   (NAF #37153)
>>>> FLAME PROOF,
>>>> INSULATED FRAME.
>>>> KNOB OF LAMINATED MATERIAL SPEC. 17-P-5 TYPE-PBM.
>>>> 10/11/33
>>>>
>>>> CME-26003B     VA-1     GRE 26J 1154A
>>>> KEY, TELEGRAPH
>>>> FLAME-PROOF
>>>> (SLIGHT IMPROVEMENTS IN COMPONENTS)
>>>> 01/06/38
>>>>
>>>> CME-26003C     VA-2 & VB-1     GRE 26J 1156A
>>>> KEY, TELEGRAPH
>>>> FLAME-PROOF
>>>> SAME AS -26003B EXCEPT FOR LARGER TERMINAL TUBE FOR ARMORED CABLE
>>>> 10/04/39
>>>>
>>>> Note that nt-26003 is associated with transmitter GM, and that nt-26003A is associated with transmitter GO.
>>>>
>>>> nt-26003B is associated with visual signaling equipment VA-1, and that nt-26003C is associated with visual signaling equipment VA-2 and VB-1.
>>>>
>>>> This key is my favorite military key.  I have owned five that were pulled from USN patrol aircraft being scrapped that had AN/ARC-25 (AN/ART-13 with AN/ARR-15A), AN/ARC-38, AN/ARC-38A, or AN/ARC-94 HF radio sets installed.  ALL.were nt-26003A keys.  At least one had the two-minute key-down caution.
>>>>
>>>> Mike / KK5F
>>>>
>>>
>>
>> --
>> Michael Hanz - KC4TOS
