[ARC5] R-508/ARC Conversion

[n2lxm at juno.com]

Greetings ALL,

        Been doing a little experimenting. Found a small audio
transformer with a turns ratio close enough to 600 Ohm and a few K on the

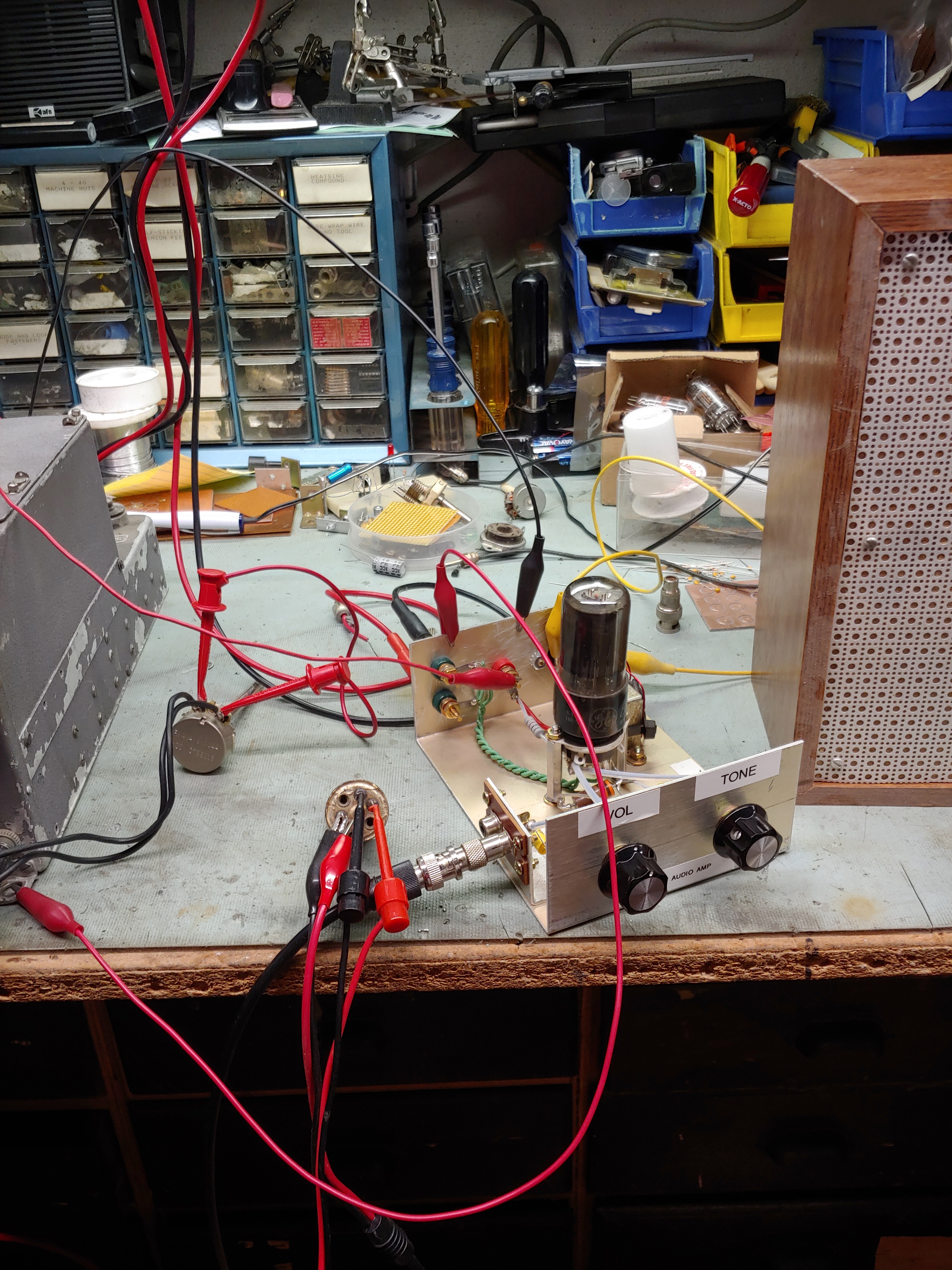

secondary. So with the RF gain line grounded and the transformer feeding
the output of the R-19 to a home brew one tube audio amplifier. I have
more then enough gain to fill the room with audio. Now to check my
storage area for a cabinet, power transformers and choke.



                                                    Jeff N2LXM
                                          Amateur Radio Operator
                                                      American
                                                        Patriot
                                     Proud Father of Two US Marines
