[ARC5] BC-453-B Power Supply

hwhall at compuserve.com hwhall at compuserve.com
Tue Apr 4 21:57:07 EDT 2023

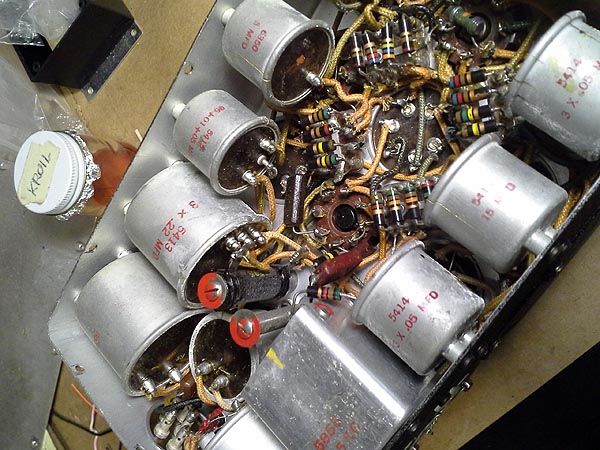

Those Command Set receivers had a B+ dynamotor that supplied 250v at 60 mA. Many people operate the sets on lower B+.  If these little round "flower pot" caps are the ones you're looking at, they aren't soldered shut.  The edges are bent over the mica insulators.  Most people either trash the old cap pots or carefully remove, cut them open, restuff & either glue or solder the cut edge.

WayneWB4OGM

-----Original Message-----
From: Glenn Little WB4UIV <glennmaillist at bellsouth.net>
To: arc5 at mailman.qth.net
Sent: Tue, Apr 4, 2023 7:45 pm
Subject: [ARC5] BC-453-B Power Supply

  I have a BC-453-B that has minimal hacks.
 At a recent hamfest I found a ARN-30 solid state dynamotor replacement.
 This power supply will properly mate with the receiver.
 Should this supply power the receiver properly?
 Some of the can capacitors along the side of the receiver are leaking.
 It looks like these have a soldered on top.
 Is it a lot of trouble to rebuild these capacitors?

 Thanks
 73
 Glenn
 WB4UIV

  --
-----------------------------------------------------------------------
Glenn Little                ARRL Technical Specialist   QCWA  LM 28417
Amateur Callsign:  WB4UIV            wb4uiv at arrl.net    AMSAT LM 2178
QTH:  Goose Creek, SC USA (EM92xx)  USSVI, FRA, NRA-LM    ARRL TAPR
"It is not the class of license that the Amateur holds but the class
of the Amateur that holds the license" ______________________________________________________________
