[ARC5] [Milsurplus] Motor tuned ARR-2 ?

[Michael Hanz]

It's no different than the original switching scheme, Hue, which is step
tuned.  The intent of the C-37/ARR-2A "electric tuning control adapter",
which is synchronized with the compatible C-35/ARR-2A channel selection
switch, was to eliminate the problems of long runs of flex tuning cable
between the receiver and the control box.  That allowed more flexibility
for where they could install the receiver. The motor drive adapter was
cleverly made to be capable of installation on the original R-4A/ARR-2

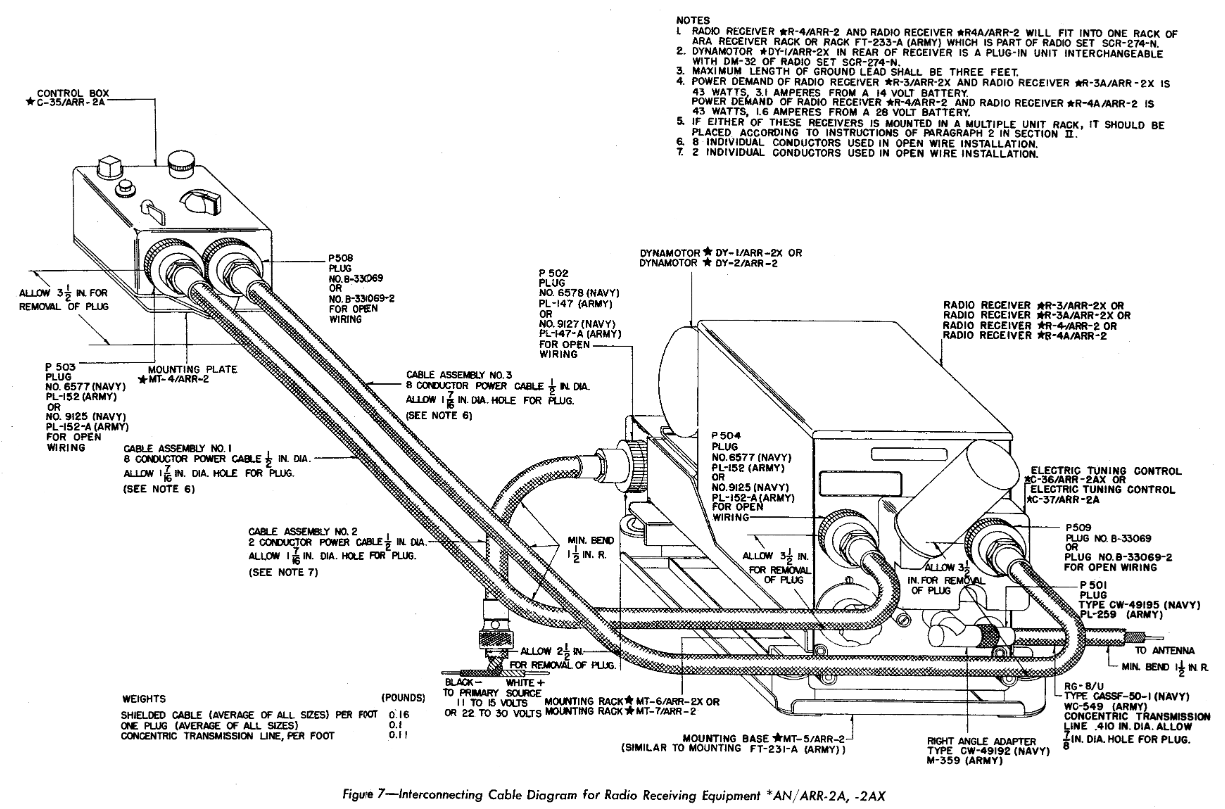

receiver.  Attached is the installation diagram for the whole shebang.

-Mike  KC4TOS

On 5/5/2022 5:07 PM, Hubert Miller wrote:
>
> On Ebay now, this motor tuned ARR-2 receiver. I have not seen one
> before. So how was this controlled; is it continuous
>
> or step tuned?
>
> -Hue Miller
>
> https://www.ebay.com/itm/265677200648?mkevt=1&mkpid=0&emsid=e11021.m43.l1120&mkcid=7&ch=osgood&euid=efdb853c4ce44eeca2af149b9c758b10&bu=43186714112&ut=RU&osub=-1~1&crd=20220505013601&segname=11021&sojTags=ch%3Dch%2Cbu%3Dbu%2Cut%3Dut%2Cosub%3Dosub%2Ccrd%3Dcrd%2Csegname%3Dsegname%2Cchnl%3Dmkcid
> <https://www.ebay.com/itm/265677200648?mkevt=1&mkpid=0&emsid=e11021.m43.l1120&mkcid=7&ch=osgood&euid=efdb853c4ce44eeca2af149b9c758b10&bu=43186714112&ut=RU&osub=-1~1&crd=20220505013601&segname=11021&sojTags=ch%3Dch%2Cbu%3Dbu%2Cut%3Dut%2Cosub%3Dosub%2Ccrd%3Dcrd%2Csegname%3Dsegname%2Cchnl%3Dmkcid>
>
> *WWII Military Radio R-4A/ARR-2 Homing/Navigation Receiver*
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20220505/f0b08b91/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Motor drive ARR-2A.png
Type: image/png
Size: 258854 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20220505/f0b08b91/attachment-0001.png>
