[ARC5] B-29 Radio Operator's Station on August 28, 1943

[Michael Hanz]

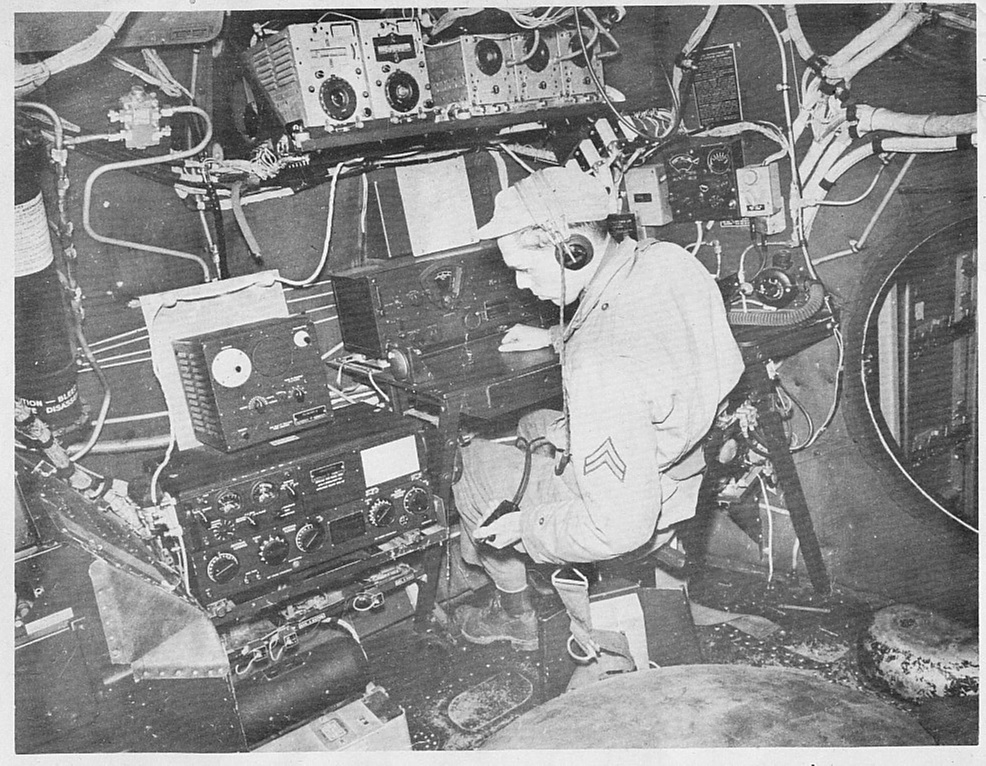

The photo below provides a contrast between the two B-29 transmitter
installations.  You can see what a problem it would be for the radio
operator to set any of the controls on the AN/ART-13.  The radio
operator's chair was _not_ movable front to back until late in the war ,
so all he could do was swivel 90 degrees to the left and bend down to
see the markings in the dark - and they are not conventionally lit nor
electroluminescent in UV light.  He would need a flashlight.  (The
shield underneath the seat has a flight suit heater control on it,
identifying the chair as a fixed tripod type.  More trivia on the chairs
is at https://aafradio.org/flightdeck/Peripherals-chairs.html ).

- Mike  KC4TOS



On 6/12/2022 6:47 PM, Doran Platt wrote:
> It's a B-29 radio position, all right. The difference is in deployed
> airframes where the ART-13 is found in the identical location, down
> left from the radio operator.
> K3HVG
>> On 06/12/2022 2:54 PM Adam Castellani via ARC5 <arc5 at mailman.qth.net>
>> wrote:
>>
>>

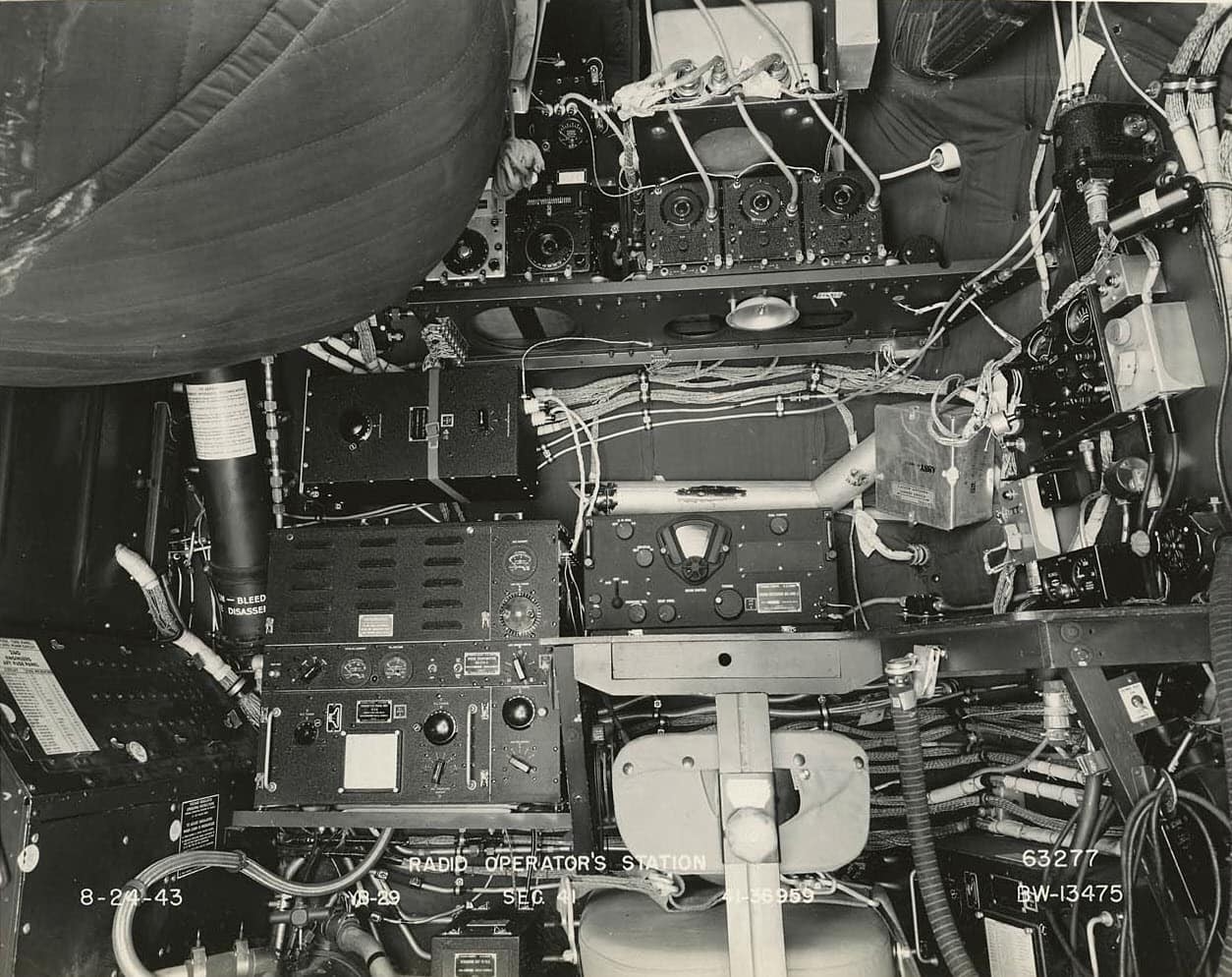

>> Ran across a clear photograph of an early B-29 radio operator’s station.
>>
>> ______________________________________________________________
>> ARC5 mailing list
>> Home: http://mailman.qth.net/mailman/listinfo/arc5
>> Help: http://mailman.qth.net/mmfaq.htm
>> Post: mailto:ARC5 at mailman.qth.net
>>
>> This list hosted by: http://www.qsl.net
>> Please help support this email list: https://www.qsl.net/donate.html
>
> ______________________________________________________________
> ARC5 mailing list
> Home:http://mailman.qth.net/mailman/listinfo/arc5
> Help:http://mailman.qth.net/mmfaq.htm
> Post:mailto:ARC5 at mailman.qth.net
>
> This list hosted by:http://www.qsl.net
> Please help support this email list:https://www.qsl.net/donate.html

--
Michael Hanz - KC4TOS
