[ARC5] BC-946

[Michael Hanz]

On 1/2/2022 8:53 PM, Waldo Magnuson via ARC5 wrote:
>     Yes, black wrinkle.  Actually it is not a BC-946 but a Navy type CBY-46145, s/n is 1593, so it’s probably an early one.
> Skip W7WGM


Then you need the Navy ARA receiver schematic.  That's not the Signal
Corps BC-946, which was purchased under an USAAC contract. The ARA
schematic is attached.

The usual way to match the high impedance to low impedance earphones is
a transformer with a male phone plug that was intended to bridge the gap
between high and low impedance equipment deliveries.  The Signal Corps
was faced with that problem in the last half of the war, and produced

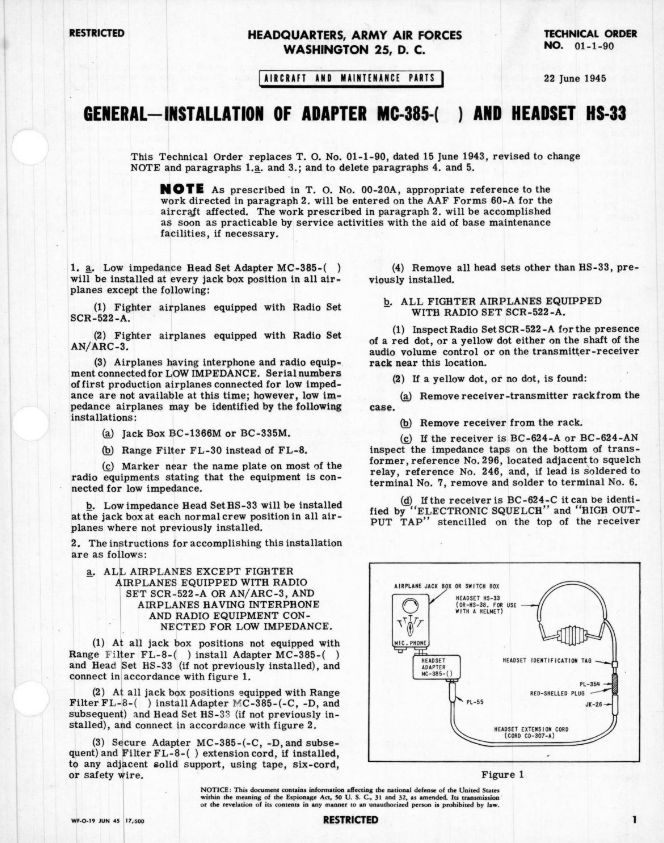

several variations of the MC-385 (TO-01-1-90 attached.)

I'd be happy to send you one of these gratis if you wish.  Just plug it
into your phone jack and plug in the headphone into the MC-385. Easy-peasy.

           73,
  - Mike  KC4TOS
