[ARC5] (Once More, With Feeling) My GF-10 RU-15 Rig (was: holy smoke...)

[David Stinson]

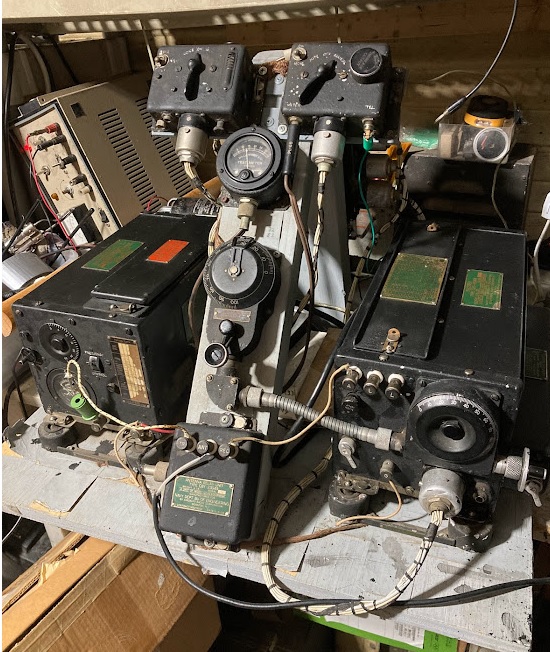

OK.  Here is my 1939 Navy Reserve
"Green Tag" GF-10 / RU-15 set:


And here is a link to the video of it receiving, listening
to W5 "Hot Rod Ford" on 3880 KC last night:

https://photos.app.goo.gl/nQv4Hm9Jb1BTLhwe7

This is with the RX B+ cranked-down to about 90V.
Unlike the "ARC-5," it doesn't sacrifice much volume
at that low level.  If you're wondering how I got
the B+ down: The "green tag" dynamotor in the back
was shipped with about 2 MM of padding and, of
course, was dropped.  This warped the end support
for the armature, which is unrecoverable without
advanced tools (I do have another green tag dyno).

I removed the dyno brushes and fed a regulated
adjustable B+ (floating ground) supply in through
the brush contacts, which works well.  Have parts
coming to build a 12V to 440V DC-DC board inside
the empty Dynamotor shell.  I might even get it done
before Judgment Day.

Am still looking for a GF-10 / RU-15 "green tag"
meter, "coffee grinder," TX control box and
"green tag" RX / TX coils.
Trade or purchase.

GL OM ES 73 DE Dave AB5S

--
