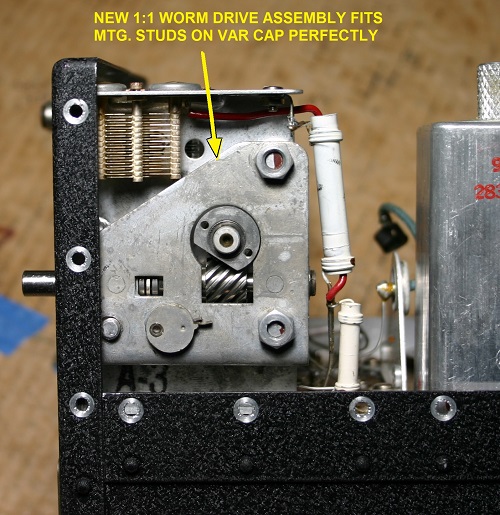

I got this hacked R-27 at the TRW Swap Meet this past weekend. It has a
1:1 ratio worm drive assembly installed in place of the regular worm
drive with its tuning shaft projecting through a new hole that is 7/16"
above the hole for the regular tuning shaft. The dial and all of the
gears for it have been removed and a 3/16" thick aluminum backer plate
has been installed behind the panel to cover up the holes for the dial
shaft and regular tuning shaft. Nine new holes have been drilled in the
front panel to accomplish these mods.

My question is, were did this 1:1 gear drive come from?  It fits the
mounting studs on the R-27 tuning capacitor perfectly, like it was made
for the job.  A half turn on its shaft smoothly turns the tuning cap
through its full range.  I've seen bevel gears to accomplish a 90-degree
change in shaft direction before but never 1:1 worm gears.

Mike, W6MAB






--
