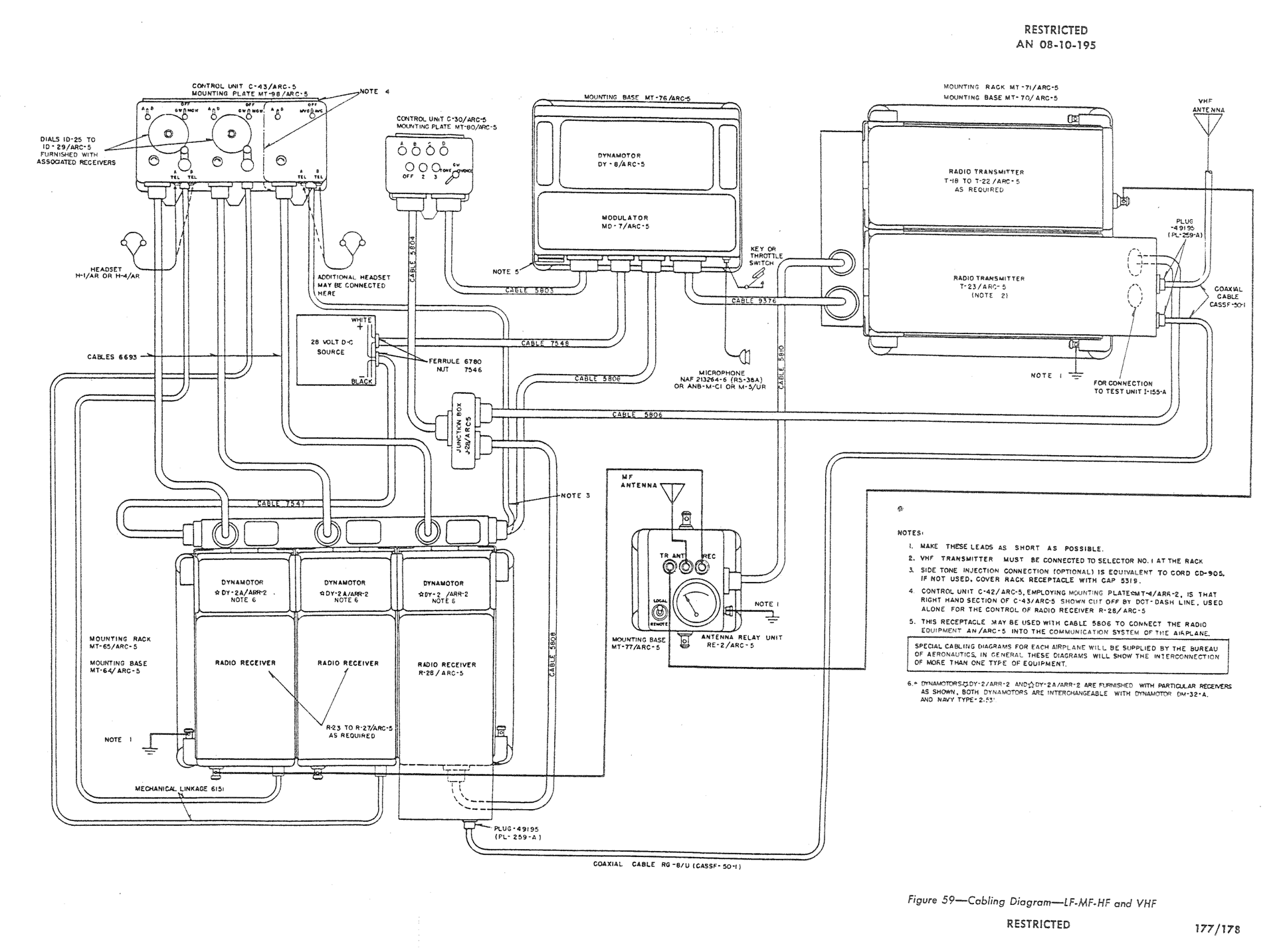

The multi-transmitter diagram from the Volume 2 manual is below, Mark.
I don't think the control will work that way.  It is supposed to select
one of four _frequencies_ in a _single_ VHF transmitter OR one (of two
possible) HF transmitters that are then able to have their frequencies
tweaked by the operator, just like always.

At least that's the way I see it working.

- Mike  KC4TOS



On 10/26/2021 10:23 AM, MARK DORNEY wrote:
> One thing I have noticed with the C-30 control. Only 1 button will
> remain pushed at any one time. If you press “2” , and then press “A”,
> the “2” button pops back up. I am thinking that the C-30 control is
> deaisigned to operate up to 6 transmitters, especially since the
> transmitters are not tunable by remote.  Transmitter frequencies were
> set and locked before flight unless the aircraft had a dedicated radio
> operator ( in which case both the transmitters and receivers would not
> use remotes ).
>
> “In matters of style, float with the current. In matters of Principle,
> stand like a rock. “.   -   Thomas Jefferson
>
> Sent from my iPhone
>
>> On Oct 25, 2021, at 10:35 PM, Michael Hanz <aaf-radio-1 at aafradio.org>
>> wrote:
>>
>>  It can, and does control three transmitters when desired. Page 50
>> in _Volume 2_ of AN 08-10-195, "Handbook of Maintenance Instructions
>> for AN/ARC-5 Radio Equipment (VHF Components)" covers the operation
>> and capabilities of this control box.  Its greatest drawback was
>> simply the unreliability of the push button switches, which
>> deficiency it shared with the SCR-522 VHF set control box.  Its
>> replacement,  the C-30-A/ARC-5, reverted to the simple rotary
>> switches used for other functions in the other control boxes and the
>> problems went away.  Too bad they didn't have DeoxIT back then.  😁
>>
>> - Mike  KC4TOS
>>
>> On 10/25/2021 8:36 PM, MARK DORNEY via ARC5 wrote:
>>> I also have a C-30/ARC-5 Control Box and am interested. Can this
>>> control box be used to control 3 Transmitters?
>>> Mark D.
>>> WW2RDO
>>>
>>>> On Oct 25, 2021, at 1:53 PM, dennis via ARC5 <arc5 at mailman.qth.net>
>>>> wrote:
>>>> i have the C-30/ARC-5 control unit push button type i know abcd
>>>> are channel select, lower button one is for off/on, the lower nos #
>>>> 2&3 what are they used for  also can i use the control unit on a
>>>> T-19 T22 TX if so is this control box wired the same as the
>>>> C-29/arc-5 or different wiring  any type of help tnx dennis ka9dzr
>>

--
Michael Hanz - KC4TOS
