[ARC5] Resistance Table results my BC454

[Chris Hu]

Hi,
I got an ARC-5 receiver BC454 untouched in terms of wiring.
I've replaced the capacitors, and once it is ready for plug the power I did
the test of the Resistance to ground terminals

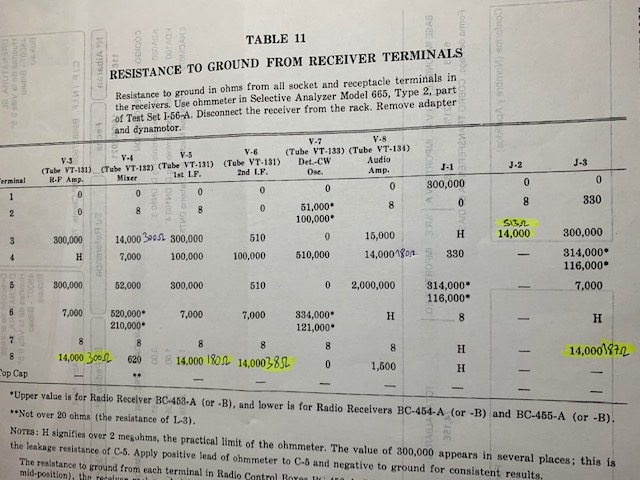

Please check the pic attached.
Almost all of them are OK, but those they should mesure14.000 Ohms, they
are lower. I checked twice everything, change lamps VTs, for different
ones.But not matter what  I do, it notpossible to reach the 14K Ohms or
close to it.
Any idea to help, please?
Regards and 73s
Christian
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20211118/8a49f458/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: resistance table.jpg
Type: image/jpeg
Size: 100051 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20211118/8a49f458/attachment-0001.jpg>
