[ARC5] 6AQ5 versus 5763

[David Stinson]

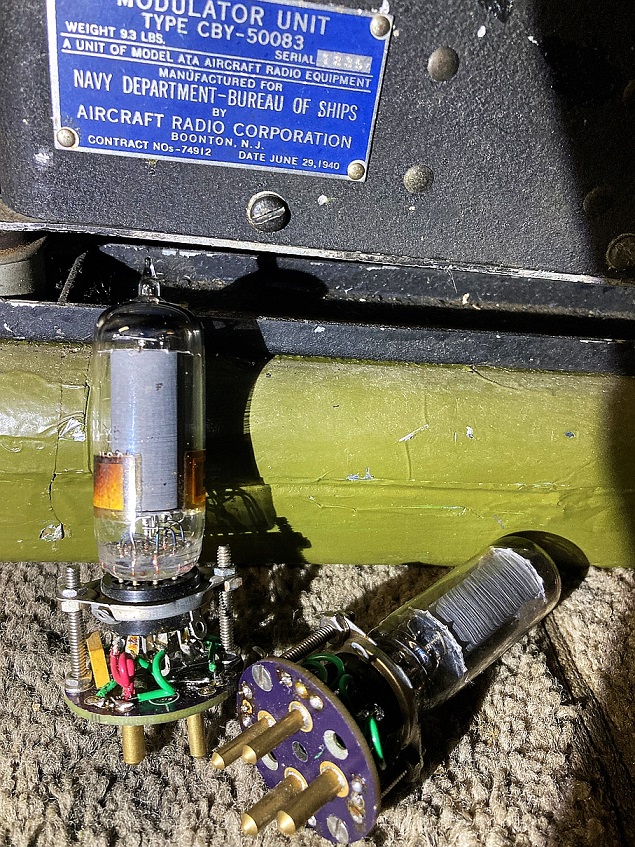

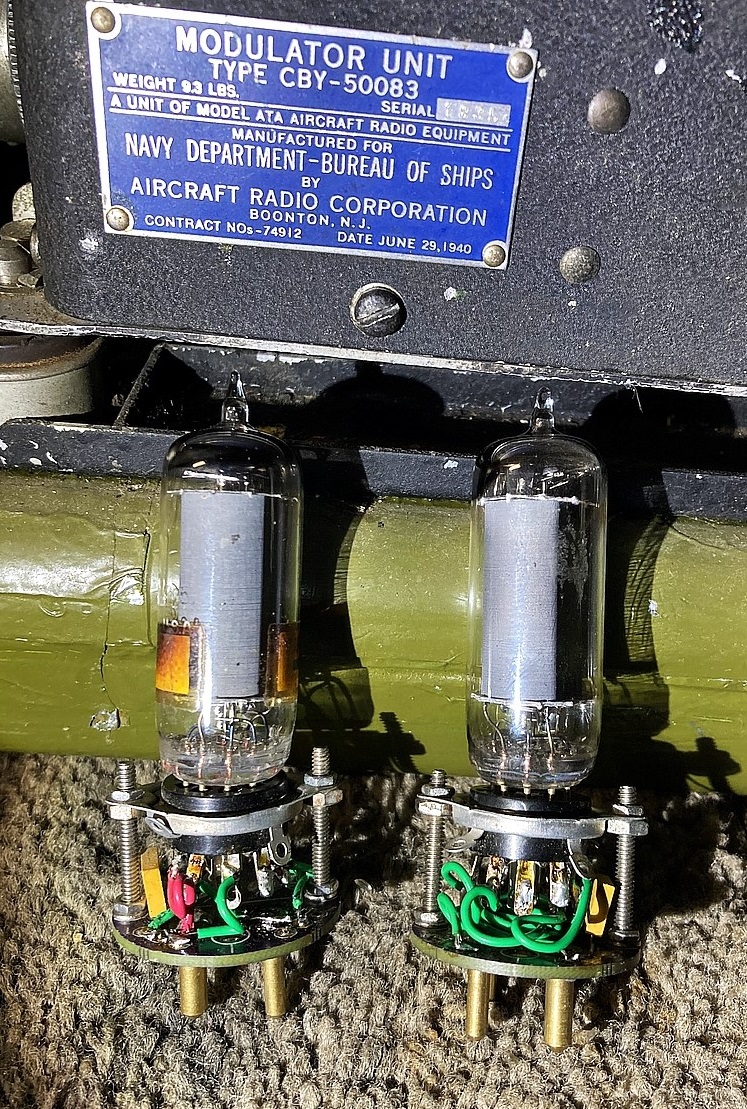

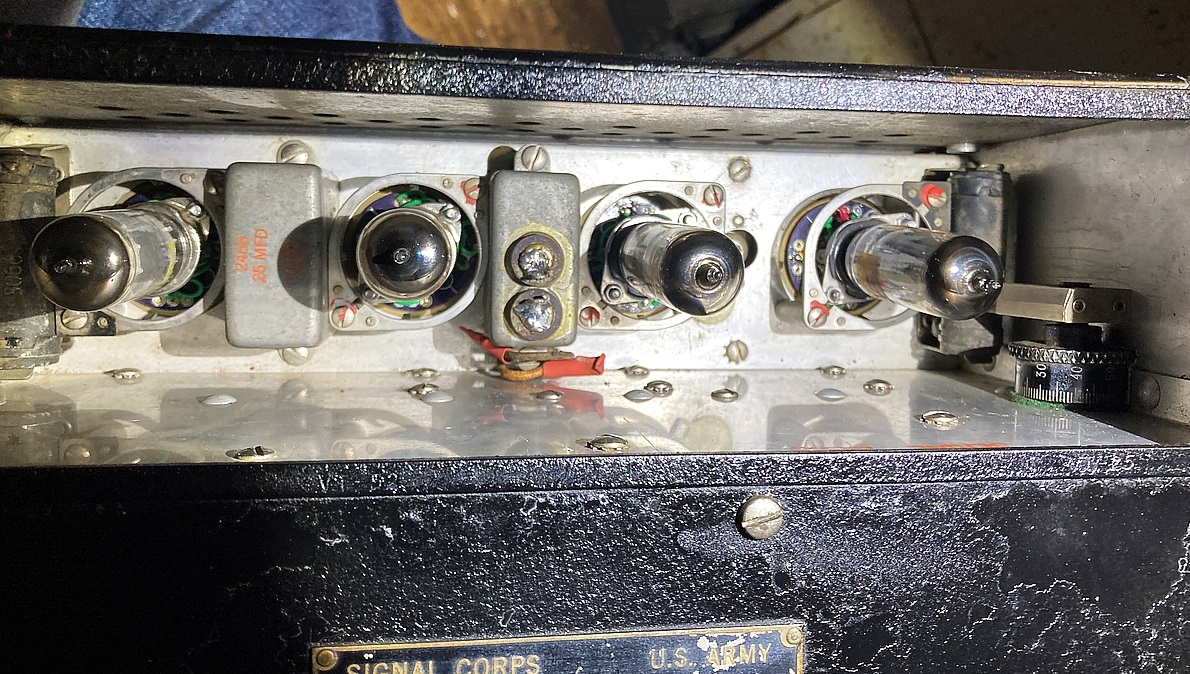

Here are 5763s mounted for BC-230 using Ben's
adaptors.  The yellow cap you see is across the filament
connections, to keep both the end connected to the tube
cathode and both ends of the filament at the same RF potential.
When using the 9-pin sockets, the "ears" of the socket outside the
mounting nuts must be trimmed to fit the original tube guides.
Dave S.

--
