[ARC5] FW: FW: Jeeps with Radio Equipment

Fri Jul 30 16:29:43 EDT 2021

Mike

I pushed the contrast on your photo and it revealed a nice single channel setup resting in the rear seat. Transmitter, receiver, modulator and TR relay. Nice!

Steve

ke5o

From: Michael Hanz <aaf-radio-1 at aafradio.org>
Sent: Friday, July 30, 2021 12:37 PM
To: ke5o at sbcglobal.net; ARC5 at mailman.qth.net
Subject: Re: [ARC5] FW: Jeeps with Radio Equipment

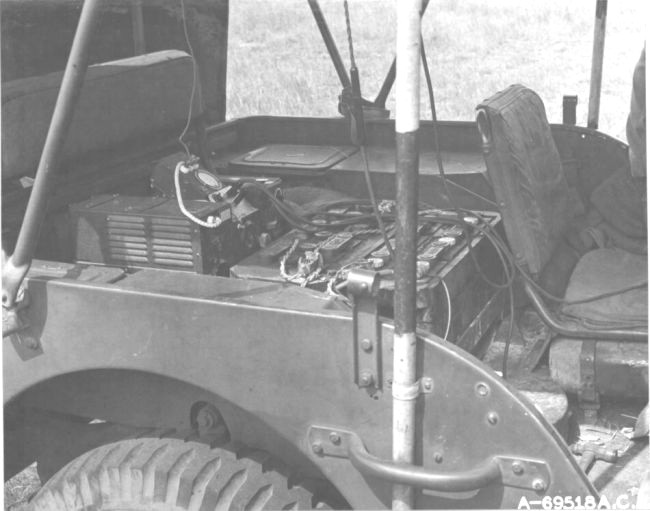

That makes sense to me, too, Steve.  After all, the radios came from USAAF supply - both Homelite and Eclipse had APU's in the 2,000 watt range.  Why not grab one of those little guys?  It would eliminate all the conversion effort and makeshift scrounging of transmitter dynamotor, relays, etc...  Plus, it would make replacement a drop-in from normal stock.  A pair of those batteries like the ones below looks like they would fit under the radio set in the Iran photo.  Easy peasy.
- Mike

On 7/30/2021 12:51 PM, ke5o at sbcglobal.net <mailto:ke5o at sbcglobal.net>  wrote:

I am not seeing the PTO generator so where is the 12 volts coming from? I would guess the jeep has 24 volts in batteries under the radios that are charged with an APU.

Steve G

Ke5o

From: arc5-bounces at mailman.qth.net <mailto:arc5-bounces at mailman.qth.net>   <mailto:arc5-bounces at mailman.qth.net> <arc5-bounces at mailman.qth.net> On Behalf Of MARK DORNEY via ARC5
Sent: Friday, July 30, 2021 10:38 AM
To: Dave Merrill  <mailto:r390a.urr at gmail.com> <r390a.urr at gmail.com>
Cc: ARC-5  <mailto:arc5 at mailman.qth.net> <arc5 at mailman.qth.net>
Subject: Re: [ARC5] Jeeps with Radio Equipment

The radios may not be ARC-5, SRC-274 or ARA radios. They may be an earlier look-a-like that ran on 12 volts. Either that, or parts were scrounged and radios were heavily modified. As far as meeting AAC limits, that may not have really mattered. These were definitely not built to some factory spec in this application. All that mattered is that they work and fill a mission need.

Mark D.

WW2RDO

“In matters of style, float with the current. In matters of Principle, stand like a rock. “.   -   Thomas Jefferson

Sent from my iPhone

On Jul 30, 2021, at 11:26 AM, Dave Merrill <r390a.urr at gmail.com <mailto:r390a.urr at gmail.com> > wrote:

I could see rewiring the filaments for 12 VDC, but what about the relays? Aren't they all 28 VDC?

Dave N9ZC

On Thu, Jul 29, 2021, 12:41 AM Bill Pileggi <wpileggi at juno.com <mailto:wpileggi at juno.com> > wrote:

Slightly over 10 years ago (June 2011) , there was a mention on this list of a photo of a Jeep with ARC's in the rear deck. At the time, they would have provided a link. Don't know what the link is now... Nobody seems to have brought it up... As a bonus, there's a B-24 in the background.

So, I'm attaching. It's about 89 Kb.

Bill KA3AIS
