[ARC5] need RF ANT module for RBC-2

[J Mcvey]

 The good news is that only the two primaries were smoked. I think the reast is OK.I may be able to find a form that will match up with the original and rewind the primaries.I even have very detailed info to do that!However, I would prefer the original if it can be found.

    On Friday, July 2, 2021, 12:12:41 PM EDT, Christopher Bowne <aj1g at sbcglobal.net> wrote:

 When I was a novice operator back in 1967, a nearby lightning strike apparently fried the input winding of my EH Scott SLRM receiver Band 3 RF amplifier antenna coupling transformer.  (Most important one as Band 3 tuned 80 and 40 meters).  I was able to wrap in new windings around the coil from without removing either the coil or anything else.  Still in there working fine over 54 years later!
Chris AJ1G Stonington CT


Sent from my iPhone

On Jul 2, 2021, at 10:09, J Mcvey via ARC5 <arc5 at mailman.qth.net> wrote:



 Picture of T202 damage in the RF module

    On Thursday, July 1, 2021, 11:28:13 PM EDT, J Mcvey via ARC5 <arc5 at mailman.qth.net> wrote:

 Looks like someone transmitted directly into the antenna terminal on one of the bands.T202 was fried to a crisp! Even melted the form!
______________________________________________________________
ARC5 mailing list
Home: http://mailman.qth.net/mailman/listinfo/arc5
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:ARC5 at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: https://www.qsl.net/donate.html  <RF_mod_burned_T202.JPG>______________________________________________________________
ARC5 mailing list
Home: http://mailman.qth.net/mailman/listinfo/arc5
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:ARC5 at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: https://www.qsl.net/donate.html

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20210702/cdb3cca0/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

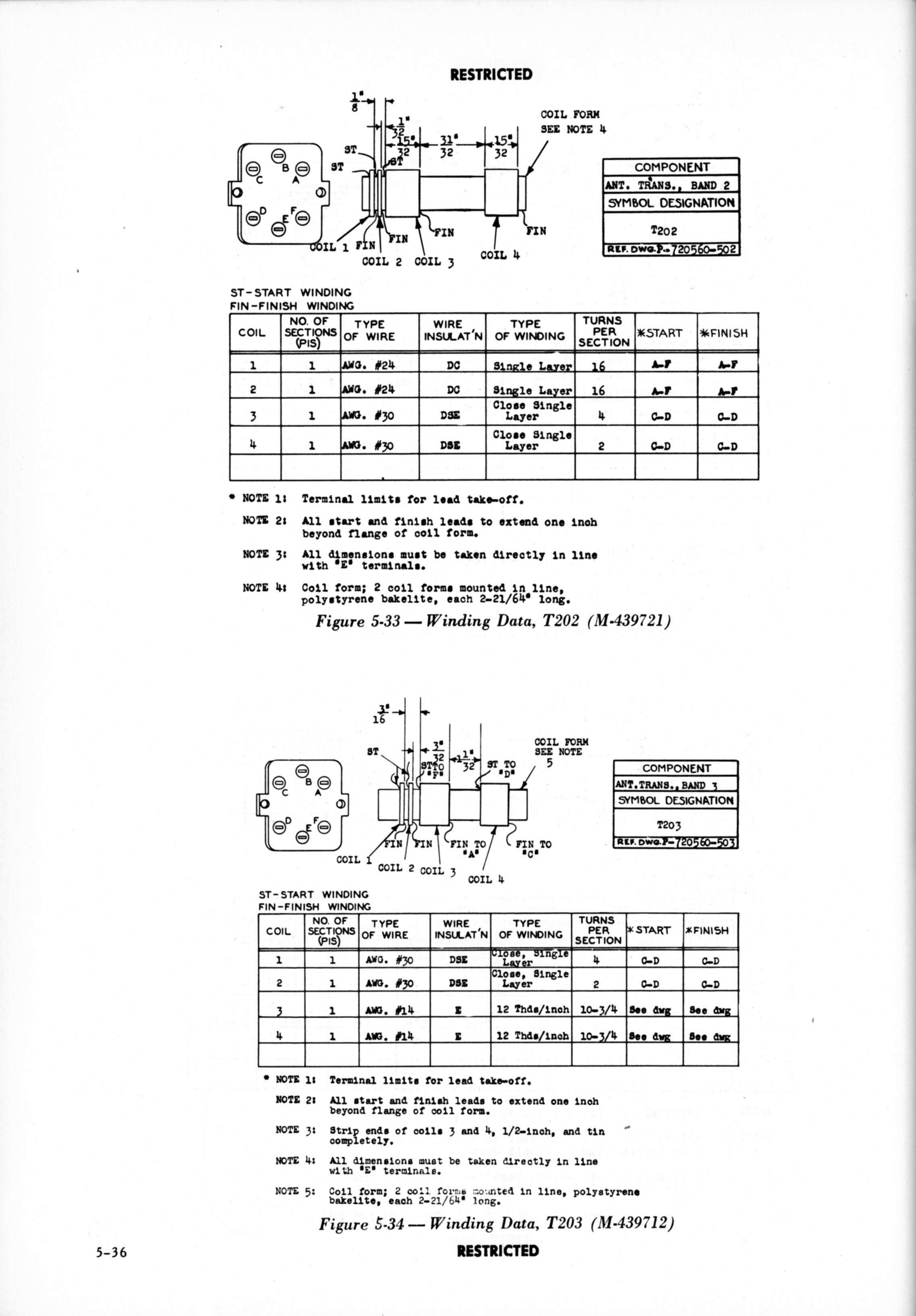

Name: RBC_T202_detail.png
Type: image/png
Size: 3196131 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20210702/cdb3cca0/attachment-0001.png>
