[ARC5] solid state vibrator basics

[J Mcvey]

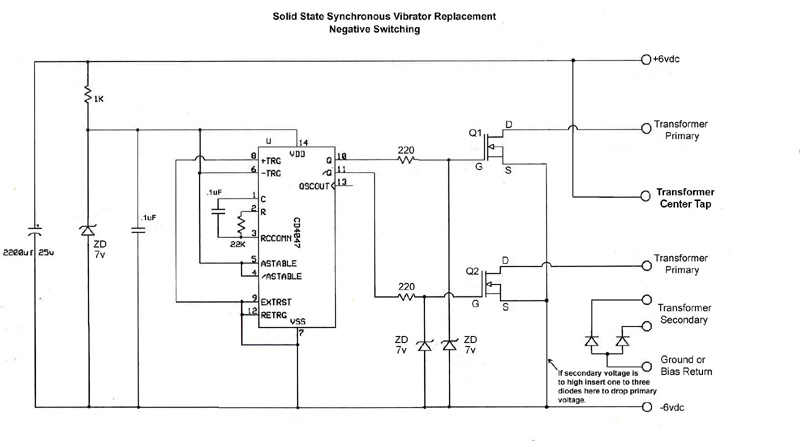

This not specific for your vibrator, but the concept works for any of them, you just have to wire to the correct pins for your particular type.
The synchronous contacts ( if any) are replaced by rectifier diodes ( in the correct polarity , of coarse).
The oscillating frequency is approx 110 Hz
I used BUZ11 mosfets with good results.
The zeners can all be adjusted to 12V , since the mos gates are good to 20V and the 4047 is 18v max.
