[ARC5] Wow...12 to 24v converters

[Michael Hanz]

On 8/1/2021 3:23 PM, Hubert Miller wrote:
> Fair Radio for some years sold a cubical box with something like 8 inches on a side,
> that converted 12 DC to 24 DC. What was that thing for?


Not sure about Fair Radio, but there _was_ a 12 to 25v general purpose
supply made for aircraft use - the PP-18/AR, supplying up to 1.5 amps

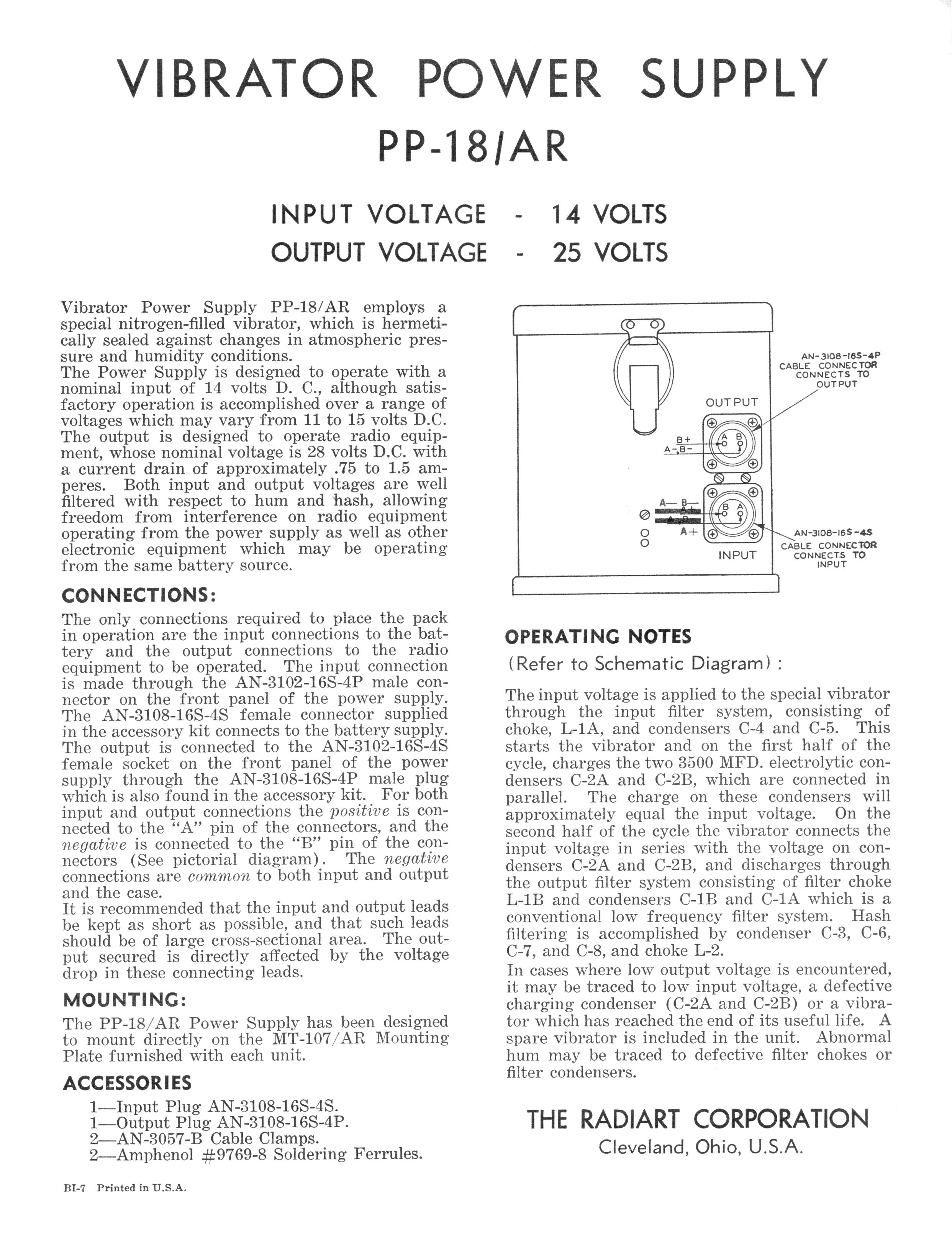

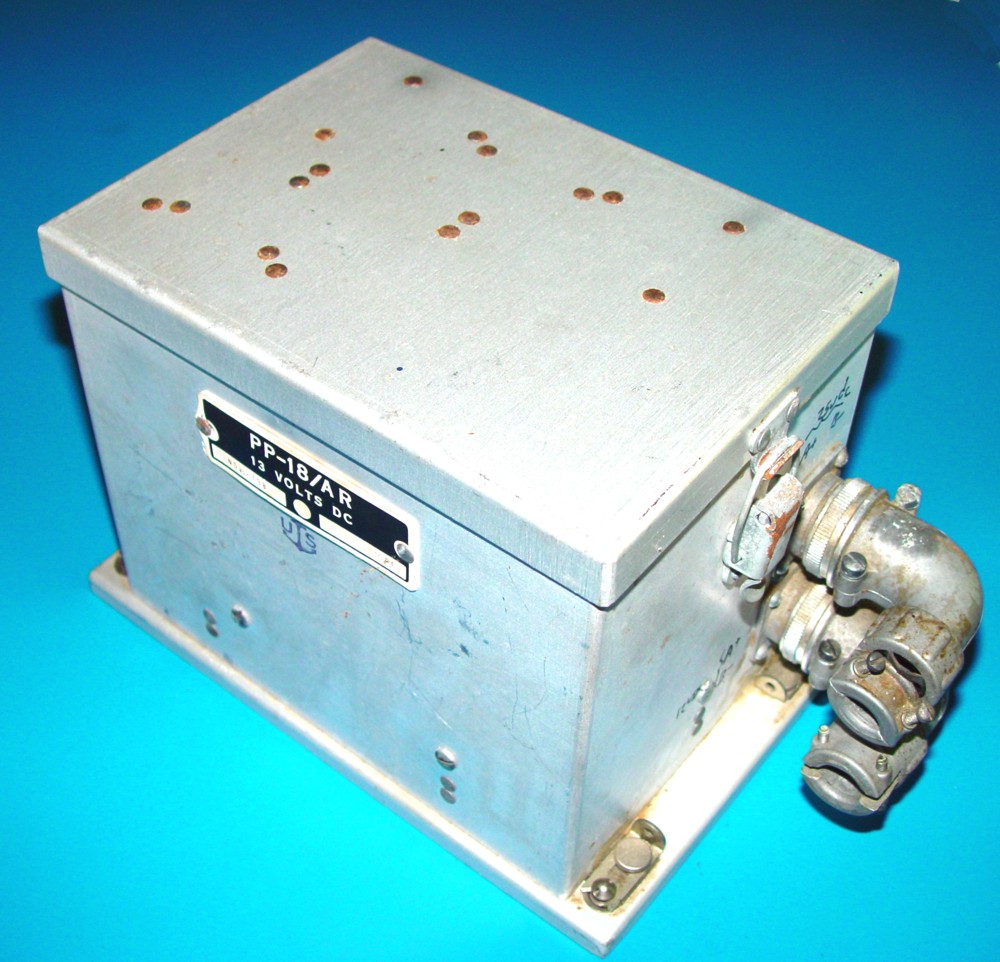

output.  See attached data sheet and photo.  I've never tired to bring
it up, but the vibrators are sealed with nitrogen, so there may be a
chance for it working.  Note the delicate correction of the input
polarity errata.  😁

- Mike  KC4TOS
