[ARC5] RCA AVA-120 antenna questions and some other ones too...

[Michael Hanz]

On 7/11/2020 5:53 AM, Craig via ARC5 wrote:
> Hey all, looking for some help with AVA-120 antenna stuff. I'm doing
> up a set of drawings for the reel and mounting plate for the AVA-120
> antenna that was used in the L-birds and have a couple of questions
> for the group. The biggest question is how did the antenna feed
> connect to the wire on the reel. The best that I can figure out is
> that the lead is connected to the flexible conduit from the reel to
> the mast and the conduit acts as a contact shoe. Anyone know if this
> is correct, or if not, what is? Several of the guys that need reels
> are also interested in making their radios function, at least on the
> receive side.

This document might give you some ideas:
https://aafradio.org/docs/1936_NRL_Antenna_Reels.pdf  - It also has the
Navy specs for the stranded wire at the bottom.

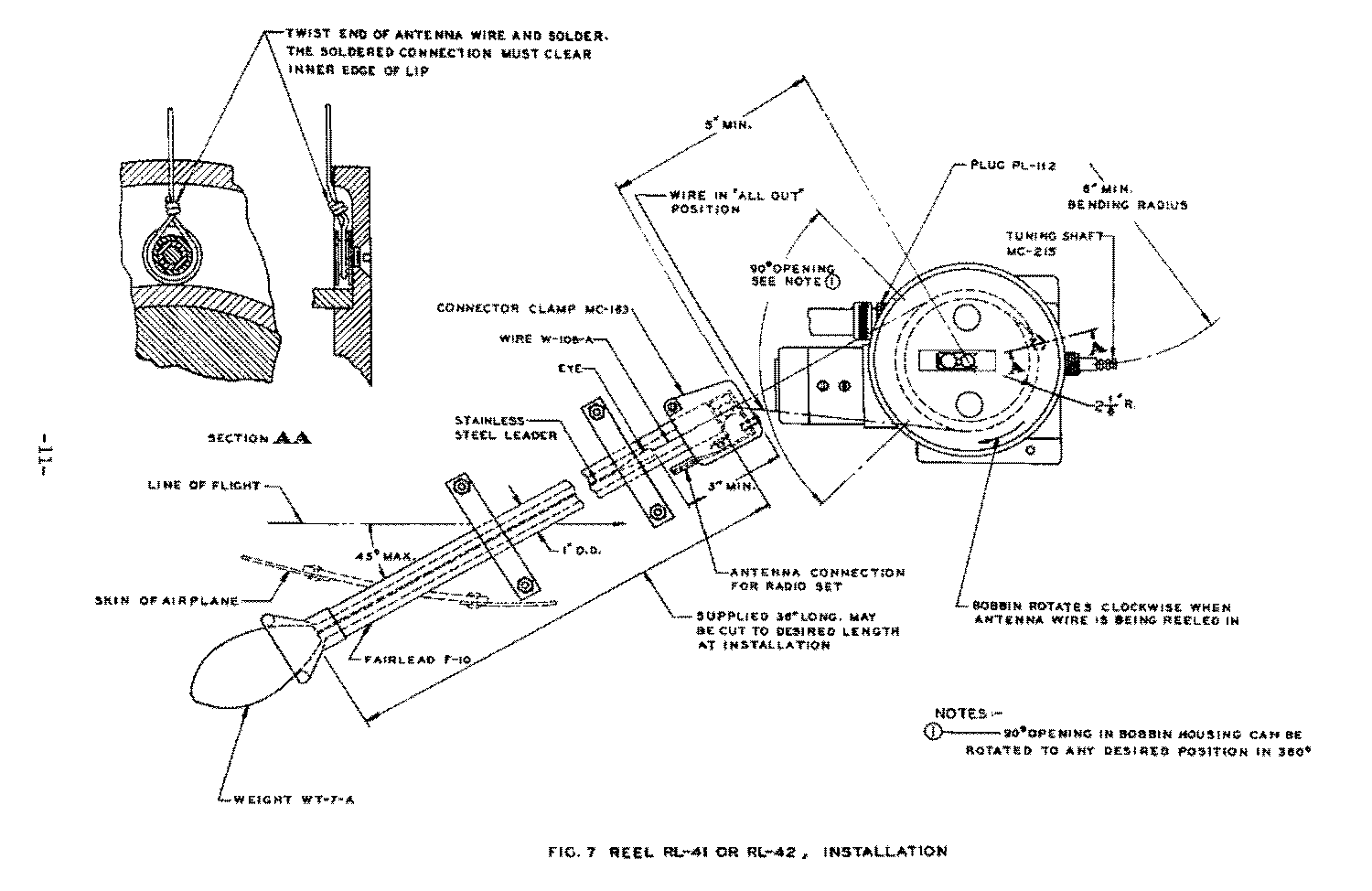

Also attached is the RL-41 and RL-42 page for the wire connection they
used - it was in the fairlead.

> The other help that I am looking for on these is anyone have the spec
> or an actual quantity of the MI-5912-3 wire used for the antenna? All
> I know about it, is that it's a woven wire and 125 feet of it weighs 9
> ounces.

Not sure what wire they used for the AVA,  but as far as I know, the US
Navy was the Service preferring stranded wire in WWII.

> Last question, does anyone have an W-106 or W-106A antenna wire, or
> the specification for it? I either need to find some, or at least find
> the spec for this wire for the radio installation for my Fairchild. I
> haven't been able to locate any, or the specification in my searches.
> I found a couple of companies that list that they can obtain it, but I
> would rather not buy a 5000 foot spool to get the 175 feet or so that
> I need.

The original W-106A copper clad wire is .039" in diameter, according to
a B-29 drawing I have here for the liaison antenna, but I just use #18
Copperweld, which is about .001" larger in diameter.. Though there are
plenty of vendors, I've gotten the copper clad wire for years here -
https://thewireman.com/product/antenna-wire-18-awg-copper-clad-steel/

           73,
  - Mike  KC4TOS
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Reels RL-41, RL-42 and Reel Control Box BC-461 Page 20.png
Type: image/png
Size: 43558 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20200711/e0ef8b48/attachment-0001.png>
