[ARC5] T23/R28 dynamotor mounting posts

[Hans van der Marel]

Thanks Mike,



Great drawing, it will be no problem to make them now.



The one screw left is on my photo with the washer. As those were behind the metal can cap it should be the original pieces.

The small screw is a cap mounting screw for reference.



Hans PE1KWH







Van: Michael Hanz
Verzonden: donderdag 2 januari 2020 17:29
Aan: hvandermarel at xmsnet.nl; 'ARC-5' <ARC5 at mailman.qth.net>
Onderwerp: Re: [ARC5] T23/R28 dynamotor mounting posts

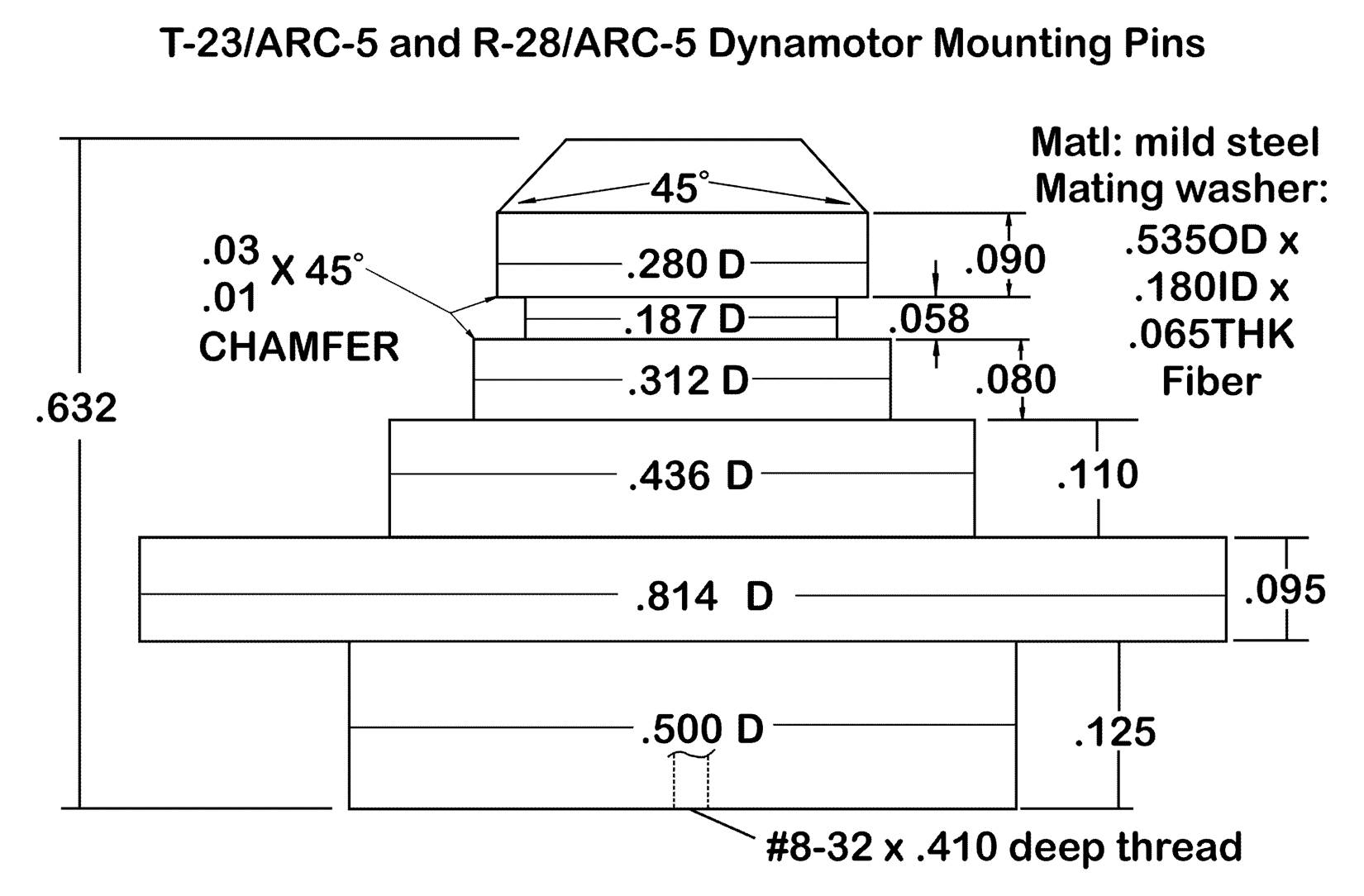

Fabrication sketch below.
       73,
Mike  KC4TOS
