[ARC5] Amazon Sig Gen as Crystal Subber

[David Stinson]

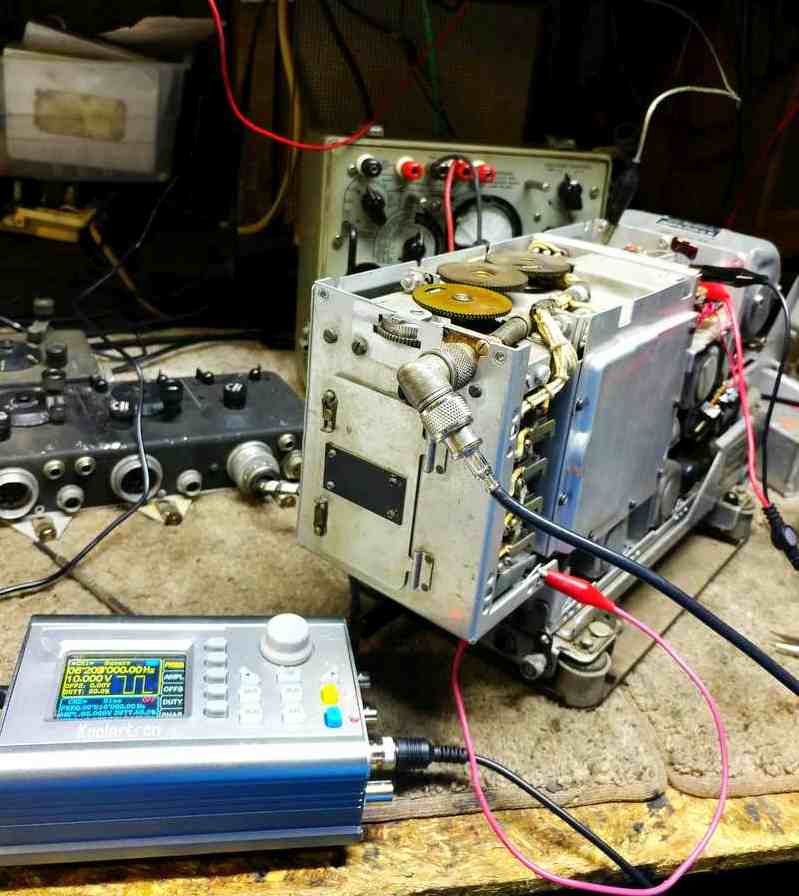

Re: Using the DDS generator to sub for crystals in the "ARC-5" VHF receiver.
Did a more complete look at this issue with the service monitor and scope.
At least with the ARC-5 VHF receiver, a CMOS square-wave output,
swinging from 0 to 5V, coupled through a DC-blocking .02 uFd cap, drives
the stage just fine.  Sine wave output will not work.
Drive voltage above 4 to 5 V peak does not improve performance.
Dave S.

> On Mon, Apr 6, 2020 at 8:40 AM David Stinson <arc5 at ix.netcom.com
> <mailto:arc5 at ix.netcom.com>> wrote:
>
>     If you use one of these nifty DDS sig gens from Amazon to sub for
>     a crystal, ...
>
>
