[ARC5] GO-9: Cathode Mod Questions

[David Stinson]

Good Morning.  The GO-9 (a.k.a. "The Snake") is making regular AM
contacts on 75 meters.  I am using Cathode modulation because Suppressor
or Screen modulation will require chopping, drilling and hacking on the
HF Transmitter deck.  I am unwilling to do that.  The only
"modification" to the HF Deck now is to lift one ground and add one
wire.  Want to keep it that way.  Cathode modulation can be done
entirely in the home-brew power supply.

A 20-Watt PA amp with output taps of 4-8-16 Ohms and 70-Volt Line.  This
is feeding a Thordarson T-22S83 15W Line-to-Voice Coil transformer.  The
transformer secondary side has 4-8-16 Ohm taps. The primary has
2000-1500-1000-500 Ohm taps.   The PA amp 4-Ohm output is connected to

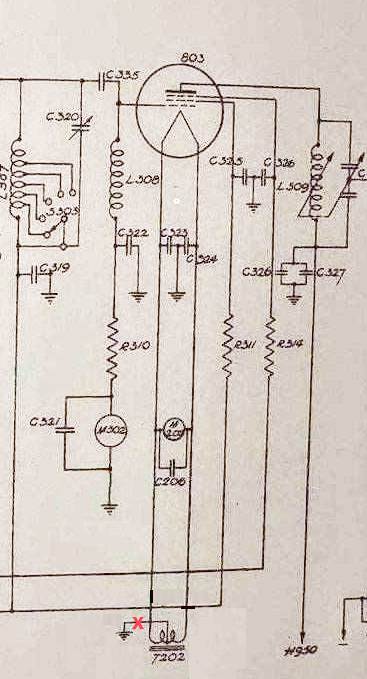

the transformer 4-Ohm tap.  The transformer 2000-ohm winding is inserted
in the 803 PA's cathode circuit at the filament transformer's center-tap
connection to ground.  See the attached graphic.  The transformer is
passing about 200 mA at no modulation.   With the transmitter B+ set to
provide 100W carrier out, this provides about 80% modulation before
flat-topping and distortion.  Reducing the output power to 60w or so
will get it near 100%.  On-air audio reports have been good. The
transformer does not significantly heat-up, even on long transmissions.

I have attempted to use a couple of "actual" modulation and "audio
output" transformers, using "cut and try" methods.  None of these would
do better than 50% modulation before flat-topping and distortion,
probably at least in part due to impedance mismatches.  They sound crummy.

I don't know much about the "right way" to do Cathode Modulation.  How
does one determine the "correct" impedance transform at this point, how
much audio power is actually needed, etc?  Who's the expert?

TNX OM DE Dave AB5S
P.S. If mailman would allow Bcc, it could cut-down on duplicate mail.
