[ARC5] Stuck set screw

[Michael Hanz]

These set screws are rarely easy to remove after so many years of being
untouched.  The other problem is the short distance from the screw to
the control panel, which limits what you can get in there to help.

The single most effective way I have found to break it loose is to
emulate an impact wrench.  Sometimes you can use the L shaped Bristol
wrench for this, hitting it with a small hammer while holding it with
needle nose pliers applying CCW torque.  Protect the panel from wild
rebounds with some sort of cover - I learned that the hard way.

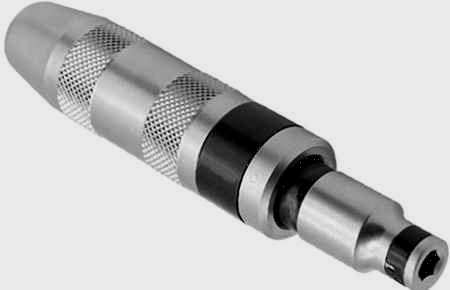

If that doesn't work, by removing the plastic handle of a DS series
Bristol screwdriver, you can adapt it to an extension bar and use it
with one of the _small_ impact driver tools. (Yeah, I know, it pains me
to modify a good tool like that, but if you get desperate enough...)
You also have to cut the spline down in length to a very short section
to reduce the torsional twist of the spline during the jolt (a long
spline absorbs the torque like a torsion bar), but 9 times out of ten it
will get the screw out with one light blow.  Use a _small_ hammer, not a
5 pound sledge.  I think sometimes they used a drop of lacquer on the
screw as a locking mechanism back in the day.




If all else fails, the screws _can_ be drilled with an appropriately
sized _carbide_ drill.  The screws are usually hardened, but a carbide
bit will do it without working up a sweat.  If you use two drills, one
the outside diameter of the Bristol wrench followed by the second being
the minor diameter of the set screw thread, it will usually stay
centered.  Use medium speed, light pressure.  You still may have to make
some sort of adapter to connect the drill to the rotating mechanism -
unless the knob is close to the edge of the panel, conventional chucks
are usually too big and require tilting of the drill to the point where
it's not very helpful in getting to the contact point on the shaft.

If it's essential to get it out with minimal damage, there are firms
that specialize removing these and broken taps with EDM (electrical
discharge machines).  It will depend on how much you want to spend.

           73,
  - Mike  KC4TOS

On 11/17/2019 2:08 PM, Waldo Magnuson via ARC5 wrote:
> The set screw in the audio volume switch on a C-1254A control unit IS a Bristol set screw. The wrench fits tightly, I’ve used Blaster penetrating Oil but even with excessive torque the screw has not come loose. Any suggestions- heat/cold/drill?
> Skip W7WGM
