[ARC5] Crummy Grounds

[David Stinson]

An example of what, in my experience, is becoming
as
big a problem for Boatanchor and Mil-Radio folks
as are old capacitors: Hi-Z Grounds.

Filaments wouldn't light on a BC-230 transmitter.
The bottom pin on the connector should be at
chassis ground. A wire runs from that pin to a
ground lug at one of the connector mounting
screws.

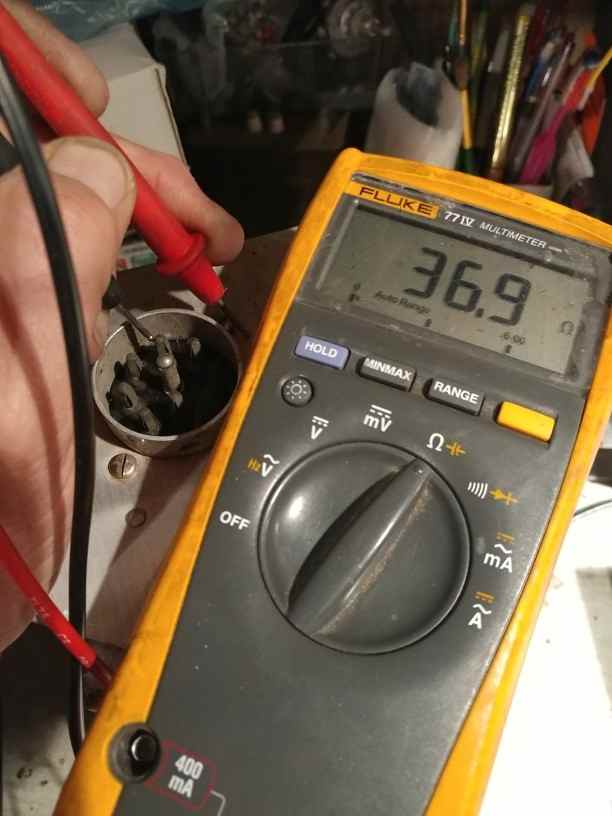

Measurement from the pin to chassis was 37 Ohms-
more than enough to drop all that filament
Voltage.

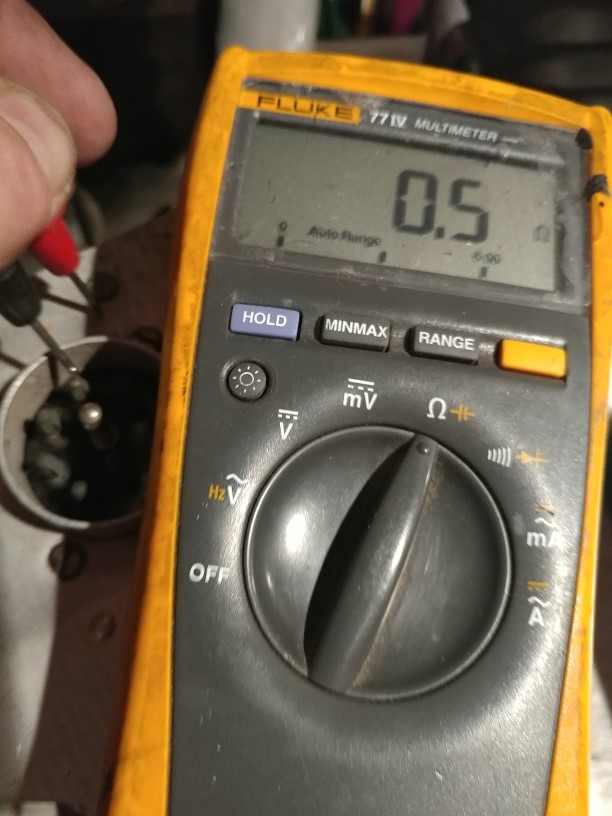

A drop of De-Ox-It ( "a little dab'll do ya") and
a quarter-turn of the connector mounting screws-
 loose, then tighten- and no more crummy ground.

Also, this one had the "riveted tube pin" problem.
A drop of De-Ox-It on each tube pin rivet, insert
the
tube and work it gently back-and-forth to flex the
rivet connections, and the transmitter is now
working.

GL OM ES 73 DE Dave AB5S
